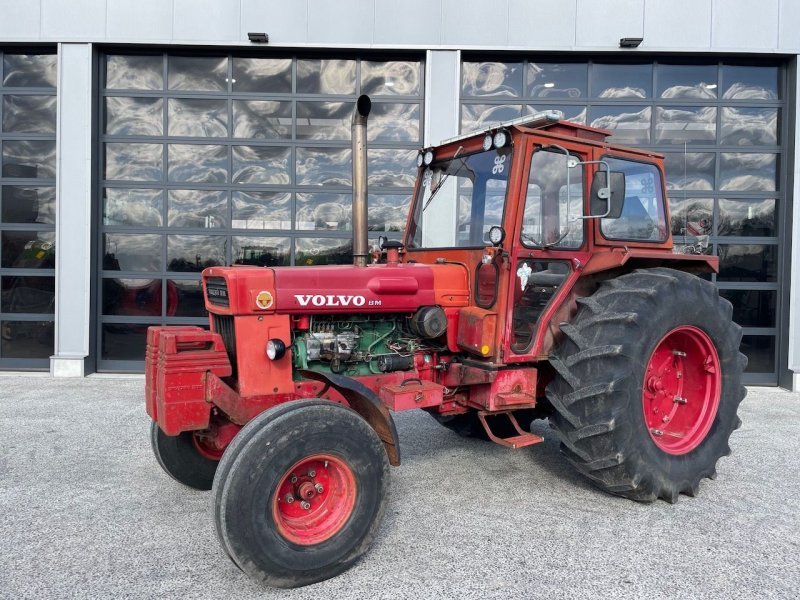

Bm Volvo T 800 – specifications
Built: 1966–1978 · Series: Other models
The Pozostałe modele series from Bm Volvo includes the T 800. Production: 1966–1978. The engine delivers 96 hp (70.6 kW), has 6 cylinders, with a displacement of 5,130 cm³. Rated speed is 2,300 rpm. The machine is 3,925 mm long, 2,060 mm wide and 2,570 mm high. The unladen weight is 4,260 kg. The wheelbase measures 2,651 mm. Ground clearance is 470 mm. Top speed is 30 km/h. Transmission: 8 V/2 R. The engine is water-cooled. Tyres: front 7.50-18 ASF, rear 18.4-34 AS. The fuel is diesel. The bore measures 95.25 mm. Construction: frame construction. Rated output across the Bm Volvo range ranges from 42.5 to 96 hp; the T 800 sits at the top of that range with 96 hp. Its immediate neighbours are the T 650 below it with 75.9 hp. Rated output across the Bm Volvo range ranges from 31.3 to 70.6 kW; here the T 800 sits at the top of that range with 70.6 kW. 5 Bm Volvo models are on record.
Data for the version built 1966–1978 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1966
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
BM Volvo – other models: the collective page of the transitional period from Bolinder-Munktell to Volvo, from the BM 400 to the T 800, 31 to 71 kW
This page gathers the Bolinder-Munktell and early Volvo tractors that the register carries under the name BM Volvo – the designation used during the transitional period when Volvo gradually took over the Swedish brand Bolinder-Munktell. From the BM types to the T models such as the T 430, T 600 Boxer, T 650 and T 800, the names reflect the shift from an independent brand to Volvo's farm-equipment division.
Read on 3 more paragraphs
The register lists here 5 versions with 31.3 to 70.6 kW from three- to six-cylinder engines of 2,500 to 5,130 cm³ displacement, torque from 167 to 258 Nm at 1,950 to 2,300 rpm, unladen weights from 2,398 to 4,260 kg, lengths from 3,300 to 4,030 mm and widths from 1,760 to 2,060 mm, and heights from 2,340 to 2,650 mm – all with diesel engines.
These transitional models stood on Swedish farms between the old Bolinder-Munktell era and the more modern Volvo BM tractors and covered a broad power range, from smaller yard tractors to bigger field tractors, before the brand later merged with the Finnish maker Valmet, laying the ground for today's Valtra.
Used, these models call for checking engine condition and the cooling system, clutch and transmission, hydraulics and PTO, and the condition of sheet metal and tyres; electrics and the tightness of the fuel system are also worth checking. Parts are today offered mainly by Swedish and Nordic vintage-tractor specialists.
Sources: SpecCodex register, model data: BM Volvo (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 96 hp (70.6 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,130 cm³correct |
| Bore | 95.25 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,925 mmcorrect |
|---|---|
| Width | 2,060 mmcorrect |
| Height | 2,570 mmcorrect |
| Wheelbase | 2,651 mmcorrect |
| Ground clearance | 470 mmcorrect |
| Unladen weight | 4,260 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 Rcorrect |
| Front tyres | 7.50-18 ASFcorrect |
| Rear tyres | 18.4-34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.6 kW/t (71 kW / 4.3 t)
Power class: Universal (40–100 hp)
Stronger than 64% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
