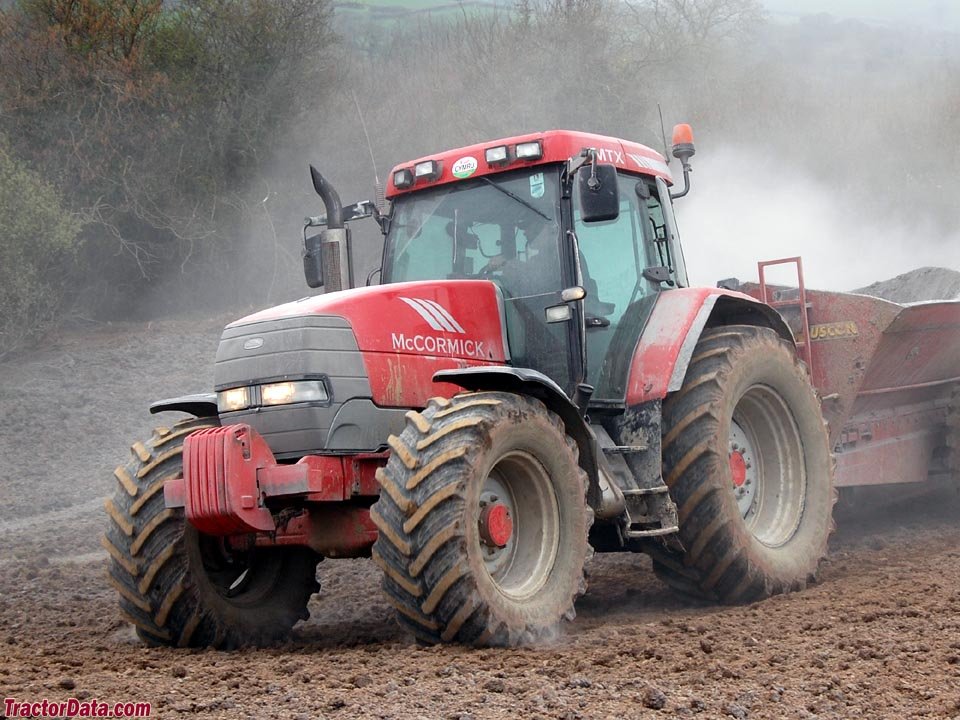

McCormick MTX135 – specifications
Built: 2007 · Series: Other models
Data for the version built 2007 · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The McCormick MTX135 is a tractor from the MTX series, launched in 2007. Positioned in the mid-power segment, this model sits between lighter and heavier tractors. The design aims for a balanced compromise between traction and handling, with the engine's six cylinders ensuring smooth operation. The vehicle is suitable for a wide range of tasks in the field and in the barn, with its compact dimensions allowing for use in various environments.
With an output of 133 hp and a displacement of 6,728 cm³, the MTX135 provides sufficient power for demanding field work. The curb weight of 6,000 kg, combined with a gross vehicle weight of 9,500 kg, ensures good traction without generating excessive ground pressure. The 16/12 transmission, featuring sixteen forward and twelve reverse gears, allows for fine speed adjustment to suit soil conditions and attached implements. A length of 4,984 mm and a width of 2,300 mm ensure stable road handling while maintaining good visibility.
Within the series, the MTX135 occupies a central position defined by its specific power rating. The gear count of sixteen forward and twelve reverse enables precise work at low speeds, which is particularly advantageous for crop protection or sowing. The wheelbase of 2,723 mm contributes to stability, while the height of 2,910 mm accounts for clearance requirements in barns. This configuration makes the tractor a suitable tool for operations requiring high traction at moderate weight.
McCormick – from a Chicago Harvester Works to an Italian Tractor Maker
The McCormick Harvesting Machine Company built reapers in Chicago from 1847. In 1902 it merged into the newly formed International Harvester, alongside Deering and three smaller manufacturers. Tractors were first sold as McCormick-Deering, later simply as McCormick in Europe, while in the US they were renamed International. One example is the England-built diesel B-414 (1961–1966), successor to the B-275, with a larger bore and, from 1962, also a petrol version. In 1985, International Harvester sold its farm-equipment division; since 2007 McCormick has been built as an independent brand in Fabbrico, Italy. Listed in the register: the B-414 and XTX185.
Sources: Wikipedia – McCormick Tractors, Wikipedia – International Harvester, TractorData – International Harvester B-414
Technical data
Engine
| Power | 133 hp (96 kW)correct |
|---|---|
| Cylinders | 6correct |
| Displacement | 6,728 cm³correct |
Dimensions and weights
| Length | 4,984 mmcorrect |
|---|---|
| Width | 2,300 mmcorrect |
| Height | 2,910 mmcorrect |
| Wheelbase | 2,723 mmcorrect |
| Unladen weight | 6,000 kgcorrect |
| Gross vehicle weight | 9,500 kgcorrect |
Drivetrain and chassis
| Gearbox | 16/12-Getriebecorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 12correct |
Where this model stands
Power-to-weight ratio: 16 kW/t (96 kW / 6 t)
Power class: Large (100–180 hp)
Stronger than 77% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the McCormick MTX135 have?
The McCormick MTX135 delivers 133 hp.
How much does the McCormick MTX135 weigh?
The unladen weight is 6,000 kg.
What is the gross vehicle weight of the McCormick MTX135?
9,500 kg.
What engine does the McCormick MTX135 have?
6 cylinders, 6,728 cm³ displacement.
What are the dimensions of the McCormick MTX135?
4,984 mm × 2,300 mm × 2,910 mm.
When was the McCormick MTX135 built?
Production years: 2007.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
