Massey Ferguson 550 – specifications
Built: 1977 · Series: Other models
Data for the version built 1977 · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1977

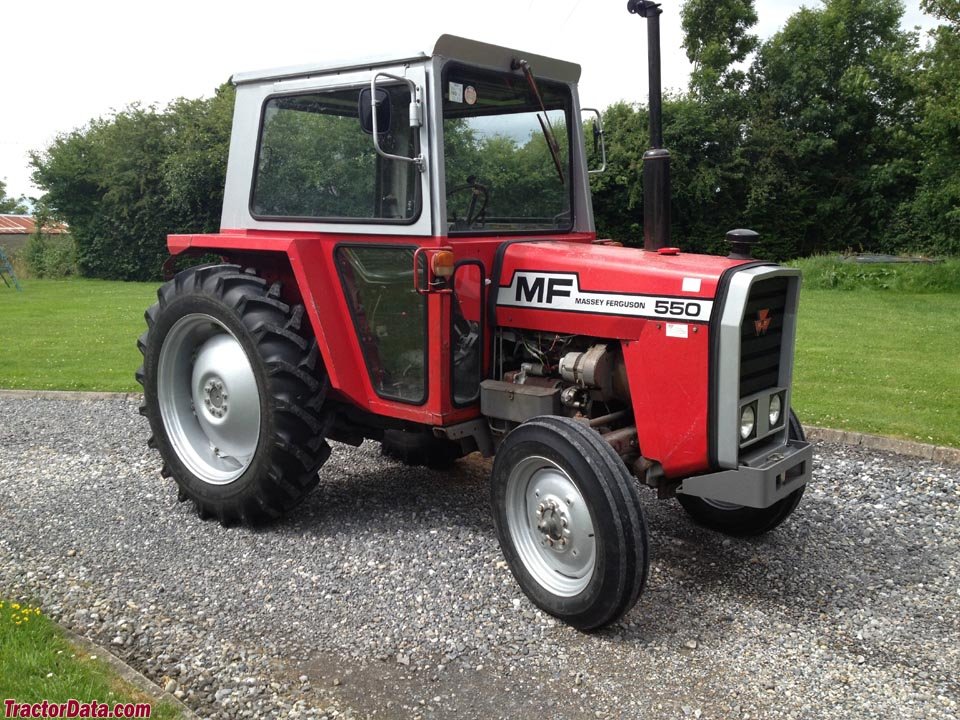

The Massey Ferguson 550 is a compact tractor from the group of agricultural tractors, launched in 1977. As a representative of its series, the model is positioned in the lower power range and is intended for tasks that do not require high traction force. The design follows the classic layout of a three-cylinder tractor with rear-wheel drive and is engineered for simple maintenance and manageable operating costs.
The tractor is powered by a three-cylinder engine with a displacement of 2,500 cm³, delivering 47 hp (34 kW) at a rated speed of 2,250 rpm. The maximum torque of 176.8 Nm ensures solid power delivery in the lower speed range, which is sufficient for work with light implements or in barn areas. The transmission offers a choice of eight or twelve forward gears, with the top speed limited to 25 km/h. With a curb weight of 2,085 kg and a length of 3,560 mm, the vehicle remains maneuverable for tight yard areas. The fuel tank holds 67.3 l, which, given the low power consumption, allows for long working intervals without refueling. The Category I/II three-point hitch enables the use of common smaller implements.
Within the series, the Massey Ferguson 550 occupies a specific position in the segment of lighter tractors. It forms the basis for applications where low power and low weight are the primary considerations. The available gear variants allow adaptation to different speed requirements, while the compact dimensions facilitate operation in confined environments.
Massey Ferguson – other models: collective page of tractors outside the named ranges, from the 100 series to the 8000 series, 22 to 216 kW, Perkins and other diesel engines
This page gathers the Massey Ferguson tractors the register could not assign to a named range, from compact four-cylinder models to large four-wheel-drive tractors of the 8000 class. Massey Ferguson was formed in 1953 from the merger of Massey-Harris with Harry Ferguson's tractor firm and has belonged to AGCO since 1994. The type logic changed several times: three-digit types order size in ascending order, four-digit ranges such as the 4245 or 6480 give the range in the thousands digit and the model in the remaining digits, and the 4X4 suffix marks four-wheel drive. The entry TE-A-20 belongs to the licence-built Ferguson TE-20 from the transitional years after the merger.
Read on 3 more paragraphs
The register lists here 40 versions with 22 to 216 kW from three- to eight-cylinder engines of 1,750 to 10,500 cm³, unladen weights of 1,100 to 9,200 kg, gross weights up to 13,180 kg, lengths of 2,769 to 5,200 mm, widths of 1,500 to 2,720 mm and heights up to 3,200 mm; torque ranges from 176.8 to 593 Nm at rated speeds of 1,600 to 2,250 rpm.
By unit numbers Massey Ferguson is one of the world's best-selling tractor brands, with strongholds in Britain, France and Scandinavia; the models listed here span the full range from yard tractor to large field tractor.
When buying used, on the smaller model years the radiator, head gasket and hydraulic pump matter, on the large 4x4 models the transfer case, front axle and electronics; rust on mudguards and steps is common on older models. Parts run through AGCO and Perkins as well as a broad independent market.
Sources: SpecCodex register, model data: Massey Ferguson (weitere Modelle), Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Power | 47 hp (34 kW)correct |
|---|---|
| Rated speed | 2,250 rpmcorrect |
| Torque | 176.8 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 2,500 cm³correct |
Dimensions and weights
| Length | 3,560 mmcorrect |
|---|---|
| Width | 1,640 mmcorrect |
| Height | 2,360 mmcorrect |
| Wheelbase | 2,083 mmcorrect |
| Unladen weight | 2,085 kgcorrect |
Drivetrain and chassis
| Gearbox | 8V/2R or 12V/4Rcorrect |
|---|---|
| Gears | 8correct |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 67.3 lcorrect |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.3 kW/t (34 kW / 2.1 t)
Power class: Universal (40–100 hp)
Stronger than 30% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Massey Ferguson 550 have?
The Massey Ferguson 550 delivers 47 hp.
How much does the Massey Ferguson 550 weigh?
The unladen weight is 2,085 kg.
What engine does the Massey Ferguson 550 have?
3 cylinders, 2,500 cm³ displacement.
How fast does the Massey Ferguson 550 go?
Top speed is 25 km/h.
What are the dimensions of the Massey Ferguson 550?
3,560 mm × 1,640 mm × 2,360 mm.
When was the Massey Ferguson 550 built?
Production years: 1977.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
