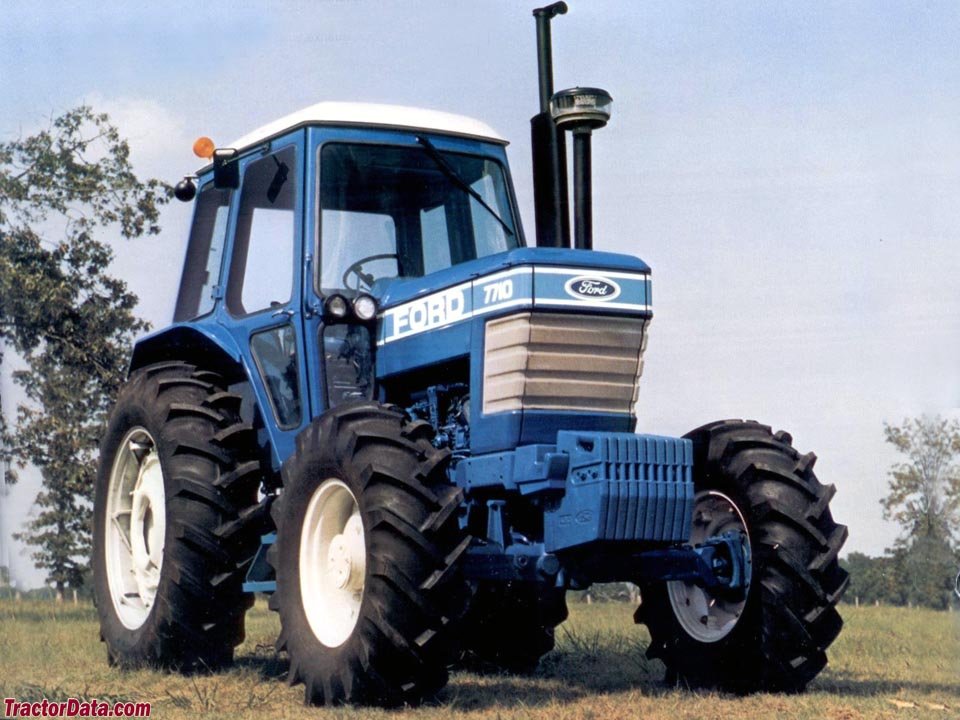

Ford 7710-4X4/2480 – specifications
Built: 1984 · Series: Other models
Data for the version built 1984 · Data origin: Official register · sources
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Ford 7710-4X4/2480 is a tractor from 1984 belonging to the category of agricultural utility vehicles. As a model in the Ford tractor series, it was produced in this specific model year and is aimed at users requiring a machine with four-wheel drive and a solid basic configuration for field operations. The model designation indicates the specific configuration used in this series.
The technical equipment includes a four-cylinder engine with a displacement of 4,380 cm³, delivering an output of 72 kW. This power level enables the pulling of mounted implements and the handling of typical field tasks under medium load conditions. The curb weight of 4,200 kg ensures good traction, while the permissible gross weight of 8,080 kg defines the possible payload. With a length of 4,130 mm and a width of 2,150 mm, the tractor falls within a range that ensures good stability on uneven terrain. The 16 available gears provide sufficient speed spread to select appropriate engine speeds for both slow soil cultivation work and transport.
Within the available data on the series, no direct rankings or comparative values with other models can be derived. Therefore, the focus is on the typical suitability of this machine group. Tractors of this power class and size are frequently used for general farm work, basic soil cultivation, and operation with various mounted implements. The combination of four-wheel drive and the specified weight range makes the machine suitable for use on different soil conditions, while the number of gears allows for flexible adaptation to the respective working speed.
Ford – other models: the collective page of tractors outside the named ranges, from the Thousand series through the 10 series to the articulated tractors with Cummins and Caterpillar engines, 10 to 300 kW
This page gathers the Ford tractors the register could not assign to a named range – from small utility tractors of the North American and British plants to the heavy articulated tractors of the Versatile brand, taken over by Ford in the late 1980s. Ford had built farm tractors since 1917, first in Dearborn, from the 1930s also in Dagenham, England; the post-war 600 to 900 models led in 1965 into the Thousand series (2000, 3000, 4000, 5000), replaced in 1975 by the generation with a leading 0. From 1981 came the 10 series (2110 to 8210), in which the first two digits give the size and the last the generation; SU marks the narrow-track Utility version. The big articulated tractors, formerly built under the Versatile name in Winnipeg, ran from 1987 as the Ford FW with Cummins and Caterpillar engines; after the merger with New Holland in 1991 the independent Ford range ended.
Read on 3 more paragraphs
The register lists here 237 versions with 9.7 to 300 kW from two- to eight-cylinders of 1,390 to 14,801 cm³, PTO outputs up to 163 hp, unladen weights from 1,061 to 14,200 kg, gross weights from 2,280 to 11,400 kg, lengths from 2,410 to 7,600 mm and widths from 1,070 to 2,845 mm; the engines are mostly Ford's own, Cummins and Caterpillar in the big articulated tractors.
For decades Ford was, alongside International Harvester, Massey Ferguson and John Deere, one of the best-selling tractor brands of North America and Europe, focused on utility tractors for family farms; the FW-range articulated tractors competed in the top power segment with Steiger and Case IH.
On used tractors, engine condition, clutch and gearbox synchros count on the older ranges, hydraulics and electrics on the 10 series, and on the articulated tractors operating hours, condition of the four-wheel drive and tyres, and parts supply for the Cummins or Caterpillar engines, which today runs outside the Ford network.
Sources: SpecCodex register, model data: Ford (weitere Modelle), New Holland (Rechtsnachfolger von Ford New Holland)
Technical data
Engine
| Power | 72 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 4,380 cm³correct |
Dimensions and weights
| Length | 4,130 mmcorrect |
|---|---|
| Width | 2,150 mmcorrect |
| Unladen weight | 4,200 kgcorrect |
| Gross vehicle weight | 8,080 kgcorrect |
Drivetrain and chassis
| Gears | 16correct |
|---|
Where this model stands
Power-to-weight ratio: 17.1 kW/t (72 kW / 4.2 t)
Power class: Universal (40–100 hp)
Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford 7710-4X4/2480 have?
The Ford 7710-4X4/2480 delivers 72 kW.
How much does the Ford 7710-4X4/2480 weigh?
The unladen weight is 4,200 kg.
What is the gross vehicle weight of the Ford 7710-4X4/2480?
8,080 kg.
What engine does the Ford 7710-4X4/2480 have?
4 cylinders, 4,380 cm³ displacement.
What are the dimensions of the Ford 7710-4X4/2480?
4,130 mm × 2,150 mm.
When was the Ford 7710-4X4/2480 built?
Production years: 1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
