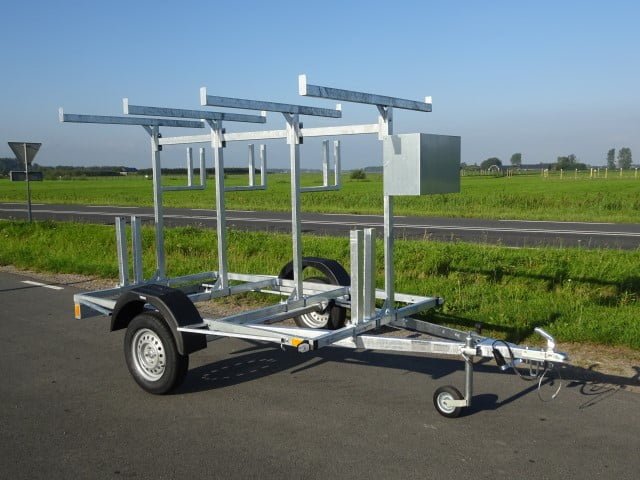

Titan Jelsum EA 3000
Built: 1998 · Series: Trailers up to 3.5 t (Class O2)
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Titan Jelsum trailers up to 3.5 t – class O2: Dutch trailers from Jelsum in Friesland in the register, type codes such as EA 1300 and PTR 27, weights from 300 to 3,280 kg
Titan Jelsum is a Dutch trailer maker named after the village of Jelsum in the province of Friesland. Model names in the register are mostly letter codes such as EA, KT or PTR followed by a number for size, for example EA 1300 or PTR 27. In the O2 vehicle class – trailers with a gross weight of 0.75 to 3.5 tonnes – the range spans from light to heavy versions close to the weight limit.
Read on 3 more paragraphs
The register lists 200 versions with unladen weights from 300 to 3,280 kg and gross weights from 1,000 to 3,500 kg. Lengths range from 3,960 to 11,940 mm, widths from 1,310 to 2,550 mm. From 750 kg unladen weight, Class O2 requires its own overrun brake; below that limit the unbraked version is sufficient.
As a Frisian manufacturer, Titan Jelsum is rooted mainly in the Dutch market for transport trailers, with a range spanning from light trailers to sturdy versions for heavy loads. The large number of letter codes recorded in the register points to a broad modular system of axles, drawbar shapes and load beds, from which customers could pick the version that suited their particular use.
When buying used, check the condition of the floor and frame for rust, the overrun brake mechanism with its linkage, axles and suspension, the electrics and lighting, and tyre age. On the heavy versions close to the weight limit, it is also worth checking welds and the load bed for deformation.
Sources: SpecCodex register, model data: Titan Jelsum, Zulassungsdaten RDW (Niederlande)
Technical data
Dimensions and weights
| Width | 1,700 mmcorrect |
|---|---|
| Unladen weight | 570 kgcorrect |
| Gross vehicle weight | 3,000 kgcorrect |
Drivetrain and chassis
| Wheels | 2correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Titan Jelsum EA 3000 weigh?
The unladen weight is 570 kg.
What is the gross vehicle weight of the Titan Jelsum EA 3000?
3,000 kg.
Up to what speed is the Titan Jelsum EA 3000 approved?
Approved up to 100 km/h.
When was the Titan Jelsum EA 3000 built?
Production years: 1998.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
