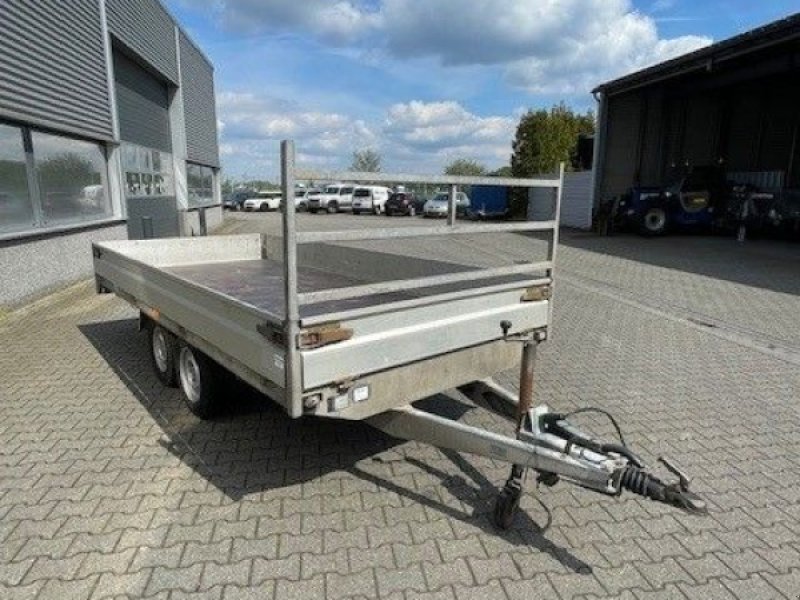

Steinbacher MBT 2700W
Built: 2014–2015 · Series: Other models
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Steinbacher – other models: tipping and construction-site trailers of the MB/MBT and K series, 256 to 1,800 kg kerb weight, gross weights up to 9,900 kg, long-load versions up to 10.65 m
Steinbacher builds construction and tipping trailers; this collective page groups models outside the named series. The model list is built around the MB and MBT types, supplemented by shorter K and BT designations; the figures attached to the names, as in MBT 2.2A, clearly follow the payload or weight class in tonnes. All chassis are consistently built as tipping trailers with hydraulic tipping gear, side panels and an overrun brake, of the kind used in construction and groundwork for bulk and building materials.
Read on 3 more paragraphs
The register lists 62 versions with kerb weights from 256 to 1,800 kg and gross weights from 900 to 9,900 kg. Widths run from 1,800 to 2,550 mm; 21 models additionally carry lengths from 6,920 to 10,650 mm — well beyond typical site tippers, pointing to a few long-load or transport versions in the range.
Trailers of this size are common on building sites and farms, moving rubble, excavated soil or materials between site and depot. The spread from small single-axle tippers to larger tandem versions makes the range a modular system for varying payloads, typical of many central European trailer builders.
When buying used, check the tipping mechanism (hydraulic ram, seals, load-bed wear), the chassis for rust at weld seams, and the side panels for distortion. The overrun brake and linings should be tested, along with the lighting and plug connection. Spare parts for axles, tyres and tipping rams are generally available through independent trailer-parts suppliers.
Sources: Kennwerte der Modelle Steinbacher (weitere Modelle)
Technical data
Dimensions and weights
| Length | 8,850 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,930 mmcorrect |
| Unladen weight | 558 kgcorrect |
| Gross vehicle weight | 2,700 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 130 km/hcorrect |
Frequently asked questions
How much does the Steinbacher MBT 2700W weigh?
The unladen weight is 558 kg.
What is the gross vehicle weight of the Steinbacher MBT 2700W?
2,700 kg.
Up to what speed is the Steinbacher MBT 2700W approved?
Approved up to 130 km/h.
What are the dimensions of the Steinbacher MBT 2700W?
8,850 mm × 2,550 mm.
When was the Steinbacher MBT 2700W built?
Production years: 2014–2015.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
