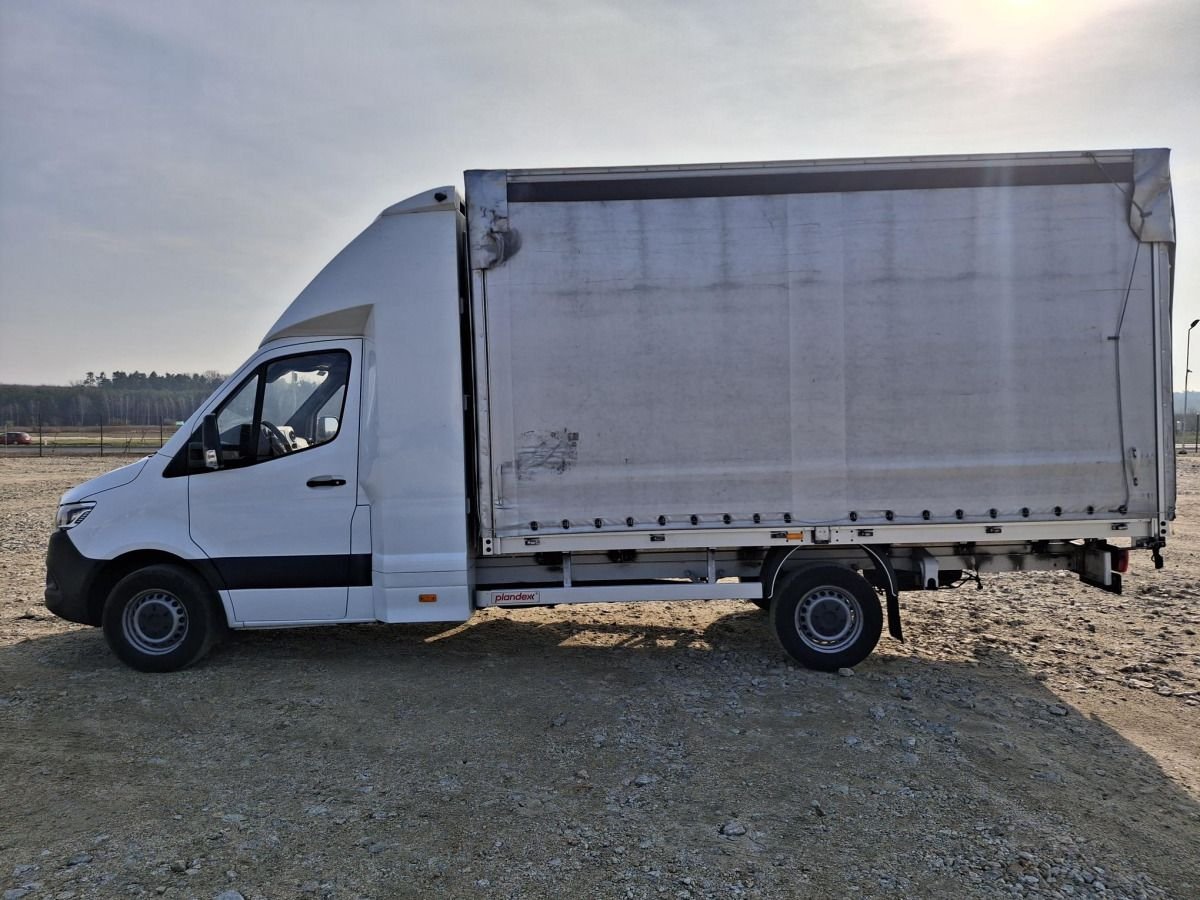

Plandex SPRINTER/Z – specifications
Built: 2021 · Series: Other models
Data for the version built 2021 · Data origin: Official register · sources
More machines from model year 2021
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Plandex – other models: bodies on the Sprinter chassis between the 35S18 and the Sprinter/Z, 4-cylinder diesels from 2,143 to 2,998 cm³, gross weight 3.5 tonnes
Plandex builds bodies on the Mercedes-Benz Sprinter chassis, as the model names Sprinter/Z and Plandex Sprinter/Z directly show. This page gathers versions the register could not assign to a named range, from the 35S18 to the Sprinter/Z; the number combination 35S18 follows the logic usual for Sprinter-based bodies, combining gross weight and wheelbase.
Read on 4 more paragraphs
The register lists here 3 versions with 4-cylinder diesel engines from 2,143 to 2,998 cm³, unladen weights from 2,260 to 2,675 kg, a gross weight fixed throughout at 3,500 kg and widths from 2,100 to 2,210 mm.
Bodies on the Sprinter chassis serve a wide field from box bodies to refrigerated vehicles to special purposes, because the Sprinter, as the most common base vehicle of this weight class in Europe, is favoured by numerous body builders.
Unlike the front-wheel-drive vans from the Sevel partnership, such as the Peugeot Boxer or Citroën Jumper, the Sprinter is rear-wheel drive; that allows higher rear-axle loads and thus heavier bodies, but comes with a propshaft tunnel in the load floor.
On a used body of this kind, the condition of the Sprinter chassis itself with its known weak points at the EGR valve and turbocharger, rust at the mounting points between body and frame, the tightness of the box body, and brakes and tyres under full payload all count.
Sources: SpecCodex register, model data: Plandex
Technical data
Engine
| Cylinders | 4correct |
|---|---|
| Displacement | 2,143 cm³correct |
Dimensions and weights
| Width | 2,210 mmcorrect |
|---|---|
| Wheelbase | 4,330 mmcorrect |
| Unladen weight | 2,675 kg (example vehicle as registered, incl. body – not a model value)correct |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 152 km/hcorrect |
Frequently asked questions
What is the gross vehicle weight of the Plandex SPRINTER/Z?
3,500 kg.
What engine does the Plandex SPRINTER/Z have?
4 cylinders, 2,143 cm³ displacement.
When was the Plandex SPRINTER/Z built?
Production years: 2021.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
