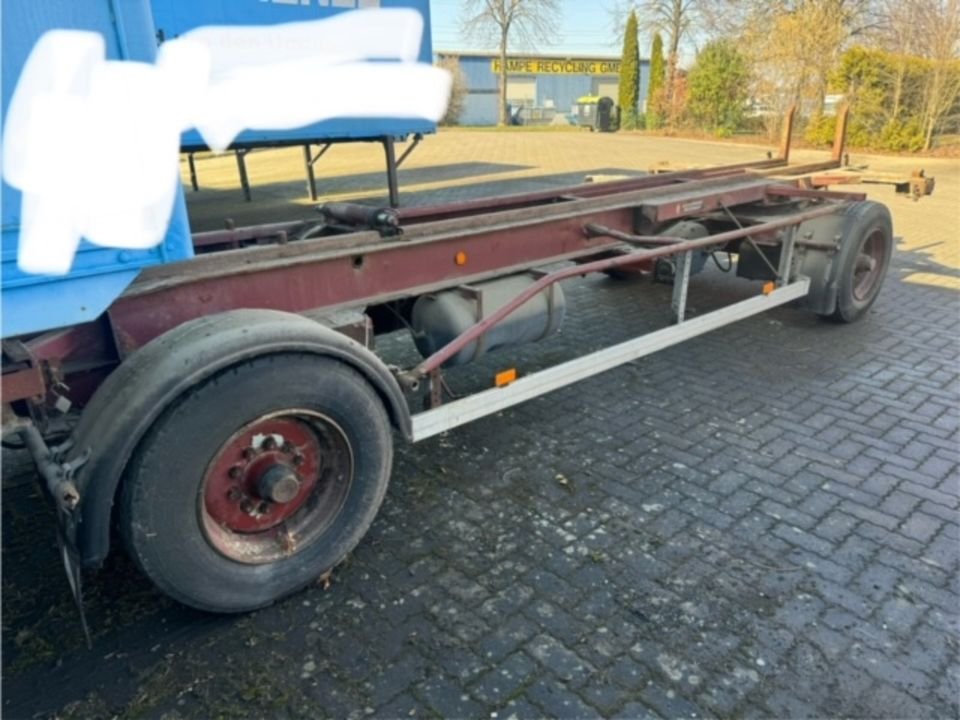

Ackermann Fruehauf PWS 20/12,4 E
Built: 1989 · Series: Other models
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ackermann Fruehauf – other models: the collective page of trailers outside the named ranges, types such as AA, PWS, VIS and WG-3780, 8 to 32 tonnes gross weight, 8.65 to 12.75 metres in length
This page gathers the Ackermann Fruehauf trailers the register could not assign to a named range. Ackermann Fruehauf emerged from the co-operation of a German trailer builder with the American semi-trailer pioneer Fruehauf and built flatbed, platform and box trailers for long-haul transport. Type designations such as AA 18/7.2 TZL, PWS 20/12.4 E or VIS 20 13 6 EL combine letters for body and equipment variant with numbers for weight class and length, as was common among trailer builders of the post-war decades.
Read on 3 more paragraphs
The register lists here 20 versions with unladen weights from 2,460 to 10,600 kg, gross weights from 8,000 to 32,000 kg, lengths from 8,650 to 12,750 mm and widths from 2,330 to 2,600 mm.
Trailers of this weight class ran in drawbar combinations behind tractor units or as volume and cargo trailers in general and furniture haulage, where they doubled the load capacity of a lorry body; competitors included Kögel, Krone and Schmitz Cargobull. The axles of these trailers follow the European standard dimension, with tandem axle sets and drum or disc brakes, and the drawbar eye follows the DIN standard, allowing the trailers to be combined with most tractor units.
On used examples, the condition of chassis and axles, drawbar eye and overrun brake, sideboards or curtain frame and a complete brake-test history count; parts for the older model years now come only through specialist trailer workshops.
Sources: Kennwerte der Modelle Ackermann Fruehauf (weitere Modelle)
Technical data
Dimensions and weights
| Length | 12,500 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 8,350 mmcorrect |
| Unladen weight | 8,730 kgcorrect |
| Gross vehicle weight | 28,800 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Ackermann Fruehauf PWS 20/12,4 E weigh?
The unladen weight is 8,730 kg.
What is the gross vehicle weight of the Ackermann Fruehauf PWS 20/12,4 E?
28,800 kg.
Up to what speed is the Ackermann Fruehauf PWS 20/12,4 E approved?
Approved up to 100 km/h.
What are the dimensions of the Ackermann Fruehauf PWS 20/12,4 E?
12,500 mm × 2,500 mm.
When was the Ackermann Fruehauf PWS 20/12,4 E built?
Production years: 1989.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
