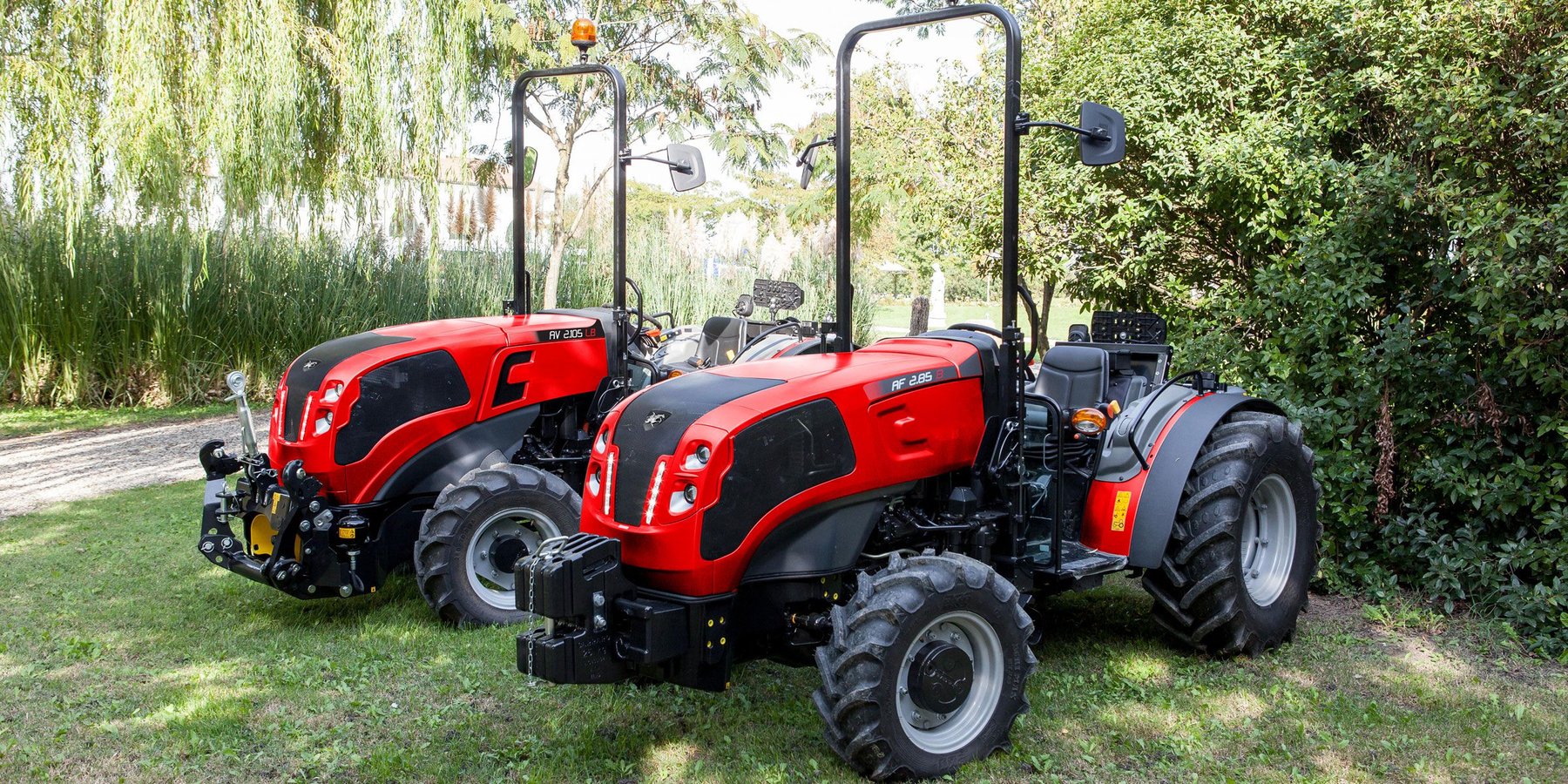

Antonio Carraro 735/R – specifications
Series: Tigrone
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Antonio Carraro 735/R belongs to the Tigrone series produced by the Italian manufacturer Antonio Carraro. These tractors are designed as narrow-track, all-terrain specialty tractors specifically developed for use in vineyards, orchards, and on slopes. The design places great emphasis on compact dimensions and a low center of gravity to ensure safe maneuvering in narrow rows and on uneven terrain.
The 735/R is powered by a two-cylinder diesel engine with a displacement of 1,337 cm³, delivering an output of 30 hp (22 kW). With an unladen weight of 1,190 kg and a maximum width of 1,087 mm, the tractor is designed for narrow passages. The length of 2,000 mm and a wheelbase of 1,255 mm support agility in the field. The top speed of 18.5 km/h is tailored to the requirements of slow field work and transport between plots.
Within the Tigrone series, the 735/R ranks 5th out of 5 models with specified power output, at 22 kW. The next larger model in this series is the Tigrone 6000, which offers higher power at 30.2 kW. The power range of the series extends from 22 to 30.2 kW. As an entry-level model in this power class, the 735/R is suitable for light to medium work in specialty crops, where small dimensions and moderate power requirements are the primary considerations.
Antonio Carraro Tigrone – other models: the collective page of narrow-track specialist tractors, from the Tigrone 735 to the Tigrone SX 8400 and TC 8400 F, 22 kW / 41 hp, two-cylinder of 1,337 cm³
This page gathers the Antonio Carraro tractors of the Tigrone range the register could not assign to a named version. Antonio Carraro, based in Campodarsego near Padua, specialises in narrow-track, all-terrain specialist tractors for vineyards, orchards and slopes, where compact dimensions and a low centre of gravity matter more than engine power; the Tigrone range spans numerous equipment variants, from the basic version to the cabbed version with the TC and TN suffix.
Read on 3 more paragraphs
The register lists here 22 versions with diesel engines; recorded figures include 22 kW, or 41 hp, from a two-cylinder engine of 1,337 cm³, an unladen weight of 1,190 kg, a length of 2,000 mm, a maximum width of 1,087 mm and a height to the steering wheel of 1,230 mm.
Narrow-track tractors of this kind are as common on Italian, Spanish and South Tyrolean slopes as in professional fruit growing, where their narrow width allows them to run between tight rows of trees and vines; four-wheel steering and articulation, offered on some Tigrone variants, further improve manoeuvrability.
Buyers of used units should check the steering knuckles and linkage for play, as well as the hydraulics and PTO and the condition of tyres and brakes on machines used on slopes; on the compact cabs it is worth checking seals and ventilation, spares run through the Antonio Carraro dealer network.
Sources: SpecCodex register, model data: Antonio Carraro Tigrone, Antonio Carraro (manufacturer)
Technical data
Engine
| Power | 30 hp (22 kW)correct |
|---|---|
| Cylinders | 2correct |
| Displacement | 1,337 cm³correct |
Dimensions and weights
| Length | 2,000 mmcorrect |
|---|---|
| Width | 1,087 mm (maximum)correct |
| Height | 1,230 mm (to steering wheel)correct |
| Wheelbase | 1,255 mmcorrect |
| Unladen weight | 1,190 kgcorrect |
Drivetrain and chassis
| Top speed | 18.5 km/hcorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.5 kW/t (22 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 16% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Antonio Carraro 735/R have?
The Antonio Carraro 735/R delivers 30 hp.
How much does the Antonio Carraro 735/R weigh?
The unladen weight is 1,190 kg.
What engine does the Antonio Carraro 735/R have?
2 cylinders, 1,337 cm³ displacement.
How fast does the Antonio Carraro 735/R go?
Top speed is 18.5 km/h.
What are the dimensions of the Antonio Carraro 735/R?
2,000 mm × 1,087 mm × 1,230 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
