Alspaw ESTRADA MOBILNA
Built: 2011-2023 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

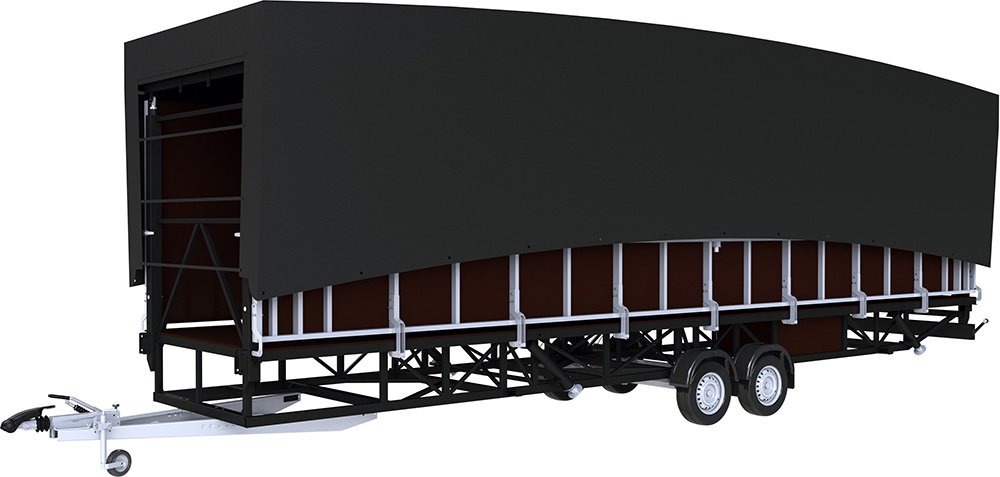

Alspaw ESTRADA MOBILNA – mobile stage on a class O2 trailer chassis, 3,500 kg gross weight, 11,760 mm length, Netherlands
The model name ESTRADA MOBILNA comes from Polish: estrada means a stage or performance platform, mobilna means mobile – the model is thus a mobile stage on a trailer chassis. The trailer is registered in the Netherlands and was built between 2011 and 2023.
Read on 3 more paragraphs
At a gross weight of 3,500 kg, the mobile stage has an unladen weight of 3,200 kg, leaving only 300 kg of payload. This small margin makes sense for a mobile stage, since the stage structure itself accounts for the weight and little additional load is added. Length is 11,760 mm at a width of 2,470 mm, the wheelbase is 7,270 mm on six wheels, and the permitted top speed is 100 km/h.
At a gross weight of exactly 3,500 kg, the mobile stage sits at the upper limit of trailer class O2, usually built with an overrun brake. Six wheels on a 7,270 mm wheelbase spread the weight of the unfolded stage platform along the full length of the chassis. Towing with a category B licence, the combination of towing vehicle and trailer must not exceed the permitted gross combination weight, which at 3.5 tonnes is often already reached by light trucks or heavy vans.
When buying a used mobile stage, besides the chassis, axles and brake system, particular attention should go to the folding stage elements: hinges, locks and the flatness of the stage surface should be checked. Hydraulic or mechanical supports for setting up and folding away need checking too, as do lighting, railings and fall-protection fittings. Corrosion on the chassis and drawbar, and the condition of the overrun brake, complete the check.
Sources: SpecCodex-Register: Kennwerte des Modells Alspaw ESTRADA MOBILNA
Technical data
Dimensions and weights
| Length | 11,760 mmcorrect |
|---|---|
| Width | 2,470 mmcorrect |
| Wheelbase | 7,270 mmcorrect |
| Unladen weight | 3,200 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Alspaw ESTRADA MOBILNA weigh?
The unladen weight is 3,200 kg.
What is the gross vehicle weight of the Alspaw ESTRADA MOBILNA?
3,500 kg.
Up to what speed is the Alspaw ESTRADA MOBILNA approved?
Approved up to 100 km/h.
What are the dimensions of the Alspaw ESTRADA MOBILNA?
11,760 mm × 2,470 mm.
When was the Alspaw ESTRADA MOBILNA built?
Production years: 2011-2023.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
