Alpenland K 25
Built: 1950–1952 · Series: K
More machines from model year 1950
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

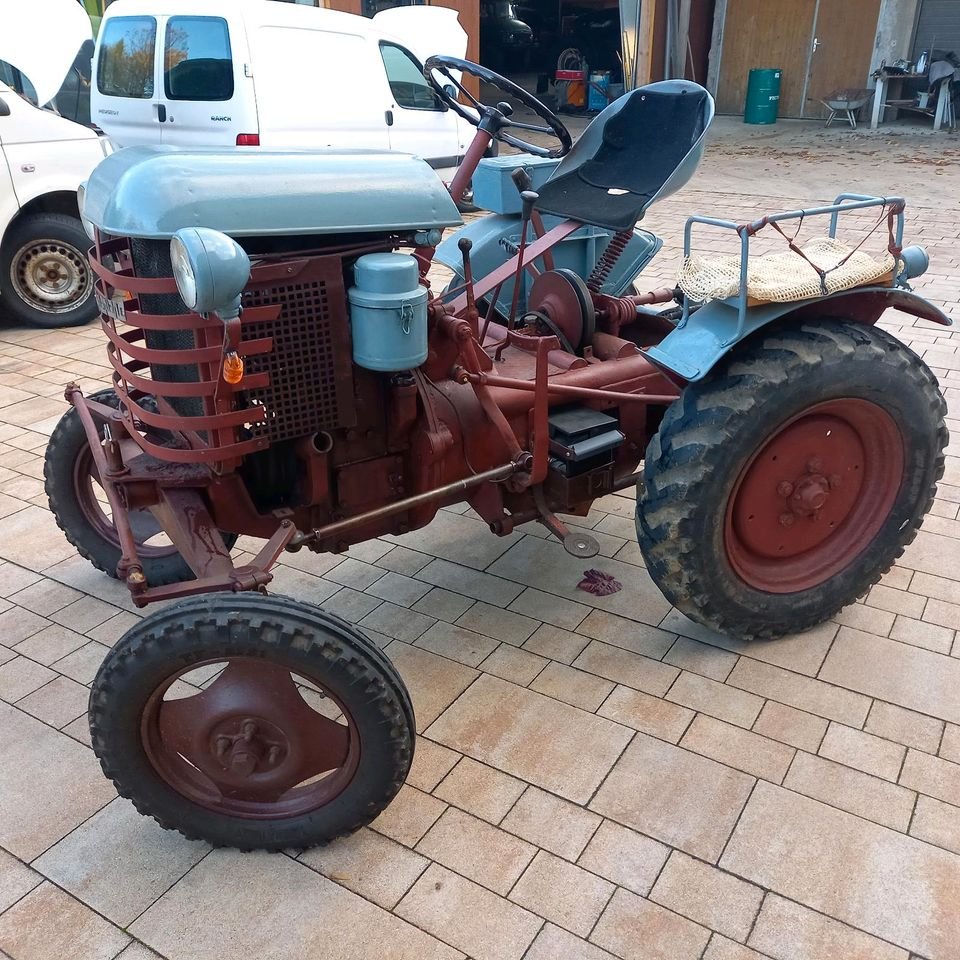

Alpenland K 25 – tractor of the K range (1950–1952): water-cooled twin-cylinder diesel with 2,356 cm³ displacement, 18.3 kW/25 hp and 1,450 kg unladen weight
The K range, with the model K 25, succeeded Alpenland's smaller GS range; it was built from 1950 to 1952 and, with a twin-cylinder engine, was a more powerful design than its predecessor. Like its smaller sister range, the K range relied on a robust, water-cooled engine and simple mechanics, but now with two cylinders for more pulling power and smoother running.
Read on 3 more paragraphs
The K 25 is powered by a water-cooled twin-cylinder diesel engine with 2,356 cm³ displacement, producing 18.3 kW or 25 hp at 1,500 rpm. The machine is 3,000 mm long, 1,600 mm wide and 1,550 mm high, has a wheelbase of 1,750 mm, weighs 1,450 kg and reaches 20 km/h.
At 20 km/h, the K 25 falls into driving licence category L. The twin-cylinder engine of 2.4 litres places the K 25 in the mid-range of early post-war tractors, clearly more powerful than pure single-cylinder small tractors of those years, yet still far from the later multi-cylinder standard tractors.
On a tractor as old as the K 25, over seventy years, check the cooling system and injection pump, the frame, mudguards and axles for corrosion, and the tightness of the mechanical steering; parts are now only available through collector circles. Besides the cooling system and injection pump, on a K 25 it is also worth checking the clutch and the front-axle bearings, which were put under particular strain over decades of use on uneven ground.
Sources: SpecCodex-Register: Kennwerte des Modells Alpenland K 25
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.3 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 2,356 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,000 mmcorrect |
|---|---|
| Width | 1,600 mmcorrect |
| Height | 1,550 mmcorrect |
| Wheelbase | 1,750 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 1,450 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5V / 1Rcorrect |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 5.00-16correct |
| Rear tyres | 9.00-24correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 12.6 kW/t (18 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Alpenland K 25 have?
The Alpenland K 25 delivers 25 hp.
How much does the Alpenland K 25 weigh?
The unladen weight is 1,450 kg.
What engine does the Alpenland K 25 have?
2 cylinders, 2,356 cm³ displacement, Diesel.
How fast does the Alpenland K 25 go?
Top speed is 20 km/h.
What are the dimensions of the Alpenland K 25?
3,000 mm × 1,600 mm × 1,550 mm.
When was the Alpenland K 25 built?
Production years: 1950–1952.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
