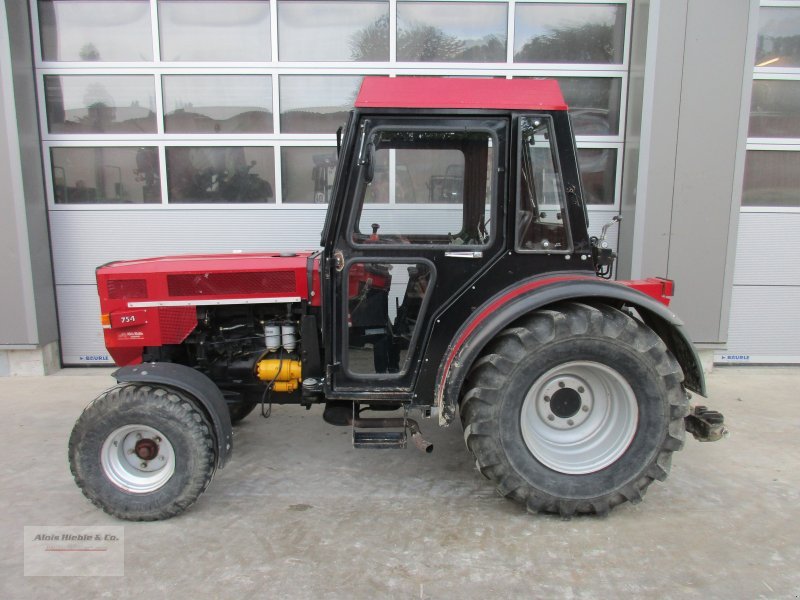

Alois Hieble 754
Built: until 2003 · Series: Bergmeister
More machines from model year 2003
Hieble Bergmeister 734 to 854 – the narrow-track tractors of the small Allgäu maker: the first digit as power step, JD and CP as engine variants, three- and four-cylinder diesels of 2.9 to 4.5 litres, 0.98 to 1.20 m wide
The Bergmeister is a small-series narrow-track tractor – built by Alois Hieble, one of the southern German farm-machinery builders who make tractors for hop gardens, vineyards and orchards where at about one metre wide no standard tractor fits any more and the big makers offer only a few models. The type logic: the three-digit number orders the power step – 734 and 754 about 72 to 75 hp, 824 and 854 about 80 to 82 hp – JD marks, by maker's logic, the version with John Deere engine, CP a further engine or equipment variant. The engines are bought-in three- and four-cylinder diesels of 2.9 to 4.5 litres at 2,200 to 2,400 rpm, as small makers source from John Deere, Perkins or Deutz; the rest of the machine – frame, four-wheel-drive axles, cab – is hand-built to customer order with track widths and mounting spaces to row width.
Read on 3 more paragraphs
The register lists 7 versions with 53 to 63 kW from three- and four-cylinders of 2,940 to 4,523 cm³, unladen weights from 2,060 to 2,350 kg, lengths from 3,170 to 3,320 mm, widths from 980 to 1,200 mm and heights from 2,180 to 2,300 mm.
The Bergmeister stands in a row with Krieger, Holder and Fendt's 200 V/F as the narrow-track tractor of the Hallertau and the wine regions; its argument is adaptation to the farm, its drawback the small production run.
On used tractors, operating hours, engine condition (parts through the engine maker), clutch and shuttle, four-wheel-drive axles and steering, PTO and hydraulics for sprayer and mulcher and parts supply for frame and cab, which depends on the maker, count.
Sources: SpecCodex register, model data: Hieble Bergmeister
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 75 hp (55 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,906 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,170 mmcorrect |
|---|---|
| Width | 980 mmcorrect |
| Height | 2,180 mmcorrect |
| Wheelbase | 2,100 mmcorrect |
| Ground clearance | 300 mmcorrect |
| Unladen weight | 2,200 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 8 vorwärts, 4 rückwärts; ab 1996 16 vorwärts, 8 rückwärtscorrect |
| Front tyres | 10.0/75-12, Allrad 7.50-18correct |
| Rear tyres | 14.5R20, Allrad 13.6/12-28correct |
| Top speed | 25 km/hcorrect |
Where this model stands
Power-to-weight ratio: 25 kW/t (55 kW / 2.2 t)
Power class: Universal (40–100 hp)
Stronger than 51% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Alois Hieble 754 have?
The Alois Hieble 754 delivers 75 hp.
How much does the Alois Hieble 754 weigh?
The unladen weight is 2,200 kg.
What engine does the Alois Hieble 754 have?
4 cylinders, 3,906 cm³ displacement, Diesel.
How fast does the Alois Hieble 754 go?
Top speed is 25 km/h.
What are the dimensions of the Alois Hieble 754?
3,170 mm × 980 mm × 2,180 mm.
When was the Alois Hieble 754 built?
Production years: ?–2003.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
