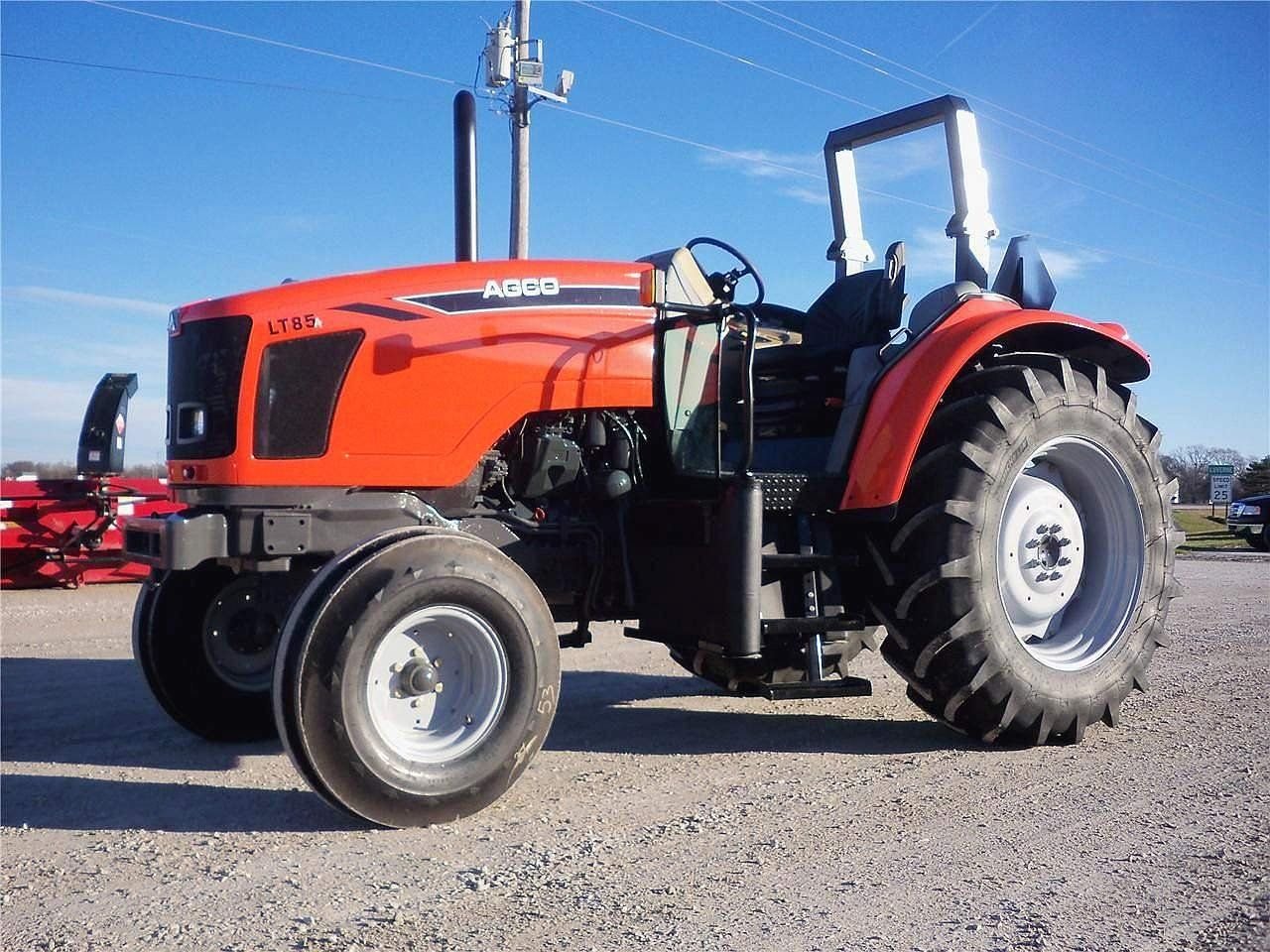

Allis Gleaner Corporation LT-85 A

Built: 2008–2010 · Series: LT/A-Serie

More machines from model year 2008

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the LT-85 A, Allis Gleaner Corporation offers a model from the LT/A series. Production: 2008–2010. The engine delivers 105 hp (77.2 kW), has 4 cylinders, with a displacement of 4,397 cm³. Torque is 501 Nm. Rated speed is 2,200 rpm. The machine is 4,369 mm long, 2,014 mm wide and 2,769 mm high. The unladen weight is 4,810 kg. The wheelbase measures 2,464 mm. Top speed is 40 km/h. Transmission: 16 V/16 R. The engine is water-cooled. Tyres: front 380/85 R 28 AS, rear 18.4 R 38 AS. The fuel is diesel. The bore measures 108 mm. The stroke is 120 mm. The compression ratio is 17.4:1. Maximum torque is reached at 1,100 rpm. Construction: unit construction (no separate frame). The LT/A-Serie series covers 4 models. Rated output within it ranges from 100 to 115 hp; the LT-85 A sits in the lower part of that range with 105 hp. Its immediate neighbours are the LT-75 A below it with 100 hp and the LT-90 A above it with 110 hp. Unladen weight within it ranges from 4,509 to 5,021 kg; here the LT-85 A sits in the middle of that range with 4,810 kg. 8 Allis Gleaner Corporation models across 2 series are on record.

Allis-Gleaner Corporation (AGCO) LT/A series – LT-75 A to LT-95 A: the stronger step above the LT series, 74 to 85 kW, up to 5 t

The LT/A series carried on the Allis-Gleaner Corporation (AGCO) mid-size utility-tractor class in a stronger-rated version: the LT-75 A, LT-85 A, LT-90 A and LT-95 A sit above the plain LT models in power. The Allis-Gleaner Corporation emerged in 1990 from the management buyout of the farm-equipment division of Klöckner-Humboldt-Deutz, previously Deutz-Allis, forming the foundation of today's AGCO group, headquartered in Duluth, Georgia.

Read on 3 more paragraphs

The register lists here 4 versions with 73.5 to 84.6 kW from four-cylinders of 4,397 cm³ displacement, torque from 391 to 501 Nm at 2,200 rpm, unladen weights from 4,509 to 5,021 kg, lengths from 4,204 to 4,369 mm, widths from 2,014 to 2,108 mm and heights from 2,769 to 2,802 mm – all with diesel engines.

With higher power and greater weight than the plain LT series, the LT/A series bridged the gap to the big DT class and targeted operations with elevated power needs while keeping compact dimensions, for instance for heavier tillage or bigger balers and forage wagons.

Used, the LT/A series calls for checking engine condition under higher sustained load, transmission and clutch, hydraulics and PTO for heavier mounted implements, and front axle and brakes; tyres and cab mounts are also worth a look. Spare parts run through the AGCO organisation.

Sources: SpecCodex register, model data: Allis-Gleaner Corporation LT/A-Serie, AGCO Corporation

Technical data

Engine

Fuel	dieselcorrect
Power	105 hp (77.2 kW)correct
Rated speed	2,200 rpmcorrect
Torque	501 Nmcorrect
Speed at max. torque	1,100 rpmcorrect
Cylinders	4correct
Displacement	4,397 cm³correct
Bore	108 mmcorrect
Stroke	120 mmcorrect
Compression ratio	17.4correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,369 mmcorrect
Width	2,014 mmcorrect
Height	2,769 mmcorrect
Wheelbase	2,464 mmcorrect
Unladen weight	4,810 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16 V/16 Rcorrect
Front tyres	380/85 R 28 AScorrect
Rear tyres	18.4 R 38 AScorrect
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 16 kW/t (77 kW / 4.8 t)

Power class: Large (100–180 hp)

Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Allis Gleaner Corporation LT-85 A have?

The Allis Gleaner Corporation LT-85 A delivers 105 hp.

How much does the Allis Gleaner Corporation LT-85 A weigh?

The unladen weight is 4,810 kg.

What engine does the Allis Gleaner Corporation LT-85 A have?

4 cylinders, 4,397 cm³ displacement, Diesel.

How fast does the Allis Gleaner Corporation LT-85 A go?

Top speed is 40 km/h.

What are the dimensions of the Allis Gleaner Corporation LT-85 A?

4,369 mm × 2,014 mm × 2,769 mm.

When was the Allis Gleaner Corporation LT-85 A built?

Production years: 2008–2010.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
