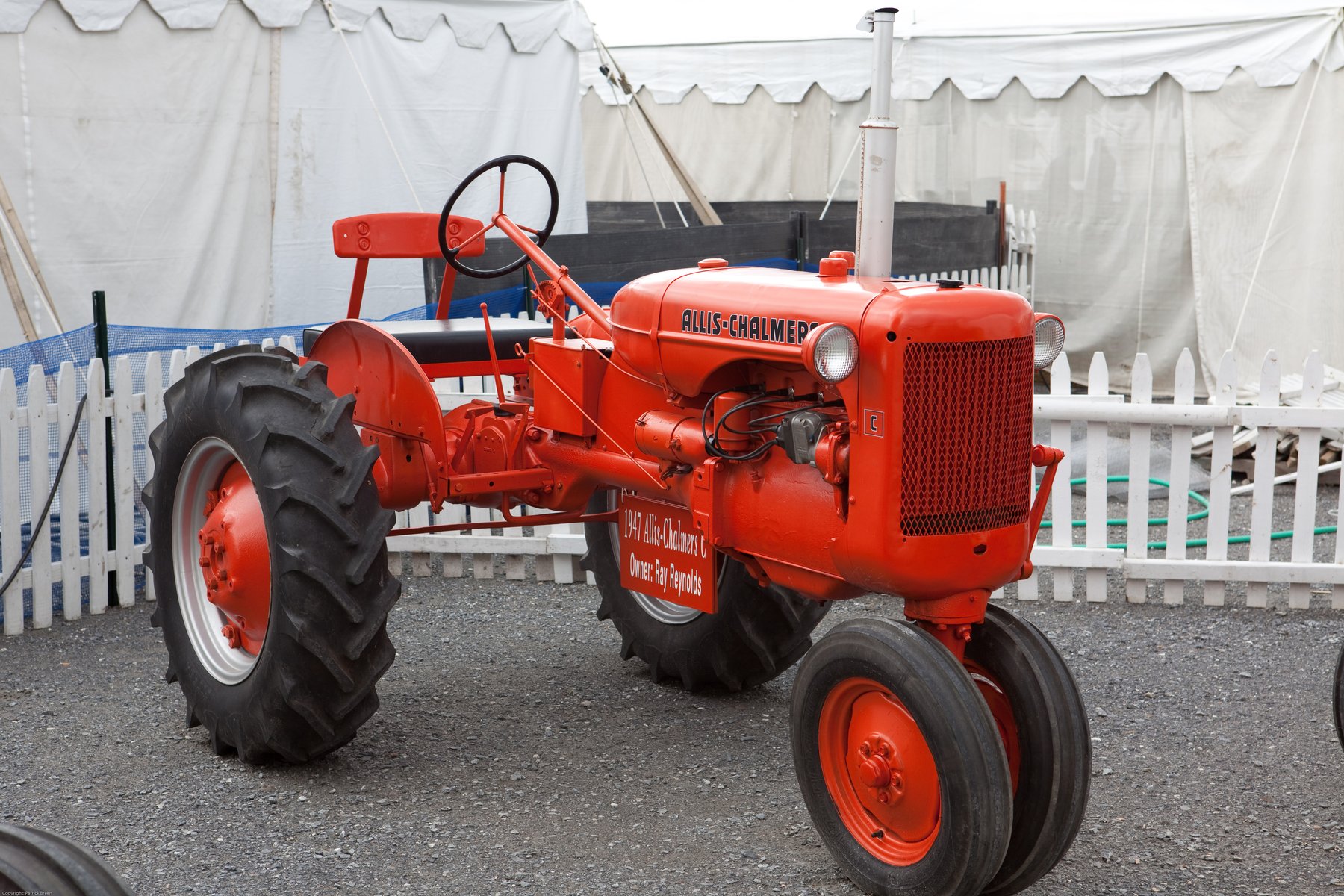

Allis Chalmers MODELL - C
Built: 1940–1950 · Series: C-Baureihe
More machines from model year 1940
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Allis-Chalmers Model C, CA and RC – four-cylinder tractors from Milwaukee 1940 to 1949, 2,053 cm³ displacement, 11.4 to 17.1 kW, 998 to 1,817 kg unladen weight
Allis-Chalmers of Milwaukee, Wisconsin, built the Model C from 1940 to 1949 as a light general-purpose tractor for smaller farms; the CA development followed in the 1950s, RC denotes a further version of the same series. All three types share the same four-cylinder engine of 2,053 cm³ displacement. The narrow, tall chassis allowed the tractor to straddle a row of plants without damaging the crop, as befits the row-crop tractor design.
Read on 3 more paragraphs
The register lists 3 versions with 11.4 to 17.1 kW (15.5 to 23.3 hp) from four-cylinder engines of a constant 2,053 cm³ displacement at 1,500 to 1,650 rpm, run on kerosene or petrol blends. Unladen weights range from 998 to 1,817 kg, lengths from 2,800 to 3,554 mm, widths from 1,321 to 1,740 mm and heights from 1,727 to 1,949 mm.
As a light, manoeuvrable general-purpose tractor for row crops and smaller acreages, the Model C was aimed at family farms that had not yet switched to the large field tractors of the competition; the series is among the most widely built early Allis-Chalmers types. The narrow front axle with closely spaced wheels served precise steering between plant rows during cultivating and tending work.
When buying used, what counts is the condition and compression of the four-cylinder engine, carburettor and ignition system, clutch and gearbox, and corrosion on panels and frame; parts for this widespread series are well available through specialist vintage tractor dealers.
Sources: SpecCodex register, model data: Allis-Chalmers C-Baureihe
Technical data
Engine
| Fuel | Petroleum/Benzincorrect |
|---|---|
| Power | 18.7 hp (13.6 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,053 cm³correct |
| Bore | 85.73 mmcorrect |
| Stroke | 88.9 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,800 mmcorrect |
|---|---|
| Width | 1,740 mmcorrect |
| Height | 1,949 mmcorrect |
| Wheelbase | 1,956 mmcorrect |
| Ground clearance | 584 mmcorrect |
| Unladen weight | 998 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3 V/1 Rcorrect |
| Forward gears | 3correct |
| Reverse gears | 1correct |
| Front tyres | 4.00 x 15correct |
| Rear tyres | 9 x 24correct |
| Top speed | 12 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 84,030correct |
Where this model stands
Power-to-weight ratio: 13.6 kW/t (14 kW / 1 t)
Power class: Compact (< 40 hp)
Stronger than 6% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Allis Chalmers MODELL - C have?
The Allis Chalmers MODELL - C delivers 18.7 hp.
How much does the Allis Chalmers MODELL - C weigh?
The unladen weight is 998 kg.
What engine does the Allis Chalmers MODELL - C have?
4 cylinders, 2,053 cm³ displacement, Petroleum/Benzin.
How fast does the Allis Chalmers MODELL - C go?
Top speed is 12 km/h.
What are the dimensions of the Allis Chalmers MODELL - C?
2,800 mm × 1,740 mm × 1,949 mm.
When was the Allis Chalmers MODELL - C built?
Production years: 1940–1950.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
