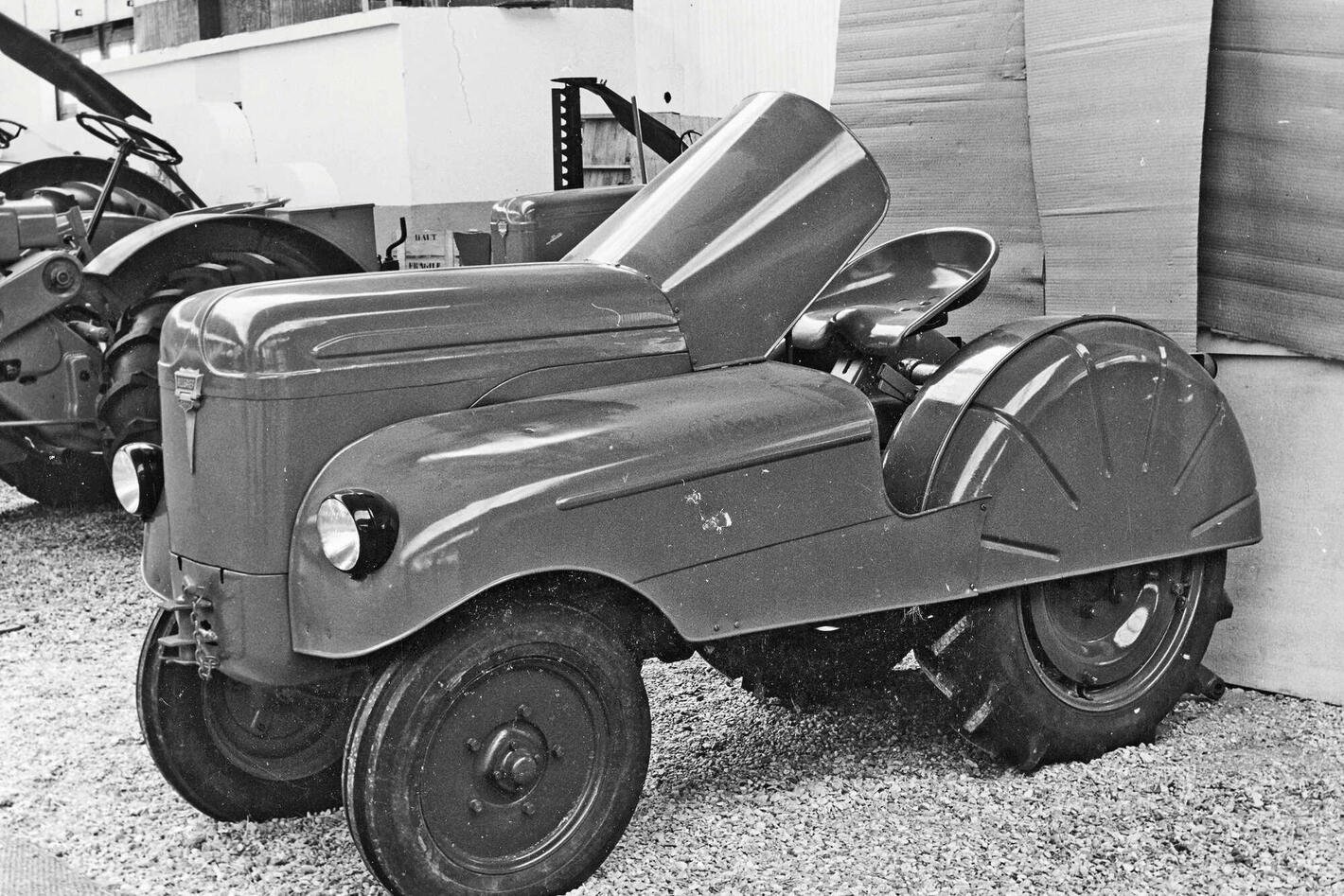

Allgaier A 40 Z
Built: 1952–1954 · Series: A
More machines from model year 1952
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Allgaier A series (1946–1956) – the Uhingen tractors before Porsche-Diesel: A 111 and A 22 as own designs, A 122, A 133 and A 144 to Porsche's design, air-cooled, 9 to 32 kW
Allgaier of Uhingen near Göppingen was a pressing works that built tractors after the war and thereby wrote a chapter of German farm-machinery history: in 1946 the A 111 appeared, a single-cylinder with 12 hp, in 1949 the own A 22 and A 24 followed, and in 1950 came the turning point – Allgaier took the licence for the Volksschlepper Ferdinand Porsche had designed and from then on built the air-cooled Porsche designs. The A 122, A 133 and A 144 of the register are that range: the last digit gives the cylinder count – two-, three- and four-cylinders with 822 cm³ per cylinder, air-cooled and with Porsche's hydraulic clutch – the 12, 13 and 14 the class. In 1956 Allgaier sold the tractor division to Mannesmann, which continued it as Porsche-Diesel in Friedrichshafen; Allgaier still builds pressed parts and screening and drying plants today.
Read on 3 more paragraphs
The register lists 11 versions with 8.8 to 32.2 kW (12 to 44 hp), 822 to 3,980 cm³ with one to four cylinders, rated speeds of 1,500 to 2,200 rpm, unladen weights from 870 to 2,235 kg, lengths from 2,200 to 3,300 mm, widths from 1,460 to 1,770 mm and heights from 1,500 to 1,820 mm – all diesel.
With about 25,000 units the Allgaier-Porsche AP 17 with the two-cylinder became one of the most-built German small tractors of the 1950s; the modular engines with identical cylinders for all sizes were Porsche's idea and Allgaier's manufacturing advantage.
Used Allgaier tractors are sought-after collector pieces of the Porsche family; when buying, originality, the condition of the air-cooled cylinders and blower, the hydraulic clutch and parts supply through the Porsche-Diesel club scene are what count.
Sources: SpecCodex register, model data: Allgaier A, Allgaier Werke (Wikipedia), Porsche-Diesel (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40 hp (29.4 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 3,980 cm³correct |
| Bore | 130 mmcorrect |
| Stroke | 150 mmcorrect |
| Injection pressure | 100 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,300 mmcorrect |
|---|---|
| Width | 1,635 mmcorrect |
| Height | 1,800 mmcorrect |
| Wheelbase | 2,010 mmcorrect |
| Ground clearance | 435 mmcorrect |
| Unladen weight | 2,200 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5/1correct |
| Forward gears | 5correct |
| Front tyres | 6-20correct |
| Rear tyres | 13-30correct |
| Top speed | 22.8 km/hcorrect |
Working data
| Fuel tank capacity | 52 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 200correct |
Where this model stands
Power-to-weight ratio: 13.4 kW/t (29 kW / 2.2 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Allgaier A 40 Z have?
The Allgaier A 40 Z delivers 40 hp.
How much does the Allgaier A 40 Z weigh?
The unladen weight is 2,200 kg.
What engine does the Allgaier A 40 Z have?
2 cylinders, 3,980 cm³ displacement, Diesel.
How fast does the Allgaier A 40 Z go?
Top speed is 22.8 km/h.
What are the dimensions of the Allgaier A 40 Z?
3,300 mm × 1,635 mm × 1,800 mm.
When was the Allgaier A 40 Z built?
Production years: 1952–1954.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
