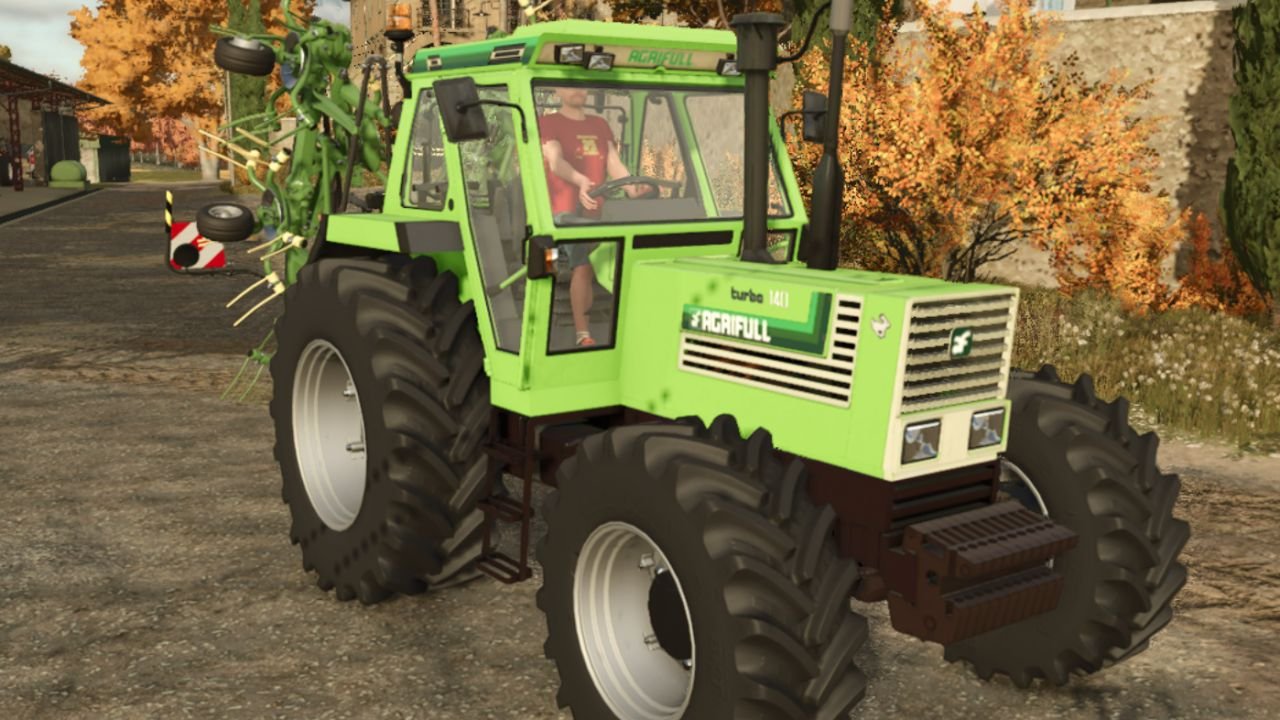

Agrifull A-140 DT TURBO
Built: 1987–1991 · Series: A-Baureihe
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Agrifull A series (A-50, A-140 DT Turbo) – wide power span from three-cylinder to turbo six-cylinder: 36.8 to 103 kW, 2,710 to 5,861 cm³ displacement, 2,125 to 6,800 kg unladen weight
The Agrifull A series from the Italian Fiat group covered, under the shared A letter code, a wide span of standard tractors, from light three-cylinder models such as the A-50 to the turbocharged six-cylinder A-140 DT Turbo at the top of the range; DT, as in the 10 series, marks four-wheel drive.
Read on 3 more paragraphs
The register lists here 2 versions with 36.8 to 103 kW from three- to six-cylinders of 2,710 to 5,861 cm³ displacement, unladen weights from 2,125 to 6,800 kg, a length of 2,976 to 4,180 mm, a width of 1,540 to 2,400 mm, a height of 2,245 to 2,830 mm, and torque of 155 to 465 Nm at 2,500 rpm.
With this span from small general-purpose machine to large turbo tractor, the A series covered almost the whole market segment in which Agrifull competed within the Fiat group alongside Fiat's own, more broadly based standard tractors. Among collectors, Fiat-group tractors both narrow and standard in track, such as the Agrifull A series, are regarded today as sought-after youngtimers.
On used A-series tractors, what counts varies by model: on the small A-50 mainly clutch and gearbox, on the A-140 DT Turbo additionally the condition of the turbocharger, front-axle drive clutch and injection system, and rust on mudguards and frame; parts run through dealers specialising in Fiat/Agrifull. and the wiring.
Sources: SpecCodex register, model data: Agrifull A-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 140 hp (103 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 465 Nmcorrect |
| Speed at max. torque | 1,550 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,861 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 16.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,180 mmcorrect |
|---|---|
| Width | 2,400 mmcorrect |
| Height | 2,830 mmcorrect |
| Wheelbase | 2,650 mmcorrect |
| Ground clearance | 452 mmcorrect |
| Unladen weight | 6,800 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/8 R or 16 V/16 Rcorrect |
| Front tyres | 14.9 R 28 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.1 kW/t (103 kW / 6.8 t)
Power class: Large (100–180 hp)
Stronger than 81% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Agrifull A-140 DT TURBO have?
The Agrifull A-140 DT TURBO delivers 140 hp.
How much does the Agrifull A-140 DT TURBO weigh?
The unladen weight is 6,800 kg.
What engine does the Agrifull A-140 DT TURBO have?
6 cylinders, 5,861 cm³ displacement, Diesel.
How fast does the Agrifull A-140 DT TURBO go?
Top speed is 30 km/h.
What are the dimensions of the Agrifull A-140 DT TURBO?
4,180 mm × 2,400 mm × 2,830 mm.
When was the Agrifull A-140 DT TURBO built?
Production years: 1987–1991.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
