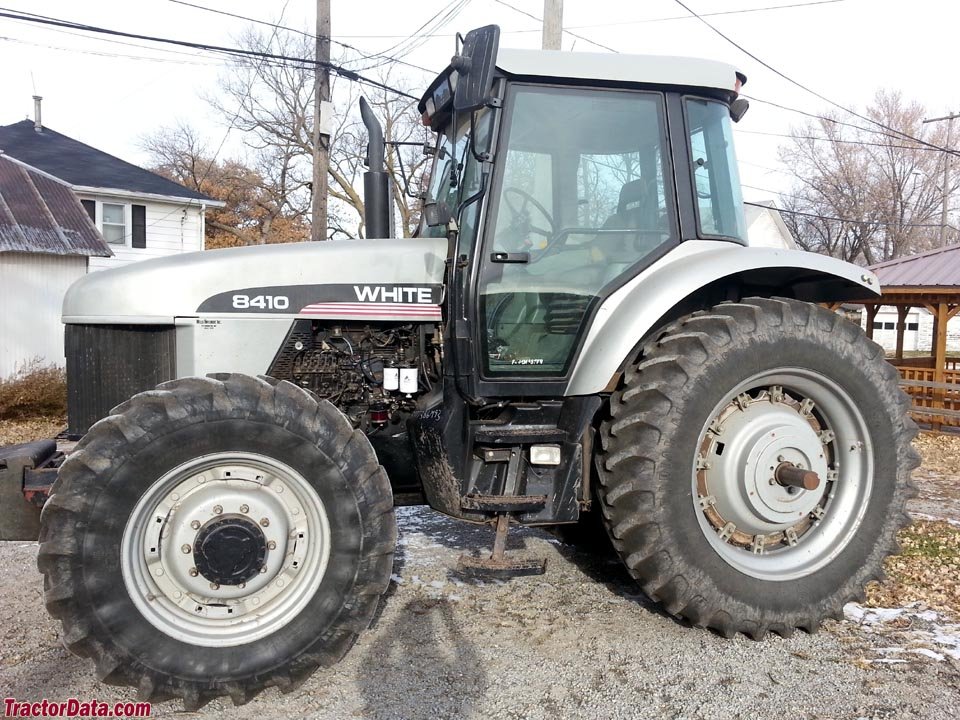

AGCO White 8410
Built: 1998–2001 · Series: 8010 er-FIELD-MASTER-Serie
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO White 8010 Field Master series – large six-cylinder tractors of the early 1990s: 93.4 to 108.1 kW/127 to 147 hp, 5,889 cm³ displacement, 6,863 to 7,414 kg unladen weight
White Farm Equipment was formed in 1969 from the merger of the tractor makers Oliver, Minneapolis-Moline and Cockshutt, and was taken over by AGCO in 1991, which continued the White brand through the 1990s with its own ranges. Within it, the 8010 Field Master series formed the large, well-equipped class with six-cylinder engines.
Read on 3 more paragraphs
The register lists here 2 versions with 93.4 to 108.1 kW, or 127 to 147 hp, from six-cylinders of 5,889 cm³ displacement, unladen weights from 6,863 to 7,414 kg, a length of 4,724 mm, a width of 2,494 mm, a height of 3,048 mm, and torque of 570 to 649 Nm at 2,200 rpm.
With its upmarket cab specification the Field Master series appealed to larger farms in North America and competed directly with the comparable AGCO Allis ranges and the six-cylinder tractors of John Deere and Case IH. In 2001 AGCO dropped the AGCO Allis and AGCO White brands in favour of the corporate AGCO brand; the group had already acquired Massey Ferguson in 1994.
On used 8010 Field Master tractors, condition of injection pump and turbocharger, tightness and shift behaviour of the gearbox, condition of cab mounting, and rust on mudguards and frame count; parts run through the AGCO parts trade. and the condition of the wiring loom.
Sources: SpecCodex register, model data: AGCO White 8010er Field-Master-Serie, AGCO Corporation (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 147 hp (108.1 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 649 Nmcorrect |
| Speed at max. torque | 1,549 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,889 cm³correct |
| Bore | 102.1 mmcorrect |
| Stroke | 119.9 mmcorrect |
| Compression ratio | 17.4correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,724 mmcorrect |
|---|---|
| Width | 2,494 mmcorrect |
| Height | 3,048 mmcorrect |
| Wheelbase | 2,751 mmcorrect |
| Unladen weight | 6,863 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/32 R or 18 V/6 Rcorrect |
| Front tyres | 11.00-16 ASF (4 WD: 14.9 R 30 AS)correct |
| Rear tyres | 18.4 R 38 AS (4 WD: 18.4 R 42 AS)correct |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 378 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.8 kW/t (108 kW / 6.9 t)
Power class: Large (100–180 hp)
Stronger than 83% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO White 8410 have?
The AGCO White 8410 delivers 147 hp.
How much does the AGCO White 8410 weigh?
The unladen weight is 6,863 kg.
What engine does the AGCO White 8410 have?
6 cylinders, 5,889 cm³ displacement, Diesel.
How fast does the AGCO White 8410 go?
Top speed is 30 km/h.
What are the dimensions of the AGCO White 8410?
4,724 mm × 2,494 mm × 3,048 mm.
When was the AGCO White 8410 built?
Production years: 1998–2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
