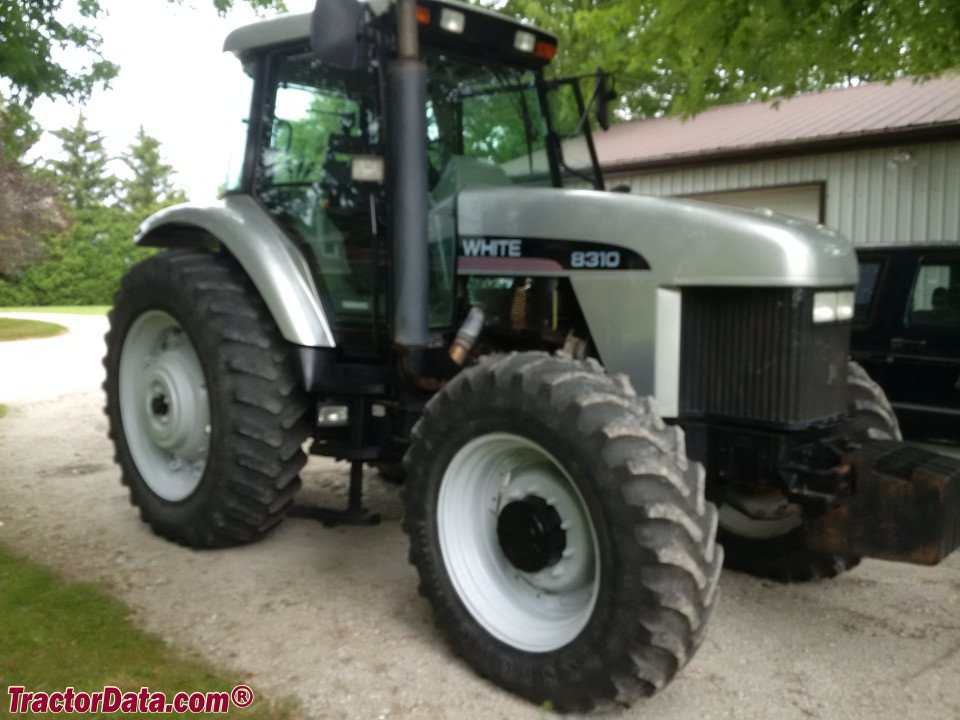

AGCO White 8310 – specifications
Built: 1998–2001 · Series: 8010 er-FIELD-MASTER-Serie
The 8310 from AGCO White is part of the 8010er-FIELD-MASTER series. Production: 1998–2001. The engine delivers 127 hp (93.4 kW), has 6 cylinders, with a displacement of 5,889 cm³. Torque is 570 Nm. Rated speed is 2,200 rpm. The machine is 4,724 mm long, 2,494 mm wide and 3,048 mm high. The unladen weight is 7,414 kg. The wheelbase measures 2,751 mm. Top speed is 30 km/h. The tank holds 378 litres. Transmission: 32 V/32 R or 18 V/6 R. The engine is water-cooled. Tyres: front 14.9 R 30 AS, rear 18.4 R 42 AS. The fuel is diesel. The bore measures 102.1 mm. The stroke is 119.9 mm. The compression ratio is 17.4:1. Maximum torque is reached at 1,500 rpm. Construction: unit construction (no separate frame). The linkage is category III. The PTO runs at 540/1000 rpm. Rated output across the AGCO White range ranges from 48 to 228 hp; the 8310 sits in the middle of that range with 127 hp. Its immediate neighbours are the 6124 below it with 126 hp and the 6144 above it with 145 hp. Rated output across the AGCO White range ranges from 48 to 218 hp; here the 8310 sits in the middle of that range with 127 hp. 25 AGCO White models across 6 series are on record.
Data for the version built 1998–2001 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO White 8010 Field Master series – large six-cylinder tractors of the early 1990s: 93.4 to 108.1 kW/127 to 147 hp, 5,889 cm³ displacement, 6,863 to 7,414 kg unladen weight
White Farm Equipment was formed in 1969 from the merger of the tractor makers Oliver, Minneapolis-Moline and Cockshutt, and was taken over by AGCO in 1991, which continued the White brand through the 1990s with its own ranges. Within it, the 8010 Field Master series formed the large, well-equipped class with six-cylinder engines.
Read on 3 more paragraphs
The register lists here 2 versions with 93.4 to 108.1 kW, or 127 to 147 hp, from six-cylinders of 5,889 cm³ displacement, unladen weights from 6,863 to 7,414 kg, a length of 4,724 mm, a width of 2,494 mm, a height of 3,048 mm, and torque of 570 to 649 Nm at 2,200 rpm.
With its upmarket cab specification the Field Master series appealed to larger farms in North America and competed directly with the comparable AGCO Allis ranges and the six-cylinder tractors of John Deere and Case IH. In 2001 AGCO dropped the AGCO Allis and AGCO White brands in favour of the corporate AGCO brand; the group had already acquired Massey Ferguson in 1994.
On used 8010 Field Master tractors, condition of injection pump and turbocharger, tightness and shift behaviour of the gearbox, condition of cab mounting, and rust on mudguards and frame count; parts run through the AGCO parts trade. and the condition of the wiring loom.
Sources: SpecCodex register, model data: AGCO White 8010er Field-Master-Serie, AGCO Corporation (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 127 hp (93.4 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 570 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,889 cm³correct |
| Bore | 102.1 mmcorrect |
| Stroke | 119.9 mmcorrect |
| Compression ratio | 17.4correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,724 mmcorrect |
|---|---|
| Width | 2,494 mmcorrect |
| Height | 3,048 mmcorrect |
| Wheelbase | 2,751 mmcorrect |
| Unladen weight | 7,414 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32 V/32 R or 18 V/6 Rcorrect |
| Front tyres | 14.9 R 30 AScorrect |
| Rear tyres | 18.4 R 42 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 378 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 12.6 kW/t (93 kW / 7.4 t)
Power class: Large (100–180 hp)
Stronger than 77% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
