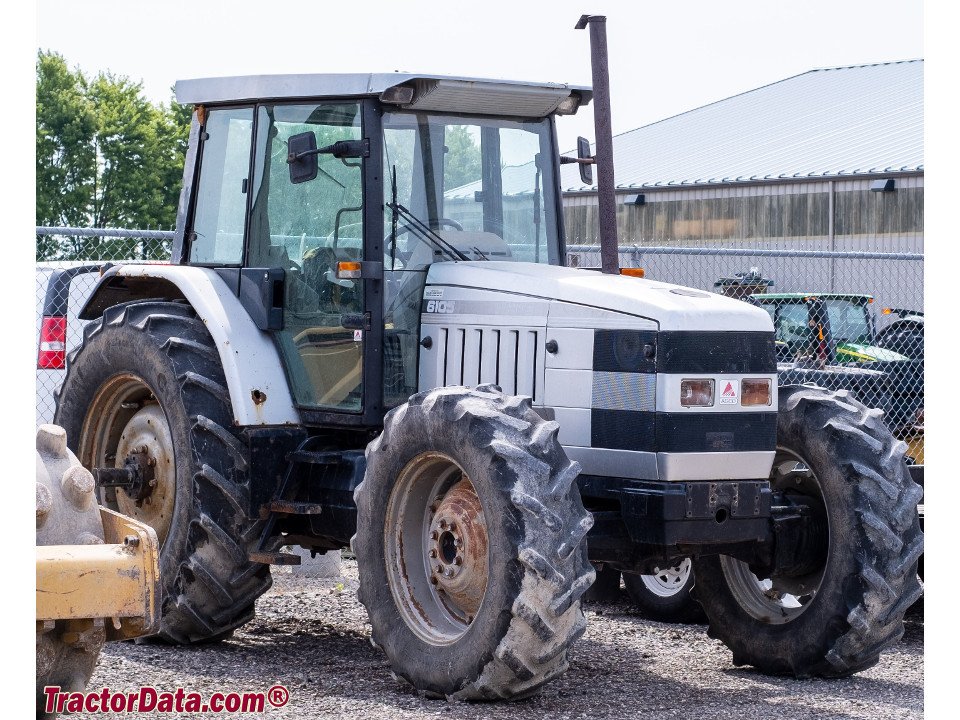

AGCO White 6105
Built: 1992–1997 · Series: 6000 er-Serie
More machines from model year 1992
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO White 6000 series – compact tractors from the US brand based in Duluth: 6045 to 6105, 35 to 79 kW, three- to six-cylinder engines of 3,000 to 6,000 cm³
AGCO White was, in the 1990s, another US tractor brand of the AGCO group headquartered in Duluth, Georgia; the brand name traces back to the White Farm Equipment Company, whose farm-machinery business AGCO acquired in 1991. The models covered here, 6045 to 6105, form the brand's 6000 compact class and, across four power steps, covered a broad field from the small farmyard tractor to the versatile mid-range model.
Read on 3 more paragraphs
The register lists here 4 versions with 35.3 to 79.4 kW, or 48 to 108 hp, from three- to six-cylinder engines of 3,000 to 6,000 cm³, unladen weights from 2,049 to 4,542 kg, torque from 179 to 378 Nm, lengths from 3,380 to 4,030 mm, widths from 1,695 to 2,210 mm and heights from 2,232 to 2,755 mm.
The 6000 series targeted smaller and mid-sized farms, orchards, vineyards and municipal use, competing there against Massey Ferguson, Ford and the emerging Japanese compact tractors; like the entire AGCO White brand, the 6000 series was withdrawn from the market in the late 1990s in favour of other AGCO brands.
On a used buy, what counts is the condition of the injection pump and cooling system, the tightness of the hydraulics, corrosion on the wings and chassis, and the limited parts supply, since the brand has long been discontinued and spares must be sourced through independent farm-machinery dealers and aftermarket brands.
Sources: SpecCodex register, model data: AGCO White 6000er-Serie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 108 hp (79.4 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 378 Nmcorrect |
| Speed at max. torque | 1,568 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,000 mmcorrect |
|---|---|
| Width | 2,210 mmcorrect |
| Height | 2,755 mmcorrect |
| Wheelbase | 2,731 mmcorrect |
| Ground clearance | 510 mmcorrect |
| Unladen weight | 4,542 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/12 R, 24 V/24 R or 36 V/36 Rcorrect |
| Front tyres | 10.00-16 ASF (4 WD: 14.9 R 30 AS)correct |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 210 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat I/IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.5 kW/t (79 kW / 4.5 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO White 6105 have?
The AGCO White 6105 delivers 108 hp.
How much does the AGCO White 6105 weigh?
The unladen weight is 4,542 kg.
What engine does the AGCO White 6105 have?
6 cylinders, 6,000 cm³ displacement, Diesel.
How fast does the AGCO White 6105 go?
Top speed is 30 km/h.
What are the dimensions of the AGCO White 6105?
4,000 mm × 2,210 mm × 2,755 mm.
When was the AGCO White 6105 built?
Production years: 1992–1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 28 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
