AGCO Massey Ferguson MF 5709 Dyna4
Built: from 2017 · Series: MF 5700 Global Dyna4
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

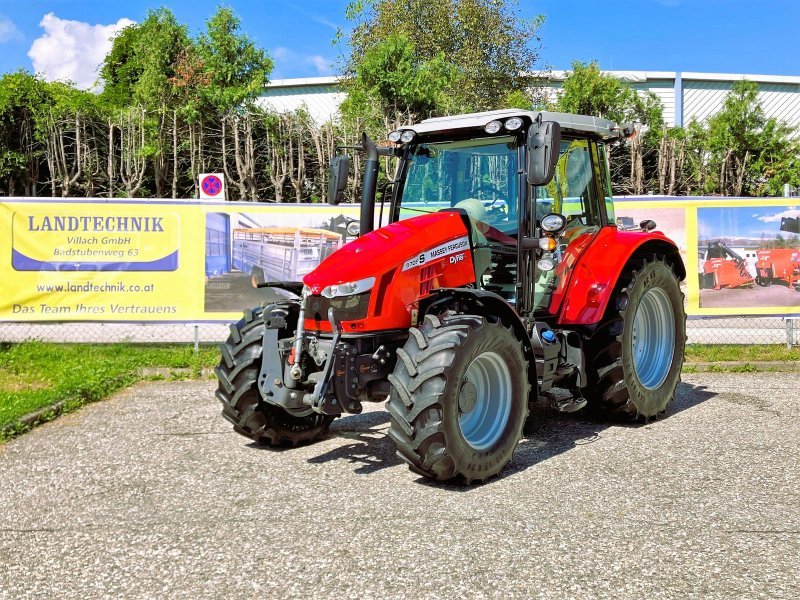

Massey Ferguson MF 5709 Dyna4 (MF 5700 Global Dyna4) – a simply equipped utility tractor with powershift: three-cylinder diesel of 3,300 cm³, 95 hp/70 kW and 4,070 kg unladen weight, since 2017
The MF 5700 Global Dyna4 version carries the concept of the more simply equipped Global Series over to Massey Ferguson's 5700 range, with the Dyna4 powershift gearbox as its central comfort feature. The brand has belonged to the AGCO group since 1994 and assembles its larger tractor ranges at its Beauvais plant in France.
Read on 3 more paragraphs
The MF 5709 Dyna4 is powered by a three-cylinder diesel engine of 3,300 cm³ displacement, delivering 95 hp or 70 kW at a rated speed of 2,200 rpm, and runs on diesel with AdBlue. At 4,070 kg unladen weight, 4,197 mm length, 1,821 mm width and 2,685 mm height on a 2,320 mm wheelbase, the machine reaches a design top speed of 40 km/h.
A three-cylinder of 3.3 litres and just under 100 hp sits in the lower mid-range of utility tractors and suits mixed operations with field and yard work, while the Dyna4 powershift gives the operating comfort of a higher-specification tractor without the full scope of the European version, shifting gears under load without a clutch pedal. At 40 km/h the MF 5709 falls into the German T licence class.
When buying used, besides the function of the Dyna4 powershift, the condition of the AdBlue system matters, since this technology can lead to fault codes and power limitation if maintenance is irregular. Bodywork and mudguards should be checked for corrosion, as with any tractor that spends much time outdoors.
Sources: SpecCodex-Register: Kennwerte des Modells Massey Ferguson MF 5709 Dyna4, Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Fuel | Diesel und AdBluecorrect |
|---|---|
| Power | 95 hp (70 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,300 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,197 mmcorrect |
|---|---|
| Width | 1,821 mmcorrect |
| Height | 2,685 mmcorrect |
| Wheelbase | 2,320 mmcorrect |
| Ground clearance | 515 mmcorrect |
| Unladen weight | 4,070 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | Dyna4correct |
| Rear tyres | 420/85R34correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 17.2 kW/t (70 kW / 4.1 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 5709 Dyna4 have?
The AGCO Massey Ferguson MF 5709 Dyna4 delivers 95 hp.
How much does the AGCO Massey Ferguson MF 5709 Dyna4 weigh?
The unladen weight is 4,070 kg.
What engine does the AGCO Massey Ferguson MF 5709 Dyna4 have?
3 cylinders, 3,300 cm³ displacement, Diesel und AdBlue.
How fast does the AGCO Massey Ferguson MF 5709 Dyna4 go?
Top speed is 40 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 5709 Dyna4?
4,197 mm × 1,821 mm × 2,685 mm.
When was the AGCO Massey Ferguson MF 5709 Dyna4 built?
Production years: 2017–?.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
