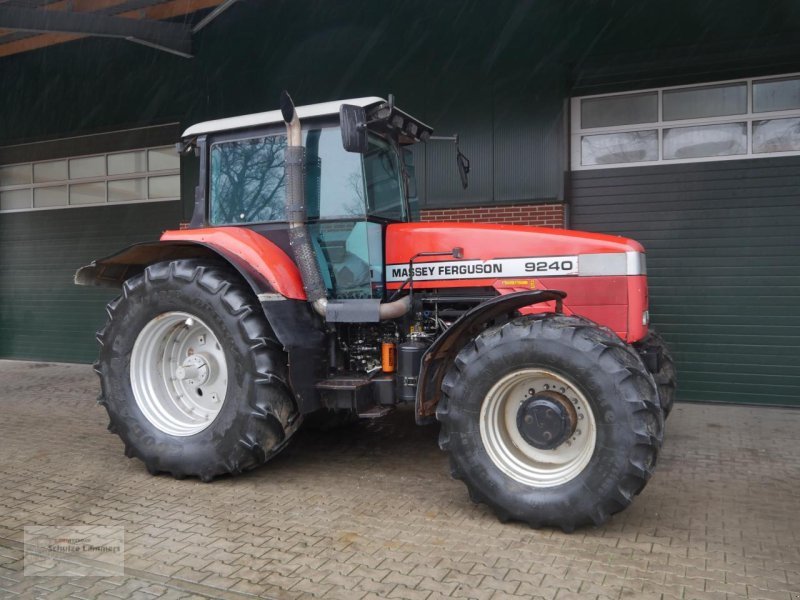

AGCO Massey Ferguson MF 9240
Built: 1994–1998 · Series: 9000-Baureihe
More machines from model year 1994
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson MF 9240 (9000 series) – the brand's flagship model of the 1990s: six-cylinder diesel of 8,270 cm³, 240 hp/176.6 kW, 895 Nm and 9,014 kg unladen weight, 1994–1998
The MF 9000 series formed Massey Ferguson's flagship segment in the 1990s, at the time the brand was taken over in 1994 by the newly formed AGCO group. It targeted large farming operations with a high need for tractive effort in heavy tillage work.
Read on 3 more paragraphs
The MF 9240 is powered by a six-cylinder diesel engine of 8,270 cm³ displacement, delivering 240 hp or 176.6 kW at a rated speed of 2,200 rpm and providing 895 Nm of torque. At 9,014 kg unladen weight, 4,928 mm length, 2,440 mm width and 3,145 mm height on a 2,921 mm wheelbase, with a design top speed of 30 km/h, it is the heaviest and most powerful tractor in this selection.
The comparatively low top speed of 30 km/h shows a design geared to pure tractive effort rather than road transport; such a large tractor operates almost exclusively in the field and needs three-point linkage in the upper ISO 730 category for heavy cultivators, ploughs and tillage combinations. Even at 30 km/h the machine falls into the German T licence class.
For a machine of this power class and model year, engine hours, the condition of turbocharger and injection system, and wear on axles and tyres under high pulling load matter especially. Transmission and hydraulic pumps should be checked for leaks, since large tractors of this class were often run in multi-shift operation during harvest.
Sources: SpecCodex-Register: Kennwerte des Modells Massey Ferguson MF 9240, Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 240 hp (176.6 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 895 Nmcorrect |
| Speed at max. torque | 1,601 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,270 cm³correct |
| Bore | 114 mmcorrect |
| Stroke | 135 mmcorrect |
| Compression ratio | 16.5correct |
| Injection pressure | 205 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,928 mmcorrect |
|---|---|
| Width | 2,440 mmcorrect |
| Height | 3,145 mmcorrect |
| Wheelbase | 2,921 mmcorrect |
| Ground clearance | 376 mmcorrect |
| Unladen weight | 9,014 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18V/9Rcorrect |
| Front tyres | 600/65 R 28 AScorrect |
| Rear tyres | 710/70 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.6 kW/t (177 kW / 9 t)
Power class: Heavy (> 180 hp)
Stronger than 94% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 9240 have?
The AGCO Massey Ferguson MF 9240 delivers 240 hp.
How much does the AGCO Massey Ferguson MF 9240 weigh?
The unladen weight is 9,014 kg.
What engine does the AGCO Massey Ferguson MF 9240 have?
6 cylinders, 8,270 cm³ displacement, Diesel.
How fast does the AGCO Massey Ferguson MF 9240 go?
Top speed is 30 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 9240?
4,928 mm × 2,440 mm × 3,145 mm.
When was the AGCO Massey Ferguson MF 9240 built?
Production years: 1994–1998.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
