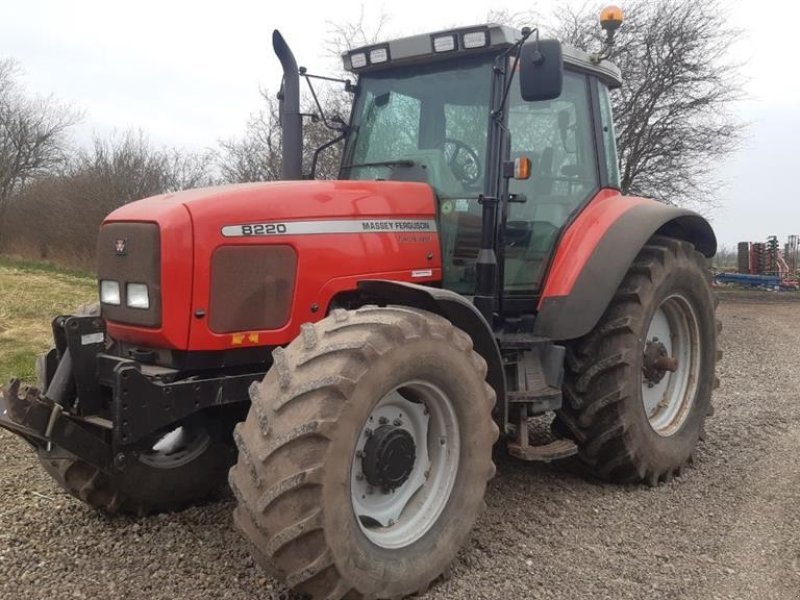

AGCO Massey Ferguson MF 8220 A
Built: 1999–2002 · Series: 8200er-Baueihe
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson MF 8220 A (8200 series) – the large arable tractor from the late 1990s: six-cylinder diesel of 5,987 cm³, 155 hp/114.1 kW, 599 Nm and 6,695 kg unladen weight, 1999–2002
Massey Ferguson emerged in 1953 from the merger of Massey-Harris with Harry Ferguson's tractor company and has belonged to the AGCO group since 1994, which assembles the brand's larger ranges at its Beauvais plant in France. The 8200 series formed the brand's upper power segment for large arable tractors at the end of the 1990s.
Read on 3 more paragraphs
The MF 8220 A is powered by a six-cylinder diesel engine of 5,987 cm³ displacement, delivering 155 hp or 114.1 kW at a rated speed of 2,200 rpm and providing 599 Nm of torque. At 6,695 kg unladen weight, 5,050 mm length, 2,138 mm width and 3,200 mm height on a 2,838 mm wheelbase, with a design top speed of 40 km/h, it is a heavy, water-cooled tractor for arable farming.
A six-cylinder of nearly 6 litres delivers the smoothness and torque that large trailed tillage implements and heavy trailers demand, setting it clearly apart from the brand's smaller three- and four-cylinder models. At a top speed of 40 km/h the MF 8220 A falls into the German T licence class; a PTO at the standard 1,000 rpm speed is common for implements of this power class.
When buying used, the condition of the turbocharger and injection pump, the tightness of the hydraulics and wear on clutch and transmission matter most for this model year, since the machine was built for continuous use in large-scale arable farming and may have accumulated correspondingly high operating hours. The frame and front axle should be checked for cracking from the high pulling forces.
Sources: SpecCodex-Register: Kennwerte des Modells Massey Ferguson MF 8220 A, Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 155 hp (114.1 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 599 Nmcorrect |
| Speed at max. torque | 1,369 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,987 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,050 mmcorrect |
|---|---|
| Width | 2,138 mmcorrect |
| Height | 3,200 mmcorrect |
| Wheelbase | 2,838 mmcorrect |
| Ground clearance | 550 mmcorrect |
| Unladen weight | 6,695 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 32V/32R or 18V/8Rcorrect |
| Front tyres | 11.00-16 ASF (A: 16.9 R 30 AS)correct |
| Rear tyres | 18.4 R 38 AS (A: 20.8 R 42 AS)correct |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17 kW/t (114 kW / 6.7 t)
Power class: Large (100–180 hp)
Stronger than 85% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 8220 A have?
The AGCO Massey Ferguson MF 8220 A delivers 155 hp.
How much does the AGCO Massey Ferguson MF 8220 A weigh?
The unladen weight is 6,695 kg.
What engine does the AGCO Massey Ferguson MF 8220 A have?
6 cylinders, 5,987 cm³ displacement, Diesel.
How fast does the AGCO Massey Ferguson MF 8220 A go?
Top speed is 40 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 8220 A?
5,050 mm × 2,138 mm × 3,200 mm.
When was the AGCO Massey Ferguson MF 8220 A built?
Production years: 1999–2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
