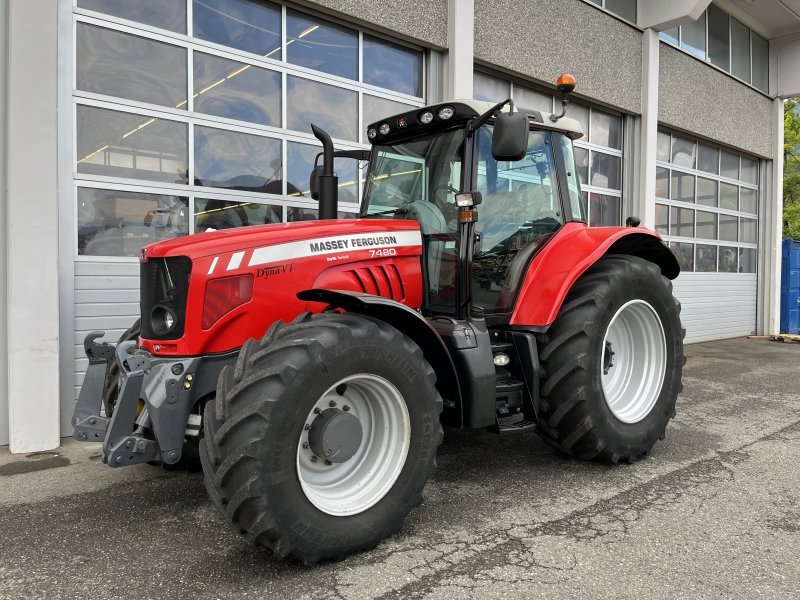

AGCO Massey Ferguson MF 7480
Built: 2004–2012 · Series: 7400er-Baureihe
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson MF 7400 (2003–2012) – the Dyna-VT range from Beauvais: MF 7465 to MF 7499, the last digits as power step, Sisu six-cylinders of 6.0 and 7.4 litres, stepless transmission as hallmark, 88 to 162 kW
The MF 7400 was Massey Ferguson's range for the stepless transmission: introduced in Beauvais in 2003 as a complement to the MF 6400 with Dyna-6 powershift, it carried the Dyna-VT transmission AGCO derived from the Fendt Vario and thus offered in the mid-range as the second group after Fendt. The type logic: 74 marks the range, the last two digits the power step – MF 7465 about 125 hp, MF 7475 about 140, MF 7480 about 150, MF 7497 about 200, MF 7499 about 220 hp with power boost – the range being extended in 2008 up to the 7495 and 7499 with 7.4 litre engine. The engines are Sisu six-cylinders from Linnavuori (today AGCO Power) of 6.0 litres in the small and 7.4 litres in the big models, at 2,200 rpm, with common-rail injection and SCR exhaust aftertreatment in the last generation – in 2008 MF was the first maker to introduce SCR in tractors.
Read on 3 more paragraphs
The register lists 5 versions with 88.3 to 161.9 kW from six-cylinders of 5,987 to 7,368 cm³, unladen weights from 6,250 to 8,021 kg, lengths from 4,720 to 5,060 mm, widths from 2,450 to 2,550 mm and heights from 2,895 to 3,100 mm.
The MF 7400 made the stepless transmission at Massey Ferguson the standard of the upper mid-range; in 2012 the MF 7600 and in 2014 the MF 7700 followed in the same logic.
On used tractors, operating hours, Sisu engine and injection, Dyna-VT transmission (oil history, calibration, noises), front-axle and cab suspension, hydraulics and electronics, on SCR models the AdBlue system count; parts run through the AGCO network.
Sources: SpecCodex register, model data: Massey Ferguson 7400, Massey Ferguson (AGCO, Hersteller, Beauvais)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 145 hp (106.7 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,987 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,720 mmcorrect |
|---|---|
| Width | 2,510 mmcorrect |
| Height | 3,100 mmcorrect |
| Wheelbase | 2,780 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 6,730 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 540/65 R 28 AScorrect |
| Rear tyres | 650/65 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.9 kW/t (107 kW / 6.7 t)
Power class: Large (100–180 hp)
Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 7480 have?
The AGCO Massey Ferguson MF 7480 delivers 145 hp.
How much does the AGCO Massey Ferguson MF 7480 weigh?
The unladen weight is 6,730 kg.
What engine does the AGCO Massey Ferguson MF 7480 have?
6 cylinders, 5,987 cm³ displacement, Diesel.
How fast does the AGCO Massey Ferguson MF 7480 go?
Top speed is 40 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 7480?
4,720 mm × 2,510 mm × 3,100 mm.
When was the AGCO Massey Ferguson MF 7480 built?
Production years: 2004–2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
