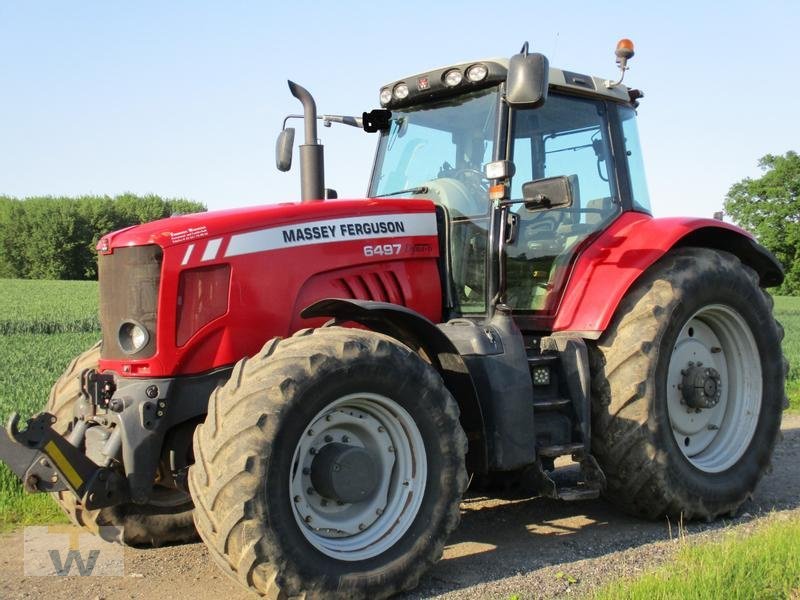

AGCO Massey Ferguson MF 6497 A
Built: 2004–2011 · Series: 6400er-Baureihe
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 6400 Series – Large Mid-Range, 2003 to 2013, with Four- and Six-Cylinder Engines, 66.2 to 158.2 kW/90 to 215 hp and Operating Weight from 4,400 to 7,860 kg
The 6400 series covered Massey Ferguson's large mid-range class above the 5400 series from 2003 to 2013. According to the register, output of the recorded models ranges from 66.2 to 158.2 kW, using four- and six-cylinder engines with displacement from 4,399 to 7,368 cm³.
Read on 4 more paragraphs
Recorded operating weight runs from 4,400 to 7,860 kg, wheelbase from 2,553 to 3,050 mm, and top speed of the listed models is 40 km/h. The most powerful models, such as the MF 6497 A and MF 6499 A, marked the top end of the series.
The 6400 series targeted larger arable farms with higher power needs and sat in the AGCO range between the 5400 and 7700 series. For a used model, check the gearbox variant and emissions stage, as these changed considerably over the ten-year production run.
With rated outputs from 66.2 to 158.2 kW, the 6400 series spanned from ISO 730 Category II on the smaller models to Category III on the largest, each with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. Over the ten-year production run from 2003 to 2013, engine technology moved through several emissions stages, from versions without exhaust treatment to later models with particulate filters or SCR technology.
Massey Ferguson remains part of the AGCO group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing AGCO parts network.
Sources: SpecCodex register, model data: Massey Ferguson 6400er-Baureihe, Massey Ferguson
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 185 hp (136.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,598 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,068 mmcorrect |
|---|---|
| Width | 2,280 mmcorrect |
| Height | 3,096 mmcorrect |
| Wheelbase | 2,996 mmcorrect |
| Ground clearance | 515 mmcorrect |
| Unladen weight | 6,835 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 32V/32R or 24V/24Rcorrect |
| Front tyres | 11.00-16 ASF (A: 540/65 R 30 AS)correct |
| Rear tyres | 620/70 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.9 kW/t (136 kW / 6.8 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 6497 A have?
The AGCO Massey Ferguson MF 6497 A delivers 185 hp.
How much does the AGCO Massey Ferguson MF 6497 A weigh?
The unladen weight is 6,835 kg.
What engine does the AGCO Massey Ferguson MF 6497 A have?
6 cylinders, 6,598 cm³ displacement, Diesel.
How fast does the AGCO Massey Ferguson MF 6497 A go?
Top speed is 40 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 6497 A?
5,068 mm × 2,280 mm × 3,096 mm.
When was the AGCO Massey Ferguson MF 6497 A built?
Production years: 2004–2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
