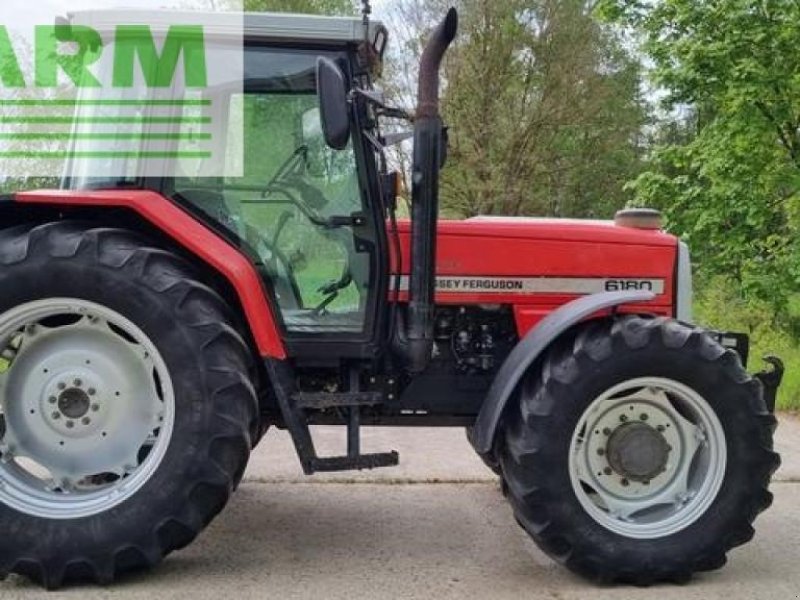

AGCO Massey Ferguson MF 6180 (A)
Built: 1995–1999 · Series: 6100er-Baureihe
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 6100 Series – Mid-Range of the 1990s, Built 1995 to 1999, with Four- and Six-Cylinder Engines, 52.3 to 95.7 kW/71 to 130 hp and Operating Weight from 3,570 to 4,885 kg
The 6100 series formed Massey Ferguson's mid-range class from 1995 to 1999 and was one of the first series after the brand's integration into the AGCO group. According to the register, output of the recorded models ranges from 52.3 to 95.7 kW, using four- and six-cylinder engines with displacement from 3,860 to 5,987 cm³.
Read on 4 more paragraphs
Recorded operating weight runs from 3,570 to 4,885 kg, wheelbase from 2,371 to 2,696 mm, and top speed of the listed models spans 30 to 40 km/h.
The 6100 series was succeeded in 1999 by the revised 6200 series and targeted medium arable and grassland farms. For a used model, check the condition of the electronics, as the 6100 series was among the first Massey Ferguson series with electronic lift control.
With rated outputs from 52.3 to 95.7 kW, the 6100 series fell within the ISO 730 Category II range for the rear three-point hitch, complemented by a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. Engines from the 1995 to 1999 production years still lacked exhaust gas recirculation, particulate filters or SCR technology.
Massey Ferguson remains part of the AGCO group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing AGCO parts network, along with wiring diagrams and manuals for what was then still a new electronic lift control.
Sources: SpecCodex register, model data: Massey Ferguson 6100er-Baureihe, Massey Ferguson
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 120 hp (88.3 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 474 Nmcorrect |
| Speed at max. torque | 1,251 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,987 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,323 mmcorrect |
|---|---|
| Width | 2,260 mmcorrect |
| Height | 2,800 mmcorrect |
| Wheelbase | 2,695 mmcorrect |
| Ground clearance | 455 mmcorrect |
| Unladen weight | 4,635 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 30V/30R or 32V/32Rcorrect |
| Front tyres | 11.00-16 ASF (A: 14.9 R 28 AS)correct |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.1 kW/t (88 kW / 4.6 t)
Power class: Large (100–180 hp)
Stronger than 74% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 6180 (A) have?
The AGCO Massey Ferguson MF 6180 (A) delivers 120 hp.
How much does the AGCO Massey Ferguson MF 6180 (A) weigh?
The unladen weight is 4,635 kg.
What engine does the AGCO Massey Ferguson MF 6180 (A) have?
6 cylinders, 5,987 cm³ displacement, Diesel.
How fast does the AGCO Massey Ferguson MF 6180 (A) go?
Top speed is 30 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 6180 (A)?
4,323 mm × 2,260 mm × 2,800 mm.
When was the AGCO Massey Ferguson MF 6180 (A) built?
Production years: 1995–1999.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
