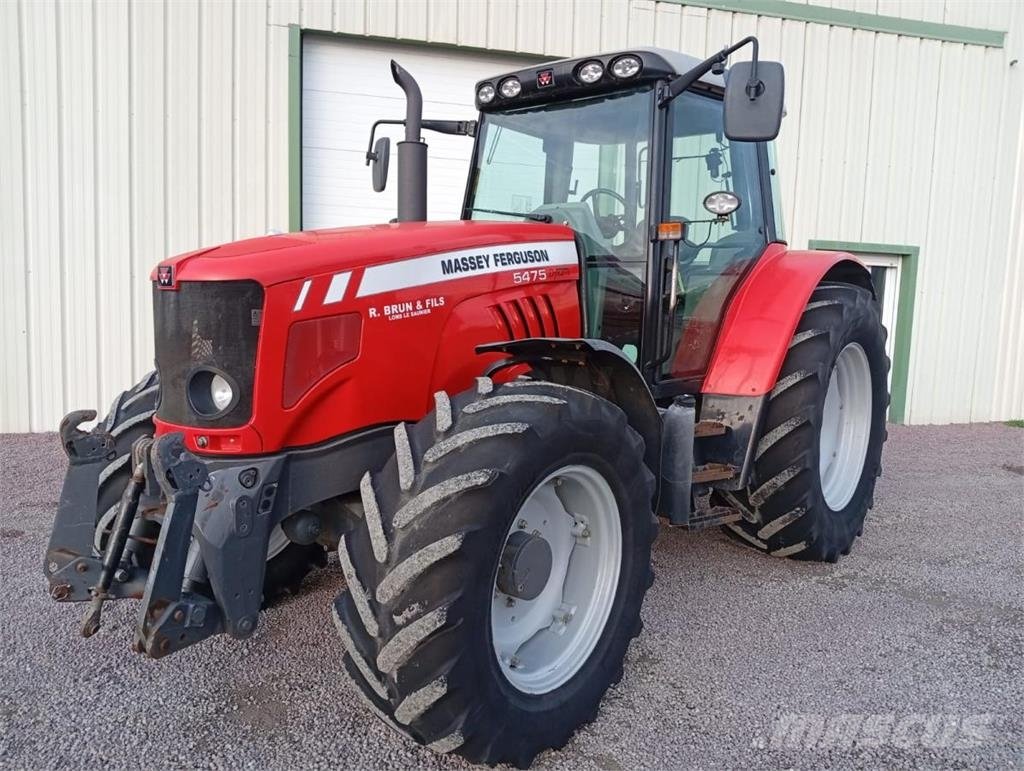

AGCO Massey Ferguson MF 5475 (A)
Built: 2007–2012 · Series: 5400er-Baureihe
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 5400 Series – Mid-Range Class, 2003 to 2013, with Four- and Six-Cylinder Engines, 55 to 99.4 kW/75 to 135 hp and Operating Weight from 3,800 to 5,425 kg
The 5400 series formed Massey Ferguson's mid power class from 2003 to 2013, partly with the A suffix denoting an updated equipment generation. According to the register, output of the recorded models ranges from 55 to 99.4 kW, using four- and six-cylinder engines with displacement from 4,399 to 6,600 cm³.
Read on 4 more paragraphs
Recorded operating weight runs from 3,800 to 5,425 kg, wheelbase from 2,460 to 2,780 mm, and top speed of the listed models is 40 km/h. Model numbers follow the AGCO scheme, where the last two digits denote the power level within the series.
The 5400 series targeted medium arable and mixed farms and was built at AGCO's Beauvais plant in France. For a used model, check the gearbox variant, as both simple powershift and Dyna transmission versions were offered during the production run.
With rated outputs from 55 to 99.4 kW, the 5400 series fell within the ISO 730 Category II range for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for medium-duty implements. Over the ten-year production run from 2003 to 2013, engine technology moved through several emissions stages, from versions without exhaust treatment to later models with particulate filters or SCR technology.
Massey Ferguson remains part of the AGCO group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing AGCO parts network.
Sources: SpecCodex register, model data: Massey Ferguson 5400er-Baureihe, Massey Ferguson
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 135 hp (99.4 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,600 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,122 mmcorrect |
|---|---|
| Width | 1,991 mmcorrect |
| Height | 2,820 mmcorrect |
| Wheelbase | 2,780 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 4,495 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/16Rcorrect |
| Front tyres | 10.00-16 ASF (A: 14.9 R 28 AS)correct |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 22.1 kW/t (99 kW / 4.5 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 5475 (A) have?
The AGCO Massey Ferguson MF 5475 (A) delivers 135 hp.
How much does the AGCO Massey Ferguson MF 5475 (A) weigh?
The unladen weight is 4,495 kg.
What engine does the AGCO Massey Ferguson MF 5475 (A) have?
6 cylinders, 6,600 cm³ displacement, Diesel.
How fast does the AGCO Massey Ferguson MF 5475 (A) go?
Top speed is 40 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 5475 (A)?
3,122 mm × 1,991 mm × 2,820 mm.
When was the AGCO Massey Ferguson MF 5475 (A) built?
Production years: 2007–2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
