AGCO Allis 9765
Built: 1998–2001 · Series: 9700 er - SERIE
More machines from model year 1998
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO Allis 9700 series (1996–2000) – the last orange big tractors: 9735 to 9785, the middle digits as power step, 5 as identifier of the Cummins and Sisu generation, six-cylinders of 6.6 to 8.7 litres, 93 to 170 kW
The 9700 series was the successor to the 9600s and the last big-tractor range under the AGCO Allis name before the AGCO Corporation, founded in 1990, dropped the brand in 2001 – orange tractors in which the heritage of Allis-Chalmers and Deutz-Allis ran out. The type logic: 97 marks the range, the third digit the power step – 9735 about 125 hp, 9755 about 160, 9775 about 195, 9785 about 230 hp – the final digit 5 the generation with water-cooled engines that followed the Deutz air cooling of the 9600s with final digit 0. The engines are six-cylinders from Cummins (B5.9 and C8.3), Navistar and Sisu (AGCO-Allis called them AGCO Sisu) of 6.6 to 8.7 litres at 2,200 rpm; the transmission was the 18-speed powershift, the cab the one taken over from the late Deutz-Allis models.
Read on 3 more paragraphs
The register lists 6 versions with 93.4 to 169.9 kW from six-cylinders of 6,590 to 8,705 cm³, torque from 596 to 939 Nm, a lift capacity up to 4,717 kg, unladen weights from 6,818 to 8,528 kg, a length of 5,156 mm, widths from 2,494 to 2,499 mm and heights from 3,048 to 3,073 mm.
The 9700s were sold only in North America and passed in 2001 into the AGCO RT range and then into Massey Ferguson and Challenger; they are the last tractors to wear the Allis-Chalmers colour.
On used tractors, operating hours, engine and turbocharger (Cummins parts available worldwide), powershift (clutch packs), hydraulics, cab and electronics count; parts run through AGCO and Cummins.
Sources: SpecCodex register, model data: AGCO Allis 9700er-Serie, AGCO Corporation (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 185 hp (136.1 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 869 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,705 cm³correct |
| Bore | 116.59 mmcorrect |
| Stroke | 135.89 mmcorrect |
| Compression ratio | 16.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,156 mmcorrect |
|---|---|
| Width | 2,494 mmcorrect |
| Height | 3,073 mmcorrect |
| Wheelbase | 2,858 mmcorrect |
| Ground clearance | 445 mmcorrect |
| Unladen weight | 7,802 kgcorrect |
Drivetrain and chassis
| Drive | rear- and four-wheel drivecorrect |
|---|---|

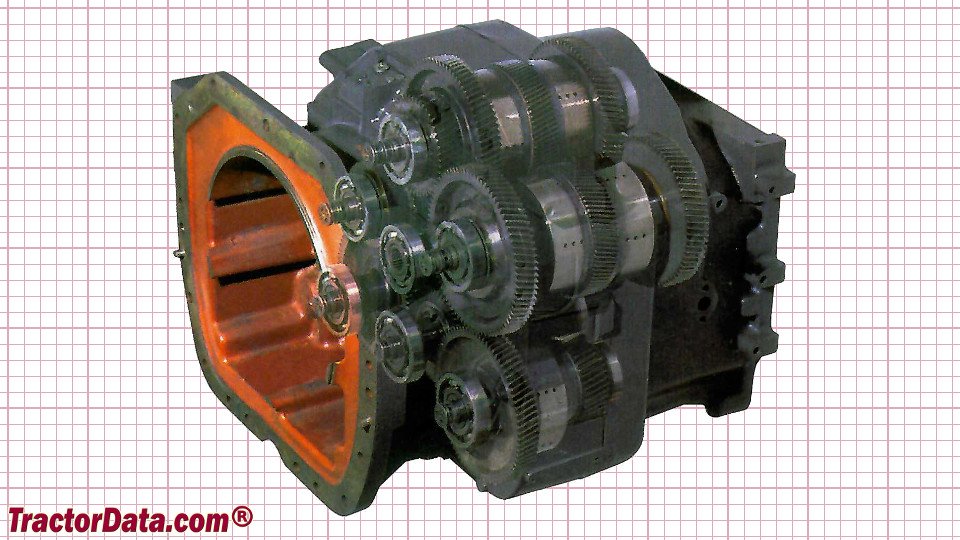

| Gearbox | 18 V/6 R or 36 V/12 Rcorrect |
| Front tyres | 11.00-16 ASF (4 WD: 14.9 R 30 AS)correct |
| Rear tyres | 18.4 R 42 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 454 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 17.4 kW/t (136 kW / 7.8 t)
Power class: Heavy (> 180 hp)
Stronger than 89% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Allis 9765 have?
The AGCO Allis 9765 delivers 185 hp.
How much does the AGCO Allis 9765 weigh?
The unladen weight is 7,802 kg.
What engine does the AGCO Allis 9765 have?
6 cylinders, 8,705 cm³ displacement, Diesel.
How fast does the AGCO Allis 9765 go?
Top speed is 30 km/h.
What are the dimensions of the AGCO Allis 9765?
5,156 mm × 2,494 mm × 3,073 mm.
When was the AGCO Allis 9765 built?
Production years: 1998–2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
