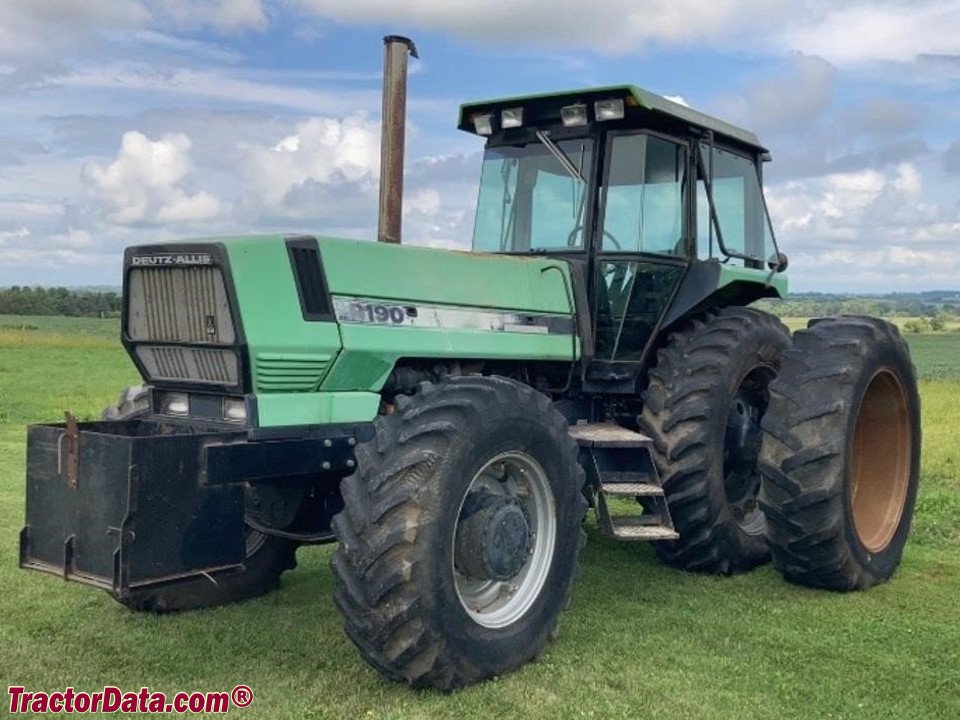

AGCO Allis 9190
Built: 1991–1992 · Series: 9100 er- Serie
More machines from model year 1991
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO Allis 9100 series – large tractors from the US brand with Deutz six-cylinder engines: 9130 to 9190, 101 to 144 kW, 6,128 to 9,572 cm³
The AGCO Allis 9100 series formed the upper power segment of the US brand AGCO Allis, whose parent group AGCO is headquartered in Duluth, Georgia; the brand traces back to Allis-Chalmers, whose farm-machinery division passed via Deutz-Allis to the newly formed AGCO in 1990. For the 9130 to 9190 models, the register consistently lists six-cylinder engines from the German maker Deutz – a legacy of the earlier Deutz-Allis name, under which Deutz engines became a fixture of these ranges.
Read on 3 more paragraphs
The register lists here 4 versions with 100.8 to 144.2 kW, or 135 to 193 hp, from six-cylinder engines of 6,128 to 9,572 cm³, unladen weights from 5,579 to 7,530 kg, lengths from 4,775 to 5,080 mm, a width of 2,438 mm and a height of 3,099 mm.
As a large-tractor series, the 9100 line targeted farms with high draft-power needs, competing there against the large ranges from Case IH, John Deere and Massey Ferguson; like the entire brand, the 9100 series was withdrawn from the market in the late 1990s in favour of other AGCO brands.
On a used buy, for the Deutz engines what counts is the condition of the turbocharger, intercooler and injection pump, the tightness of the hydraulics under this class's high draft loads, and corrosion on the chassis and wings; parts supply for the Deutz units runs through Deutz service, while parts specific to the four-wheel-drive axle and transmission are harder to find, since the brand has been discontinued for decades.
Sources: SpecCodex register, model data: AGCO Allis 9100er-Serie
Technical data
Engine
| Engine make | Deutzcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 196 hp (144.2 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 9,572 cm³correct |
| Bore | 125 mmcorrect |
| Stroke | 130 mmcorrect |
| Compression ratio | 15.8correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 5,080 mmcorrect |
|---|---|
| Width | 2,438 mmcorrect |
| Height | 3,099 mmcorrect |
| Wheelbase | 2,921 mmcorrect |
| Ground clearance | 559 mmcorrect |
| Unladen weight | 7,530 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/6 Rcorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Front tyres | 18.4 R 26 AScorrect |
| Rear tyres | 20.8 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 348 lcorrect |
|---|
Origin and approval
| Plant | Coldwater, OH, USAcorrect |
|---|---|
| Construction | unit construction (no separate frame)correct |
Other data
| Linkage category | Cat II/IIINcorrect |
|---|---|
| Predecessor | Deutz-Allis 9190correct |
Where this model stands
Power-to-weight ratio: 19.2 kW/t (144 kW / 7.5 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Allis 9190 have?
The AGCO Allis 9190 delivers 196 hp.
How much does the AGCO Allis 9190 weigh?
The unladen weight is 7,530 kg.
What engine does the AGCO Allis 9190 have?
6 cylinders, 9,572 cm³ displacement, Diesel.
How fast does the AGCO Allis 9190 go?
Top speed is 30 km/h.
What are the dimensions of the AGCO Allis 9190?
5,080 mm × 2,438 mm × 3,099 mm.
When was the AGCO Allis 9190 built?
Production years: 1991–1992.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
