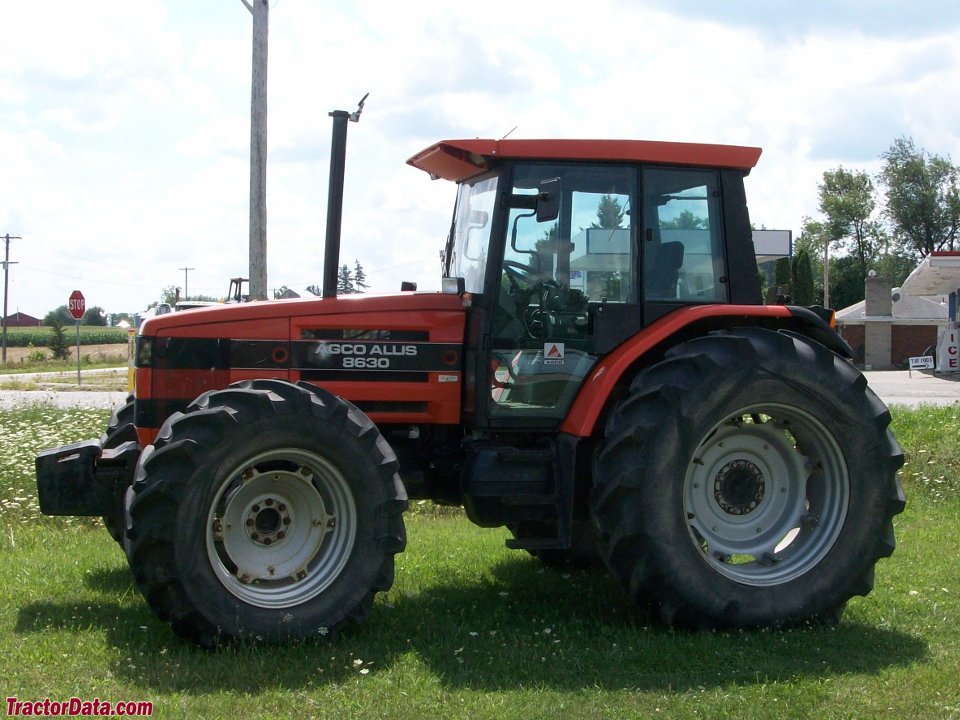

AGCO Allis 8630

Built: 1991–1997 · Series: 8600 er - Baureihe

More machines from model year 1991

Source: http://www.tractordata.com/farm-tractors/002/2/1/2216-agco-a

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 8630 from AGCO Allis is part of the 8600er series. Production: 1991–1997. The engine delivers 130 hp (95.6 kW), has 6 cylinders, with a displacement of 6,001 cm³. The engine comes from SAME. Torque is 446 Nm. Rated speed is 2,500 rpm. The machine is 4,663 mm long, 2,286 mm wide and 2,951 mm high. The unladen weight is 5,035 kg. The wheelbase measures 2,794 mm. Ground clearance is 528 mm. Top speed is 30 km/h. Transmission: 24 V/12 R and 36 V/36 R. The engine is air-cooled. Tyres: front 14.9 R 30 AS, rear 18.4 R 38 AS. The model was built in Italy. The fuel is diesel. The bore measures 105 mm. The stroke is 115.5 mm. The compression ratio is 16:1. Maximum torque is reached at 1,597 rpm. Construction: unit construction (no separate frame). Rated output across the AGCO Allis range ranges from 48 to 231 hp; the 8630 sits in the middle of that range with 130 hp. Its immediate neighbours are the 9735 below it with 127 hp and the 9630 above it with 135 hp. Rated output across the AGCO Allis range ranges from 40 to 231 hp; here the 8630 sits in the middle of that range with 119 hp. 58 AGCO Allis models across 14 series are on record.

AGCO Allis 8600 series – mid-size six-cylinder tractors of the early 1990s: 80.9 to 95.6 kW/103 to 119 hp, 6,001 cm³ displacement, 4,930 to 5,035 kg unladen weight

The 8600 series, like the smaller 4600 range, belonged to the tractors AGCO continued to build under the AGCO Allis brand after taking over the North American Deutz-Allis business in 1990/91; it occupied the mid power class with six-cylinder engines. In layout and cab the series directly followed on from the last independent Allis-Chalmers models of the 1980s.

Read on 3 more paragraphs

The register lists here 2 versions with 80.9 to 95.6 kW, or 103 to 119 hp, from six-cylinders of 6,001 cm³ displacement, unladen weights from 4,930 to 5,035 kg, a length of 4,560 to 4,663 mm, a width of 2,286 to 2,350 mm, a height of 2,870 to 2,951 mm, and torque of 347 to 446 Nm at 2,500 rpm.

In this power class AGCO Allis competed with the established six-cylinder tractors of John Deere, Case IH and Ford New Holland for mid-size and larger farms in North America and Europe. In 2001 AGCO dropped the AGCO Allis and AGCO White brands in favour of the corporate AGCO brand; the group had already acquired Massey Ferguson in 1994.

On used 8600s, condition of injection pump and turbocharger, gearbox shift behaviour, tightness of hydraulics and PTO, and rust on mudguards and cab frame count; parts run through the AGCO parts trade. and the condition of wiring loom and instrument panel.

Sources: SpecCodex register, model data: AGCO Allis 8600er-Baureihe, AGCO Corporation (manufacturer)

Technical data

Engine

Engine make	SAMEcorrect
Fuel	dieselcorrect
Power	130 hp (95.6 kW)correct
Rated speed	2,500 rpmcorrect
Torque	446 Nmcorrect
Speed at max. torque	1,597 rpmcorrect
Cylinders	6correct
Displacement	6,001 cm³correct
Bore	105 mmcorrect
Stroke	115.5 mmcorrect
Compression ratio	16correct
Cooling	air-cooledcorrect

Dimensions and weights

Length	4,663 mmcorrect
Width	2,286 mmcorrect
Height	2,951 mmcorrect
Wheelbase	2,794 mmcorrect
Ground clearance	528 mmcorrect
Unladen weight	5,035 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	24 V/12 R and 36 V/36 Rcorrect
Front tyres	14.9 R 30 AScorrect
Rear tyres	18.4 R 38 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Plant	Italycorrect
Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 19 kW/t (96 kW / 5 t)

Power class: Large (100–180 hp)

Stronger than 77% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the AGCO Allis 8630 have?

The AGCO Allis 8630 delivers 130 hp.

How much does the AGCO Allis 8630 weigh?

The unladen weight is 5,035 kg.

What engine does the AGCO Allis 8630 have?

6 cylinders, 6,001 cm³ displacement, Diesel.

How fast does the AGCO Allis 8630 go?

Top speed is 30 km/h.

What are the dimensions of the AGCO Allis 8630?

4,663 mm × 2,286 mm × 2,951 mm.

When was the AGCO Allis 8630 built?

Production years: 1991–1997.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
