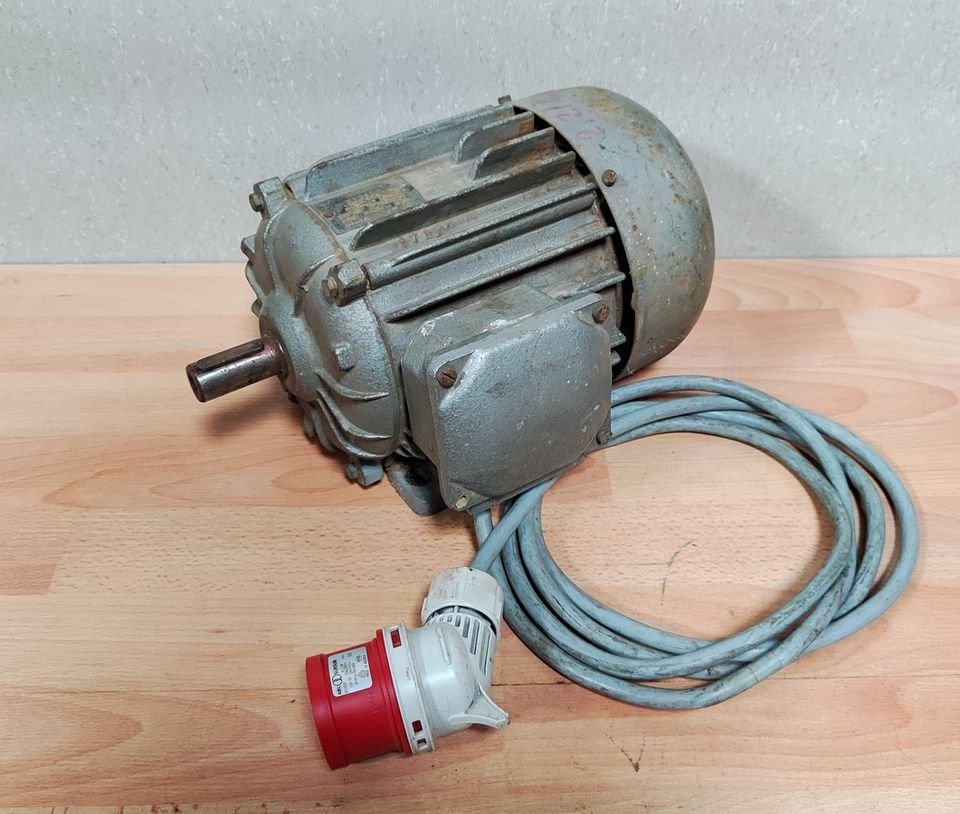

AEG JL1 160L-2
Series: JL1
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AEG JL1 – three-phase motors made in China: frame sizes 100 to 160, 3 to 18.5 kW, two- to six-pole, efficiency 85.5 to 92.3%, supply voltages from 240/415 to 415/690 V
The JL1 range also carries the AEG brand but, unlike the Italian-made AMHE range, is manufactured entirely in China. AEG Electric Motors thus licenses the brand to manufacturers in several countries, which build different ranges in parallel for the Australian and New Zealand market. The type plates JL1 100L-2 through JL1 160M2-2 combine the IEC frame size with an additional code for pole count.
Read on 3 more paragraphs
The register lists 11 versions with 3 to 18.5 kW rated output, two- to six-pole, at supply voltages from 240/415 to 415/690 V. Full-load efficiency ranges from 85.51 to 92.3%, and at 75% load from 86.5 to 92.1%. Frame sizes span 100 to 160, and the protection class is IP55 throughout.
The multi-voltage design with combinations such as 415/690 V makes the JL1 range suitable for export to different mains systems, a common design principle among Chinese motor makers for the international market. The uniform B3,B5,B14,B34,B35 mounting code allows both foot and flange mounting.
For a replacement, these motors call for correctly selecting the supply voltage from the respective combination, plus a visual check of the terminal box, as multi-voltage motors need different wiring depending on the connection chosen. The broad power range from 3 to 18.5 kW covers a wide field, from small workshop drives to mid-sized industrial motors.
Sources: SpecCodex register, model data: AEG JL1, Zulassungsdaten GEMS/MEPS (Australien, Neuseeland)
Technical data
Engine
| Rated output | 18.5 kWcorrect |
|---|
Electrical data
| Rated voltage | 400/690 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP55correct |
| Frame size | 160 L (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B14, B34, B35correct |
| Efficiency at full load | 92.3 %correct |
| Efficiency at 75 % load | 92.1 %correct |
| Efficiency at half load | 91.1 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the AEG JL1 160L-2 have?
The AEG JL1 160L-2 delivers 18.5 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
