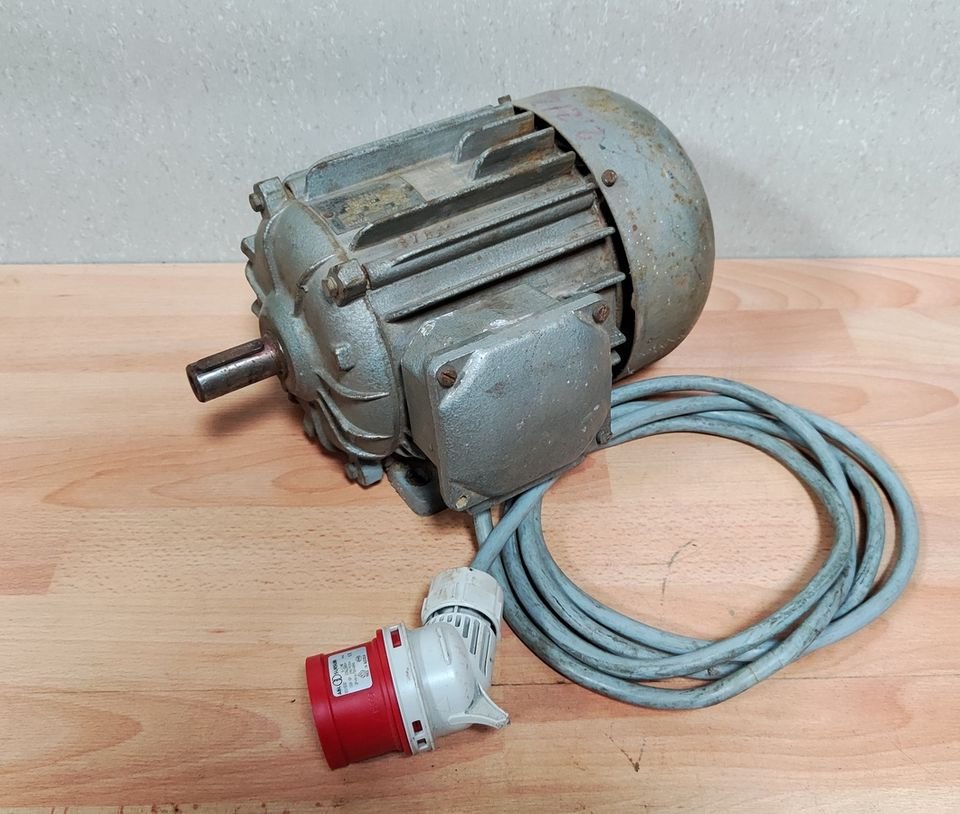

AEG AMHE 90S AA
Series: AMHE
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AEG AMHE – three-phase motors made in Italy: frame sizes 90 to 160, 1.1 to 15 kW, two- to four-pole, 400 V, efficiency 83.8 to 91.8%, GEMS/MEPS registration under AS/NZS 1359.5:2004
The AMHE range comprises AEG-branded three-phase induction motors registered under the Australian and New Zealand energy-efficiency regulations GEMS and MEPS. Italy is entered as the country of manufacture throughout; AEG Electric Motors is a standalone brand licence, under which Italian motor makers such as Lafert have for years built and sold industrial motors. The type plates AMHE 100L BA or AMHE 160L ZA combine the IEC frame size with a letter code for pole count and winding variant.
Read on 3 more paragraphs
The register lists 12 versions with 1.1 to 15 kW rated output, two- to four-pole, at a uniform supply voltage of 400 V. Full-load efficiency ranges from 83.8 to 91.8%, and at 75% load likewise from 83.8 to 91.8%. Frame sizes span 90 to 160, and the protection class is IP55 throughout.
Motors of this power class and protection rating are the standard drive for pumps, fans, conveyor belts and machine tools in industrial and trade applications. The uniform testing under AS/NZS 1359.5:2004 and test method B shows that the entire range was registered under a single, consistent test regime.
For a used purchase or replacement, three-phase motors of this class call mainly for checking the condition of the winding insulation, smooth bearing rotation, and the match between supply voltage and terminal connection and the intended mains. The B3,B5,B14A mounting code shows that the motors can be fitted as either foot- or flange-mounted units, which makes replacement with identical successor models easier.
Sources: SpecCodex register, model data: AEG AMHE, Zulassungsdaten GEMS/MEPS (Australien, Neuseeland)
Technical data
Engine
| Rated output | 1.1 kWcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | 55correct |
| Frame size | 90 S (foot)correct |
| Mounting (IEC 60034-7) | B3, B5, B14Acorrect |
| Efficiency at full load | 83.8 %correct |
| Efficiency at 75 % load | 83.8 %correct |
| Efficiency at half load | 82.8 %correct |
Origin and approval
| Country of manufacture | Italycorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the AEG AMHE 90S AA have?
The AEG AMHE 90S AA delivers 1.1 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
