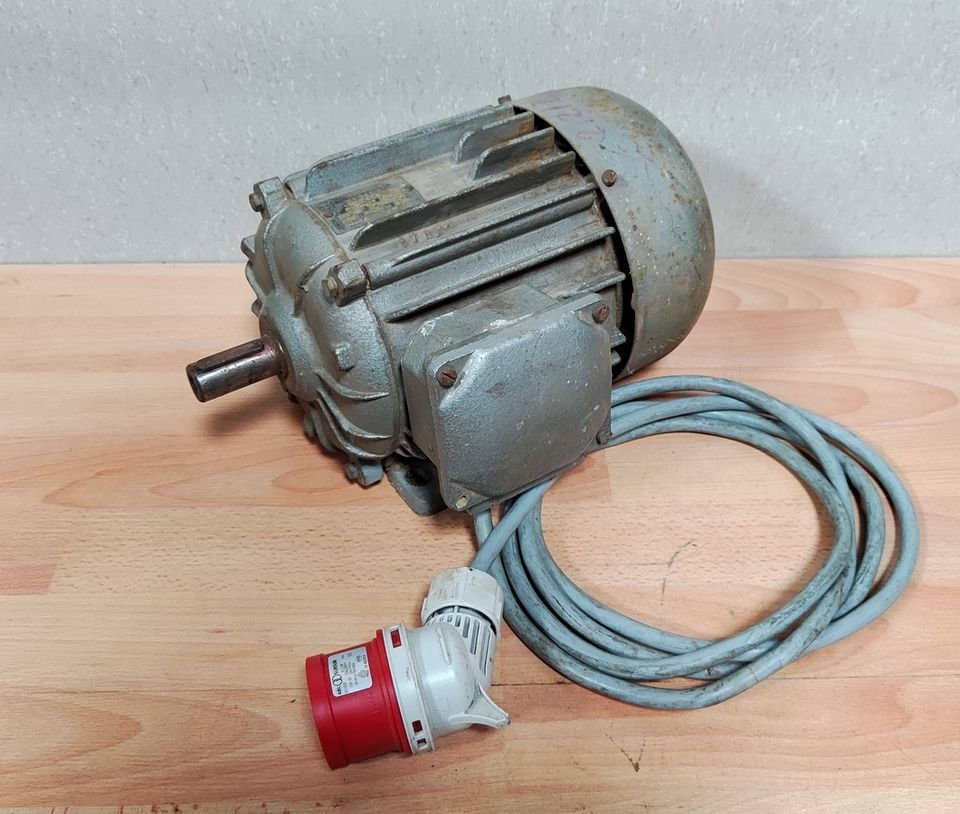

AEG AMHE 100L AA

Series: AMHE

Source: food.buzz-club.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The AEG AMHE 100L AA comes from the AMHE series. The rated output is 2.2 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 100 L in foot-mounted form. The protection class is IP55. The efficiency is 86.4 per cent at full load, 86.1 per cent at 75 per cent load and 85.5 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and B14A. The motor is built in Italy. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). The AMHE series covers 12 models. Rated output within it ranges from 1.1 to 15 kW; the AMHE 100L AA sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the AMHE 90L BA below it with 1.5 kW and the AMHE 100L BA above it with 3 kW. 121 AEG models across 4 series are on record.

AEG AMHE – three-phase motors made in Italy: frame sizes 90 to 160, 1.1 to 15 kW, two- to four-pole, 400 V, efficiency 83.8 to 91.8%, GEMS/MEPS registration under AS/NZS 1359.5:2004

The AMHE range comprises AEG-branded three-phase induction motors registered under the Australian and New Zealand energy-efficiency regulations GEMS and MEPS. Italy is entered as the country of manufacture throughout; AEG Electric Motors is a standalone brand licence, under which Italian motor makers such as Lafert have for years built and sold industrial motors. The type plates AMHE 100L BA or AMHE 160L ZA combine the IEC frame size with a letter code for pole count and winding variant.

Read on 3 more paragraphs

The register lists 12 versions with 1.1 to 15 kW rated output, two- to four-pole, at a uniform supply voltage of 400 V. Full-load efficiency ranges from 83.8 to 91.8%, and at 75% load likewise from 83.8 to 91.8%. Frame sizes span 90 to 160, and the protection class is IP55 throughout.

Motors of this power class and protection rating are the standard drive for pumps, fans, conveyor belts and machine tools in industrial and trade applications. The uniform testing under AS/NZS 1359.5:2004 and test method B shows that the entire range was registered under a single, consistent test regime.

For a used purchase or replacement, three-phase motors of this class call mainly for checking the condition of the winding insulation, smooth bearing rotation, and the match between supply voltage and terminal connection and the intended mains. The B3,B5,B14A mounting code shows that the motors can be fitted as either foot- or flange-mounted units, which makes replacement with identical successor models easier.

Sources: SpecCodex register, model data: AEG AMHE, Zulassungsdaten GEMS/MEPS (Australien, Neuseeland)

Technical data

Engine

Rated output2.2 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection class55correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14Acorrect
Efficiency at full load86.4 %correct
Efficiency at 75 % load86.1 %correct
Efficiency at half load85.5 %correct

Origin and approval

Country of manufactureItalycorrect

Other data

Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the AEG AMHE 100L AA have?

The AEG AMHE 100L AA delivers 2.2 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
