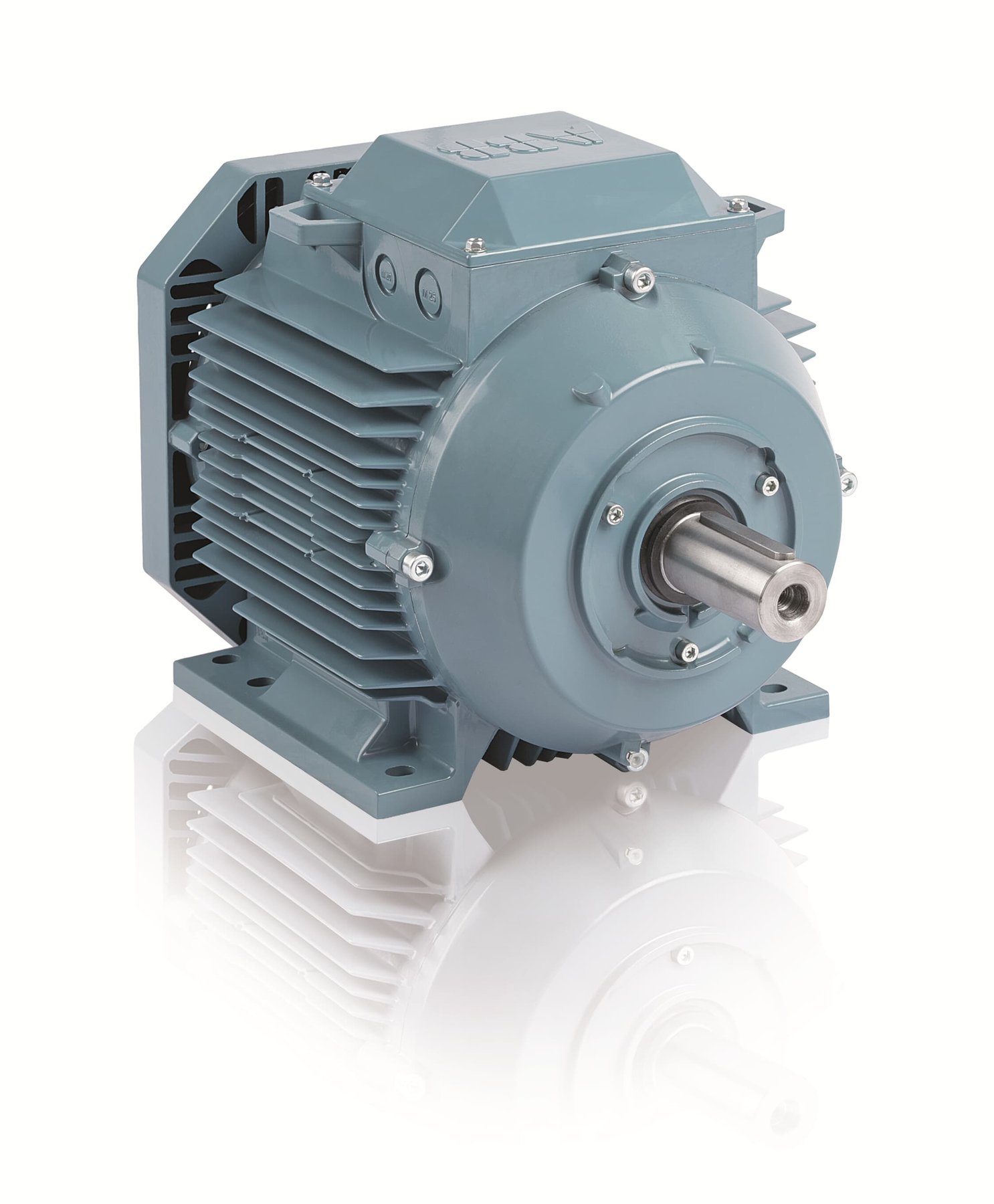

ABB M3ARF/S112M6

Series: M3ARF

Source: https://new.abb.com/drives/sv/artiklar/produktbilder-materia

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The M3ARF series from ABB includes the M3ARF/S112M6. The rated output is 2.2 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 400 V. The housing is frame size 112. The protection class is IP55. The efficiency is 83.6 per cent at full load, 84.2 per cent at 75 per cent load and 82.6 per cent at half load. The motor weighs 33 kg. At full load it delivers 22.2 Nm. Mounting arrangements to IEC 60034-7: B3, B5 and B35. The motor is built in Sweden. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). The M3ARF series covers 30 models. Rated output within it ranges from 0.75 to 22 kW; the M3ARF/S112M6 sits at the bottom of that range with 2.2 kW. Its immediate neighbours are the M3ARF/S90S2 below it with 1.5 kW and the M3ARF/S100L2 above it with 3 kW. 2141 ABB models across 12 series are on record.

ABB M3ARF – register of low-voltage standard motors from ABB's M3 platform: 30 versions, 0.75 to 22 kW, 2- to 8-pole, IP55, 400 V, made in Sweden and Spain

The M3ARF range belongs to ABB's global M3 platform for three-phase low-voltage standard motors, through which the group formed in 1988 from the merger of ASEA and BBC standardises its IEC motors worldwide. The model designation follows the pattern M3ARF/S plus frame size and pole count, for example M3ARF/S132S4 for the four-pole 132S version or M3ARF/S160L8 for the eight-pole 160L version.

Read on 3 more paragraphs

The register lists here 30 versions with 0.75 to 22 kW, two- to eight-pole, at a uniform mains voltage of 400 V. Full-load efficiencies range from 80.9 to 93.3% and at 75% load from 79.3 to 93.9%. Frame sizes run from 80 to 180 under IEC, all motors carry protection rating IP55, mounting codes range from B3/B5/B35 to combinations with B14 and B34; manufacturing is mainly in Sweden, with further output from Spain and Italy, tested to AS/NZS 1359.5:2004 with test method B.

In the lower and middle power range, M3ARF competes with the standard-motor ranges of Siemens and WEG for applications in pumps, fans, conveyors and small compressors; manufacturing in Sweden and Spain places the range in the European core of ABB's low-voltage motor programme.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and efficiency figure. Spares and rewind service run through ABB's motor service network.

Sources: SpecCodex register, model data: ABB M3ARF, ABB (manufacturer)

Technical data

Engine

Rated output2.2 kWcorrect

Dimensions and weights

Weight33 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles6correct
Protection class55correct
Frame size112correct
Mounting (IEC 60034-7)B3, B5, B35correct
Efficiency at full load83.6 %correct
Efficiency at 75 % load84.2 %correct
Efficiency at half load82.6 %correct

Origin and approval

Country of manufactureSwedencorrect

Other data

Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct
