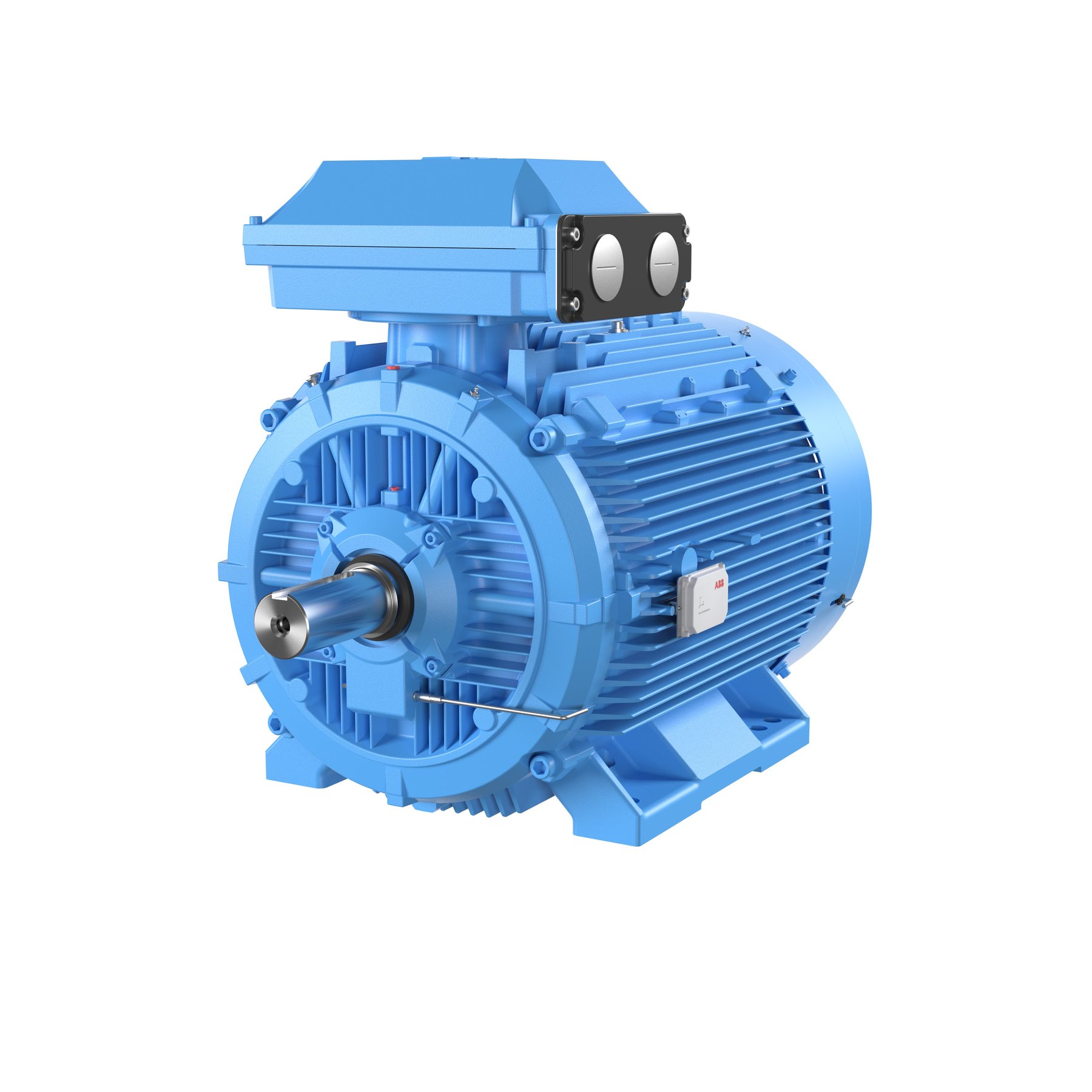

ABB M3ARF/S100LD4

Series: M3ARF

Source: https://ru.made-in-china.com/co_shiny-control/product_M2bax1

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The ABB M3ARF/S100LD4 is a three-phase induction motor. The rated output is 3 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 100. The protection class is IP55. The efficiency is 87.4 per cent at full load, 87 per cent at 75 per cent load and 86 per cent at half load. The motor weighs 29 kg. At full load it delivers 19.7 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B35, B14 and B34. The motor is built in Spain. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the ABB range ranges from 0.75 to 185 kW; the M3ARF/S100LD4 sits at the bottom of that range with 3 kW. Its immediate neighbours are the M3MA 90 MB 2 below it with 2.2 kW and the M2BA 112 MB 4B above it with 4 kW. 2143 ABB models across 2 series are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

ABB M3ARF – register of low-voltage standard motors from ABB's M3 platform: 30 versions, 0.75 to 22 kW, 2- to 8-pole, IP55, 400 V, made in Sweden and Spain

The M3ARF range belongs to ABB's global M3 platform for three-phase low-voltage standard motors, through which the group formed in 1988 from the merger of ASEA and BBC standardises its IEC motors worldwide. The model designation follows the pattern M3ARF/S plus frame size and pole count, for example M3ARF/S132S4 for the four-pole 132S version or M3ARF/S160L8 for the eight-pole 160L version.

Read on 3 more paragraphs

The register lists here 30 versions with 0.75 to 22 kW, two- to eight-pole, at a uniform mains voltage of 400 V. Full-load efficiencies range from 80.9 to 93.3% and at 75% load from 79.3 to 93.9%. Frame sizes run from 80 to 180 under IEC, all motors carry protection rating IP55, mounting codes range from B3/B5/B35 to combinations with B14 and B34; manufacturing is mainly in Sweden, with further output from Spain and Italy, tested to AS/NZS 1359.5:2004 with test method B.

In the lower and middle power range, M3ARF competes with the standard-motor ranges of Siemens and WEG for applications in pumps, fans, conveyors and small compressors; manufacturing in Sweden and Spain places the range in the European core of ABB's low-voltage motor programme.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and efficiency figure. Spares and rewind service run through ABB's motor service network.

Sources: Kennwerte der Modelle ABB M3ARF, ABB (Hersteller)

Technical data

Engine

Rated output3 kWcorrect

Dimensions and weights

Weight29 kgcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection class55correct
Frame size100correct
Mounting (IEC 60034-7)B3, B5, B35, B14, B34correct
Efficiency at full load87.4 %correct
Efficiency at 75 % load87 %correct
Efficiency at half load86 %correct

Origin and approval

Country of manufactureSpaincorrect

Other data

Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct
