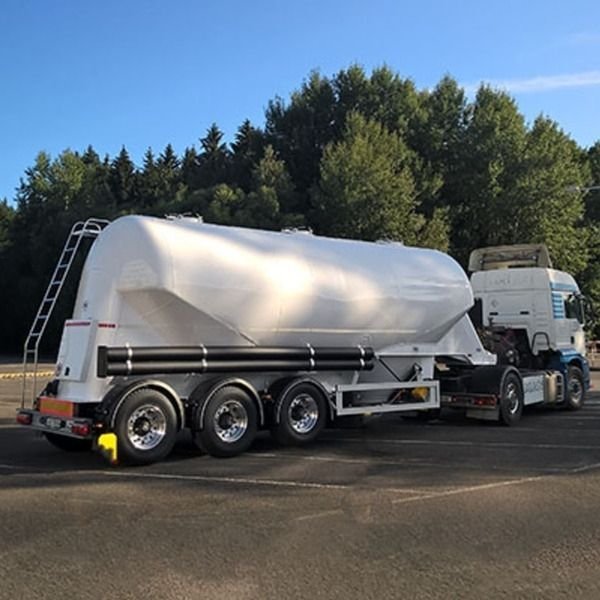

Zvvz NCEA 24-125
Built: 2006 · Series: Other models
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zvvz – other models: the collective page for heavy low-loader semi-trailers outside the named series, Domex, HTD, NCEA, NCG, NSX and V types rated at 35.5 to 44.8 t gross weight
This page gathers Zvvz trailers not assigned to a named series – entirely low-loader semi-trailers for heavy transport, badged Domex V4A36, HTD 40/3S, NCEA 24-125, NCG 40, NSX, V2A36, V4A36 and VA236. The digits in the type codes – 40 in HTD 40/3S or 24 in NCEA 24-125, for instance – typically denote payload or axle load in tonnes for this vehicle class, while letter combinations such as NCEA or NSX mark individual series variants from the manufacturer.
Read on 3 more paragraphs
The register lists 8 versions here with unladen weights from 4,400 to 8,880 kg and gross weights from 35,500 to 44,800 kg. Lengths range from 9,770 to 12,960 mm, widths from 2,450 to 2,550 mm.
With gross weights approaching 45 tonnes and lengths of up to nearly 13 metres, these semi-trailers belong to the class of heavy low-loaders used to transport construction machinery, agricultural equipment and industrial plant. The large ratio of payload to unladen weight – in places over 30 tonnes of payload against under 9 tonnes unladen – is typical of pure transport semi-trailers without their own superstructure.
When buying used, check the frame and main beams for cracks and deformation, the axle assemblies, the brake system and, on lowering versions, the hydraulics of the lowering and ramp functions. The kingpin, air-suspension bellows and the wear plates of the bearing surface belong on the checklist along with the lighting system; axles and brake components are generally available through the independent commercial-vehicle parts trade.
Sources: SpecCodex register, model data: Zvvz (weitere Modelle)
Technical data
Dimensions and weights
| Length | 9,770 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 8,300 mmcorrect |
| Unladen weight | 4,630 kgcorrect |
| Gross vehicle weight | 39,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Zvvz NCEA 24-125 weigh?
The unladen weight is 4,630 kg.
What is the gross vehicle weight of the Zvvz NCEA 24-125?
39,000 kg.
Up to what speed is the Zvvz NCEA 24-125 approved?
Approved up to 100 km/h.
What are the dimensions of the Zvvz NCEA 24-125?
9,770 mm × 2,500 mm.
When was the Zvvz NCEA 24-125 built?
Production years: 2006.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
