Zickler 3754
Built: 1966–1967 · Series: ES
More machines from model year 1966
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

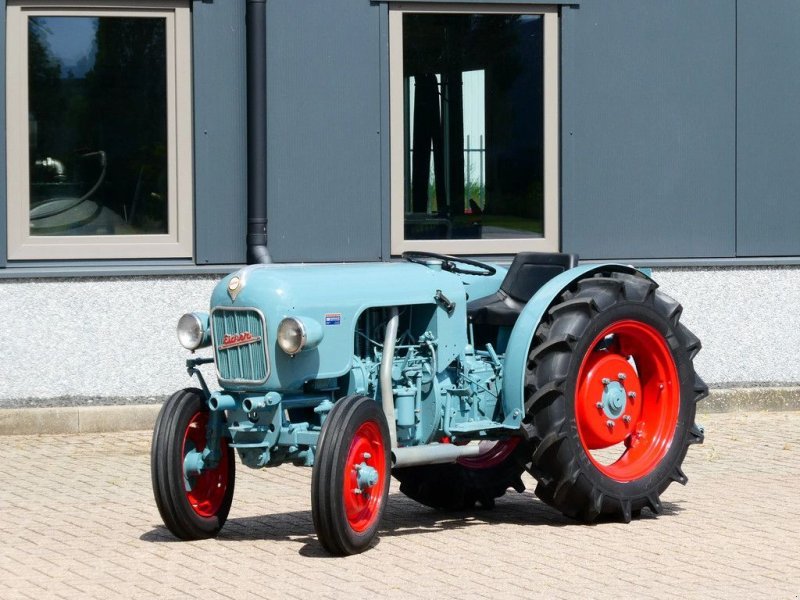

Zickler 3754 (ES) – air-cooled two-cylinder tractor built 1966 to 1967: 1,963 cc displacement, 30 hp, 920 mm wide, top speed of 18.79 km/h, 1,380 mm wheelbase
The Zickler 3754 of the ES line was built between 1966 and 1967. Nothing certain can be said about the company itself from the recorded values, so the description below covers the machine class of this narrow small tractor.
Read on 3 more paragraphs
The two-cylinder diesel engine is air-cooled, has a displacement of 1,963 cc and produces 30 hp at 2,000 rpm. With a 1,380 mm wheelbase and 920 mm width, the 3754 reaches a design top speed of 18.79 km/h.
Air-cooled two-cylinder engines were common among several makers of small tractors, as they need no coolant or radiator and are therefore less prone to maintenance-related failures. At only 920 mm wide, the 3754 belongs to the narrow-track class needed for work between tight rows of trees or vines and on small, awkwardly shaped plots.
When buying such a narrow, air-cooled small tractor, the condition of the cooling fins on the cylinder matters most, as dirt and damage there quickly lead to overheating. As parts for such small makers are only available in limited quantities, the condition of the engine and the steering gear weighs more heavily on the value than with more widespread brands. The seals of the fuel system are also worth checking closely, given how long many of these machines have stood unused, and any missing decals or badges will typically not be replaced from stock.
Sources: SpecCodex-Register: Kennwerte des Modells Zickler 3754 (ES)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 30 hpcorrect |
| Power | 30 hpcorrect |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,963 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 1,050 mmcorrect |
|---|---|
| Width | 920 mmcorrect |
| Height | 1,050 mmcorrect |
| Wheelbase | 1,380 mmcorrect |
| Ground clearance | 230 mmcorrect |
| Unladen weight | 1,050 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6/1correct |
| Forward gears | 6correct |
| Reverse gears | 1correct |
| Front tyres | 4.00-12 AS Frontcorrect |
| Rear tyres | 7, 50 x 18 AScorrect |
| Top speed | 18.79 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 175correct |
Where this model stands
Power-to-weight ratio: 21 kW/t (22 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 17% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Zickler 3754 have?
The Zickler 3754 delivers 30 hp.
How much does the Zickler 3754 weigh?
The unladen weight is 1,050 kg.
What engine does the Zickler 3754 have?
2 cylinders, 1,963 cm³ displacement, Diesel.
How fast does the Zickler 3754 go?
Top speed is 18.8 km/h.
What are the dimensions of the Zickler 3754?
1,050 mm × 920 mm × 1,050 mm.
When was the Zickler 3754 built?
Production years: 1966–1967.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
