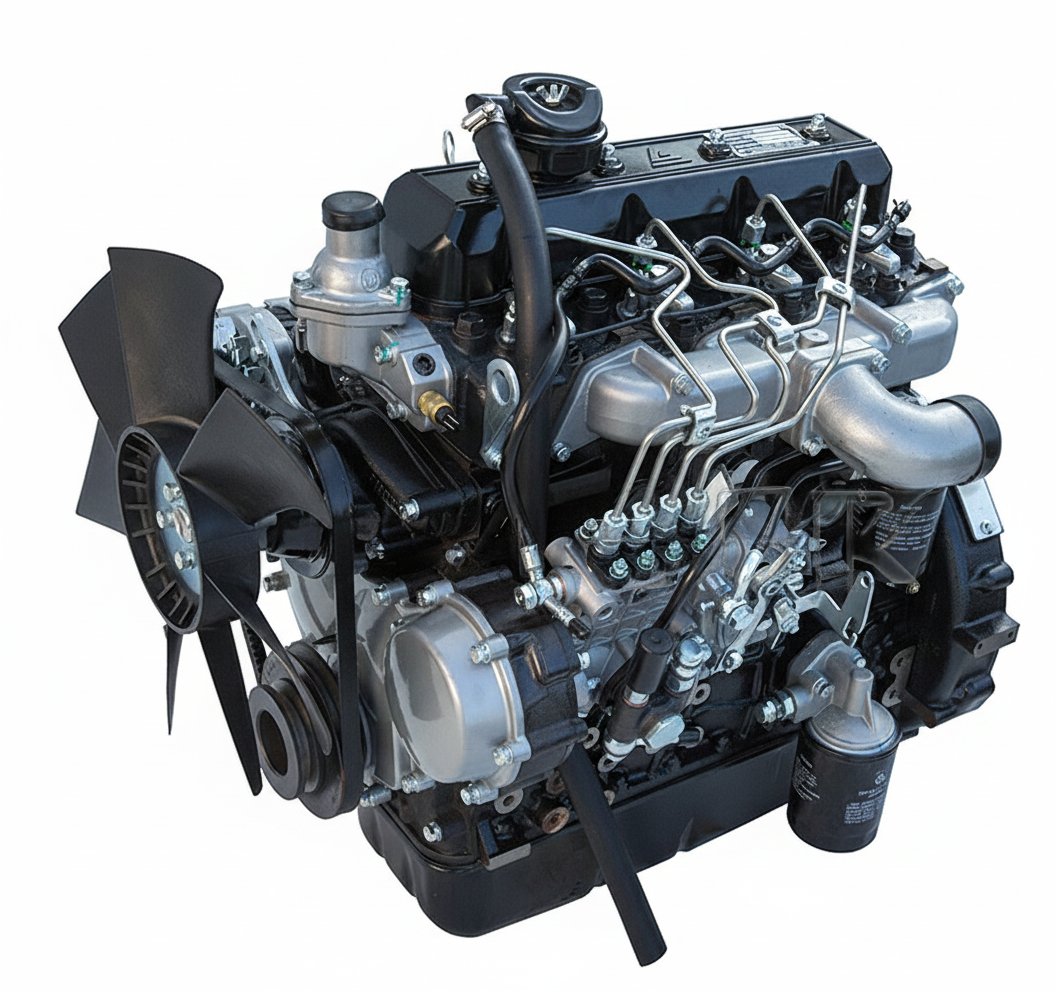

Zhejiang Xinchai A498BZD
Built: 2011-2012 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zhejiang Xinchai – other nonroad diesel engines: the A498 range outside the named models, roughly 3.2-litre four-cylinder with 27 to 36 kW, federal-only certification without California
Zhejiang Xinchai Machinery, based in Shaoxing in China's Zhejiang province, builds small and mid-size diesel engines mainly for agricultural machinery, generators and light construction equipment. This page gathers the A498 range the register could not assign to a named model; the bore (98 mm) and stroke (105 mm) of the four cylinders work out to a displacement of roughly 3.2 litres.
Read on 3 more paragraphs
The register lists here 8 versions with 27 to 36 kW rated output at 1,800 to 2,400 rpm, all inline four-cylinder engines with direct injection. The fuel entered is low-sulphur diesel (300 to 500 ppm), the emission stage is consistently Interim Tier 4, the power category is 19 up to under 37 kW. Maximum torque runs from 143 to 191 Nm at 1,680 to 1,800 rpm. All 8 engines are certified only for states outside California, with no separate California approval recorded.
Engines of this small power class are the standard drive for compact generators, small farm machines and entry-level light construction equipment; Xinchai positions itself here as a low-cost alternative to established Japanese brands such as Kubota or Yanmar, mainly through OEM supply to smaller equipment makers.
On a used purchase, the condition of the injection pump and glow-plug system, cold-start behaviour, the tightness of crankshaft seals and valve cover, and oil consumption all matter. Since the engines are certified only for states outside California, parts and service availability in the US is more regionally limited than with larger import brands.
Sources: SpecCodex register, model data: Zhejiang Xinchai A498 (weitere Nonroad-Dieselmotoren), Xinchai (manufacturer), EPA-Zertifizierungsdaten Motoren
Technical data
Engine
| Engine family | BZHXL3.17AAAcorrect |
|---|---|
| Fuel | 300-500 ppm Low Sulfur Dieselcorrect |
| Rated output | 36 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 191 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 98 mmcorrect |
| Stroke | 105 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Sales region | USA excluding Californiacorrect |
|---|
Frequently asked questions
How much power does the Zhejiang Xinchai A498BZD have?
The Zhejiang Xinchai A498BZD delivers 36 kW.
When was the Zhejiang Xinchai A498BZD built?
Production years: 2011-2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data
