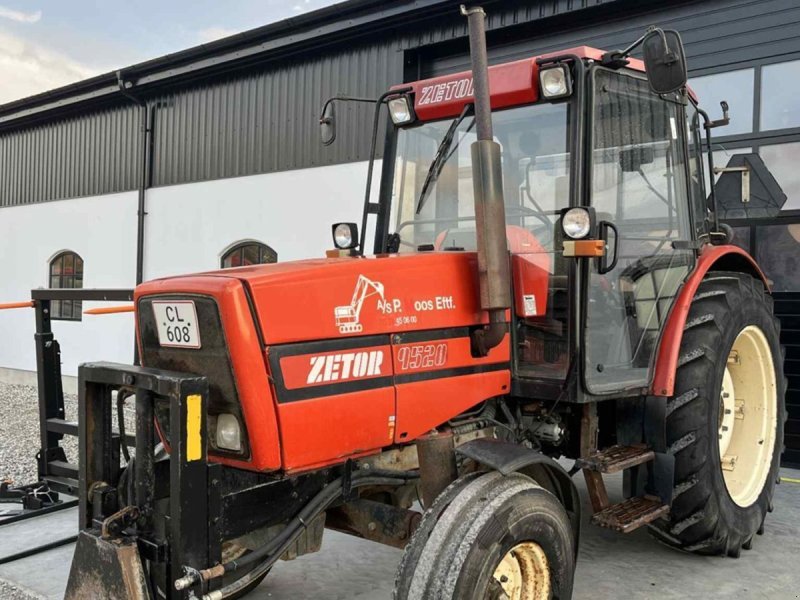

Zetor 9520/9540
Bauzeit: 1992–1999 · Baureihe: UR-3 Baureihe
Technische Daten
| Construction | Blockbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 4 |
| Displacement cm3 | 4156 cm3 |
| Drive type | Heck- oder Allradantrieb |
| Fuel | Diesel |
| Gearbox | 18 V/6 R oder 16 V/4 R |
| Ground clearance mm | 352 mm |
| Height mm | 2645 mm |
| Length mm | 4190 mm |
| Power km | 94 KM |
| Power kw | 69.1 kW |
| Rated rpm | 2.200 obr./min |
| Tires front | 7.50-20 ASF (A: 12.4 R 24 AS) |
| Tires rear | 16.9 R 38 AS |
| Top speed kmh | 30 km/h |
| Weight kg | 3700 kg |
| Wheelbase mm | 2375 mm |
| Width mm | 1950 mm |
Weitere Modelle der Baureihe
Quellen: [1]
