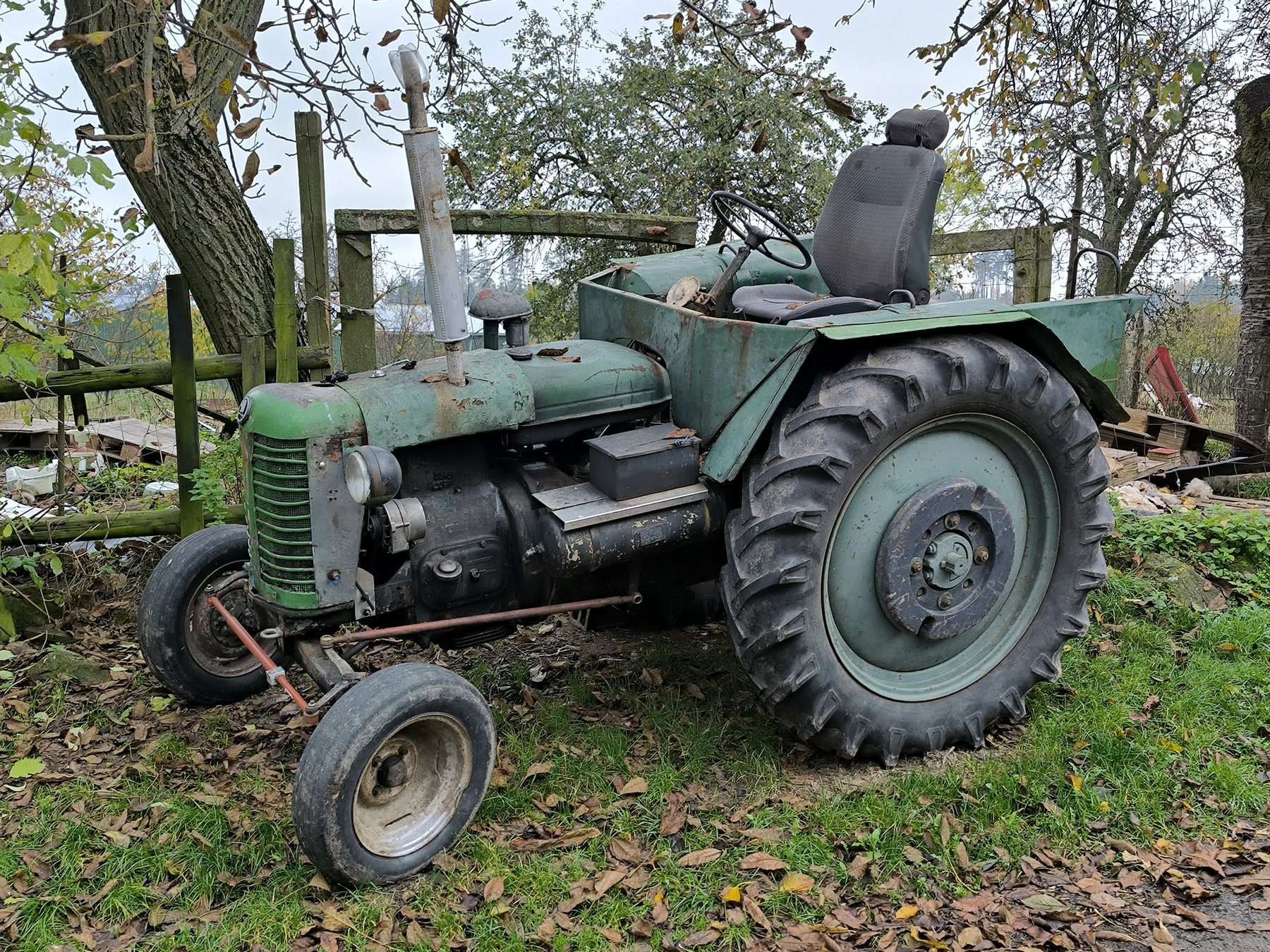

Zetor Z-25 – specifications
Built: 1946–1951 · Series: Other models
The Zetor Z-25 is a machine built by Zetor. Production: 1946–1951. The engine delivers 25 hp (18.4 kW), has 2 cylinders, with a displacement of 2,078 cm³. Rated speed is 1,800 rpm. The machine is 3,200 mm long, 1,800 mm wide and 1,750 mm high. The unladen weight is 1,826 kg. The wheelbase measures 1,900 mm. Ground clearance is 320 mm. Top speed is 20 km/h. Transmission: 5 V/1 R. The engine is water-cooled. Tyres: front 5.50-16 ASF, rear 11.25-24 AS. The fuel is diesel. The bore measures 105 mm. The stroke is 120 mm. The compression ratio is 18:1. Construction: unit construction (no separate frame). Rated output across the Zetor range ranges from 15 to 160 hp; the Z-25 sits at the bottom of that range with 25 hp. Its immediate neighbours are the Z-25 K below it with 24 hp and the 3011/3045 above it with 33 hp. Rated output across the Zetor range ranges from 11 to 117.7 kW; here the Z-25 sits at the bottom of that range with 18.4 kW. 371 Zetor models across 27 series are on record.
Data for the version built 1946–1951 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1946
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zetor — where the name comes from and how the ranges connect, models from 11 to 120 kW, engines including Caterpillar, Perkins, Zetor and Deutz
The brand name is a compound: the "Z" of the Brno arms factory Zbrojovka and the ending "-tor". It was there, in March 1946, that the first three Z 25 tractors left the line — an eightieth anniversary in 2026.
Read on 4 more paragraphs
Order among the many Zetor types came in the 1960s with the unified UR I and UR II ranges. They brought more modern engineering and, above all, shared central components — the reason parts can be swapped across model boundaries. In the late 1960s the UR II joined the programme, designed for stronger machines and more demanding work.
Those lines still run today. The UR II range was revised and reached the market in 1998 as the Zetor Forterra. Around the turn of the millennium came the Proxima and Forterra ranges together with the modernised Major and Crystal — the generation carrying the brand through its recent history.
Anyone assessing an older model should therefore identify the base range first. A tractor from the UR II family is technically related to the Forterra, even with decades between them. That kinship decides how readily parts can be found — with a brand spanning eighty years of models, that is the most practical question of all.
Across the whole power range gathered here, 11 to 120 kW, the ISO 730 three-point linkage spans Category 0 on the smallest post-war models to Category II on the stronger series; the 540 rpm PTO speed remained, across the decades, the unchanged common denominator of every Zetor generation.
Sources: SpecCodex register, model data: Zetor (weitere Modelle), Zetor
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.4 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 2,078 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 18correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,200 mmcorrect |
|---|---|
| Width | 1,800 mmcorrect |
| Height | 1,750 mmcorrect |
| Wheelbase | 1,900 mmcorrect |
| Ground clearance | 320 mmcorrect |
| Unladen weight | 1,826 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 Rcorrect |
| Front tyres | 5.50-16 ASFcorrect |
| Rear tyres | 11.25-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 10.1 kW/t (18 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
