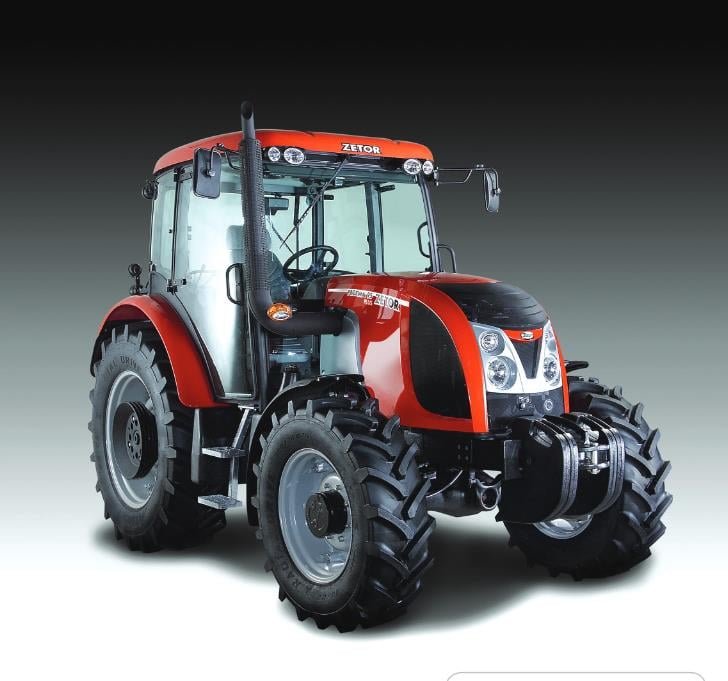

Zetor 9541 PROXIMA PLUS

Built: 2008-2009 · Series: Other models

More machines from model year 2008

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Zetor 9541 PROXIMA PLUS is a machine built by Zetor. Production: 2008-2009. The engine delivers 96 hp (58 kW), has 4 cylinders, with a displacement of 4,156 cm³. The machine is 4,827 mm long and 2,319 mm wide. The unladen weight is 4,600 kg. The engine is water-cooled. The model was built in Czech Republic. The gross vehicle weight is 6,000 kg. The fuel is diesel. Rated output across the Zetor range ranges from 15 to 165 hp; the 9541 PROXIMA PLUS sits in the middle of that range with 96 hp. Its immediate neighbours are the 10045 below it with 95 hp and the 95 Proxima Power above it with 97 hp. Rated output across the Zetor range ranges from 11 to 123 kW; here the 9541 PROXIMA PLUS sits in the middle of that range with 58 kW. 371 Zetor models across 27 series are on record.

Zetor — where the name comes from and how the ranges connect, models from 11 to 120 kW, engines including Caterpillar, Perkins, Zetor and Deutz

The brand name is a compound: the "Z" of the Brno arms factory Zbrojovka and the ending "-tor". It was there, in March 1946, that the first three Z 25 tractors left the line — an eightieth anniversary in 2026.

Read on 4 more paragraphs

Order among the many Zetor types came in the 1960s with the unified UR I and UR II ranges. They brought more modern engineering and, above all, shared central components — the reason parts can be swapped across model boundaries. In the late 1960s the UR II joined the programme, designed for stronger machines and more demanding work.

Those lines still run today. The UR II range was revised and reached the market in 1998 as the Zetor Forterra. Around the turn of the millennium came the Proxima and Forterra ranges together with the modernised Major and Crystal — the generation carrying the brand through its recent history.

Anyone assessing an older model should therefore identify the base range first. A tractor from the UR II family is technically related to the Forterra, even with decades between them. That kinship decides how readily parts can be found — with a brand spanning eighty years of models, that is the most practical question of all.

Across the whole power range gathered here, 11 to 120 kW, the ISO 730 three-point linkage spans Category 0 on the smallest post-war models to Category II on the stronger series; the 540 rpm PTO speed remained, across the decades, the unchanged common denominator of every Zetor generation.

Sources: SpecCodex register, model data: Zetor (weitere Modelle), Zetor

Technical data

Engine

Fueldieselcorrect
Power96 hp (58 kW)correct
Cylinders4correct
Displacement4,156 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length4,827 mmcorrect
Width2,319 mmcorrect
Unladen weight4,600 kgcorrect
Gross vehicle weight6,000 kgcorrect

Drivetrain and chassis

Driveselectable four-wheel drivecorrect

Origin and approval

PlantCzech Republiccorrect

Where this model stands

Power-to-weight ratio: 12.6 kW/t (58 kW / 4.6 t)

Power class: Universal (40–100 hp)

Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Zetor 9541 PROXIMA PLUS have?

The Zetor 9541 PROXIMA PLUS delivers 96 hp.

How much does the Zetor 9541 PROXIMA PLUS weigh?

The unladen weight is 4,600 kg.

What is the gross vehicle weight of the Zetor 9541 PROXIMA PLUS?

6,000 kg.

What engine does the Zetor 9541 PROXIMA PLUS have?

4 cylinders, 4,156 cm³ displacement, Diesel.

What are the dimensions of the Zetor 9541 PROXIMA PLUS?

4,827 mm × 2,319 mm.

When was the Zetor 9541 PROXIMA PLUS built?

Production years: 2008-2009.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
