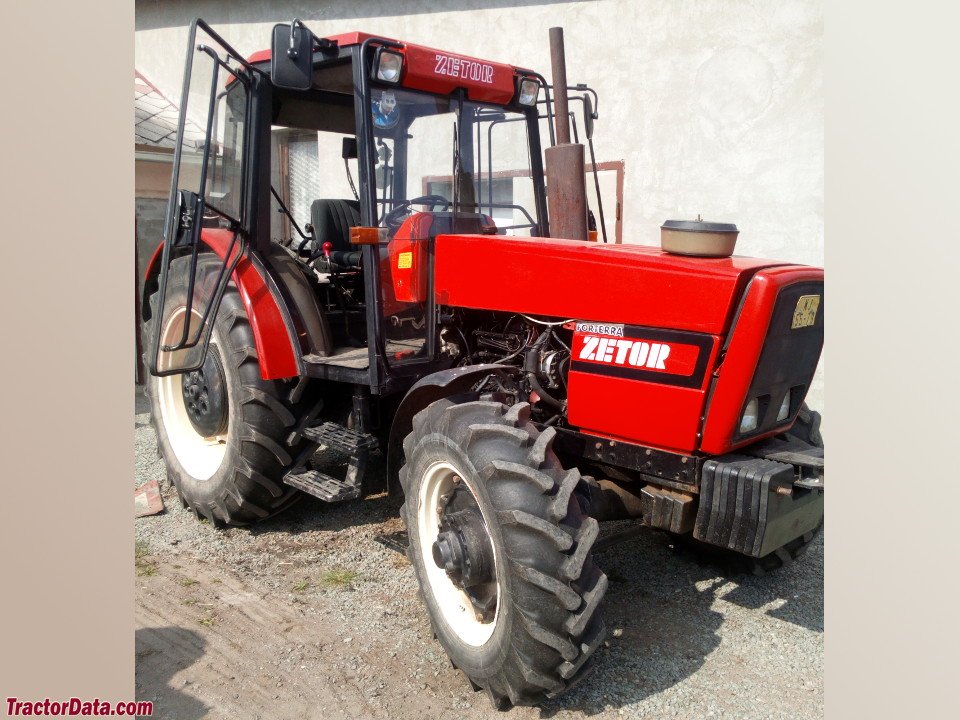

Zetor 9540
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Zetor 9540 is a four-cylinder tractor from the Czech maker Zetor of Brno, built from 1991 to 1999. It belonged to the third generation of the Zetor unified line, which was developed into the Forterra around the turn of the millennium. A turbocharged Zetor four-cylinder drives it.
The engine displaces 4,156 cm³ and delivers 94 PS (69.1 kW) at a rated 2,200 rpm, with torque reaching 373 Nm. The turbocharger raises output markedly over a naturally aspirated engine and gives the tractor reserves for plough, cultivator and trailer. The gearbox is offered as 18 V/6 R or 16 V/4 R, and the large number of forward gears allows speed to be matched finely to the implement. The tank holds 105 l, the Category II linkage carries the usual implements, and the PTO runs at 540/1000 rpm.
In the Zetor range the 9540 was one of the four-cylinder models of the line of its day and was used on mid-sized and larger farms in the Czech Republic, Slovakia and Poland for arable work, forage harvest and haulage. Its simple, repair-friendly technology made it popular with farmers looking for an inexpensive tractor.
Zetor — where the name comes from and how the ranges connect, models from 11 to 120 kW, engines including Caterpillar, Perkins, Zetor and Deutz
The brand name is a compound: the "Z" of the Brno arms factory Zbrojovka and the ending "-tor". It was there, in March 1946, that the first three Z 25 tractors left the line — an eightieth anniversary in 2026.
Read on 4 more paragraphs
Order among the many Zetor types came in the 1960s with the unified UR I and UR II ranges. They brought more modern engineering and, above all, shared central components — the reason parts can be swapped across model boundaries. In the late 1960s the UR II joined the programme, designed for stronger machines and more demanding work.
Those lines still run today. The UR II range was revised and reached the market in 1998 as the Zetor Forterra. Around the turn of the millennium came the Proxima and Forterra ranges together with the modernised Major and Crystal — the generation carrying the brand through its recent history.
Anyone assessing an older model should therefore identify the base range first. A tractor from the UR II family is technically related to the Forterra, even with decades between them. That kinship decides how readily parts can be found — with a brand spanning eighty years of models, that is the most practical question of all.
Across the whole power range gathered here, 11 to 120 kW, the ISO 730 three-point linkage spans Category 0 on the smallest post-war models to Category II on the stronger series; the 540 rpm PTO speed remained, across the decades, the unchanged common denominator of every Zetor generation.
Sources: SpecCodex register, model data: Zetor (weitere Modelle), Zetor
Technical data
Engine
| Power | 94 hp (69.1 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 373 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
Drivetrain and chassis
| Gearbox | 18 V/6 R or 16 V/4 Rcorrect |
|---|
Working data
| Fuel tank capacity | 105 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Zetor 9540 have?
The Zetor 9540 delivers 94 hp.
What engine does the Zetor 9540 have?
4 cylinders, 4,156 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
