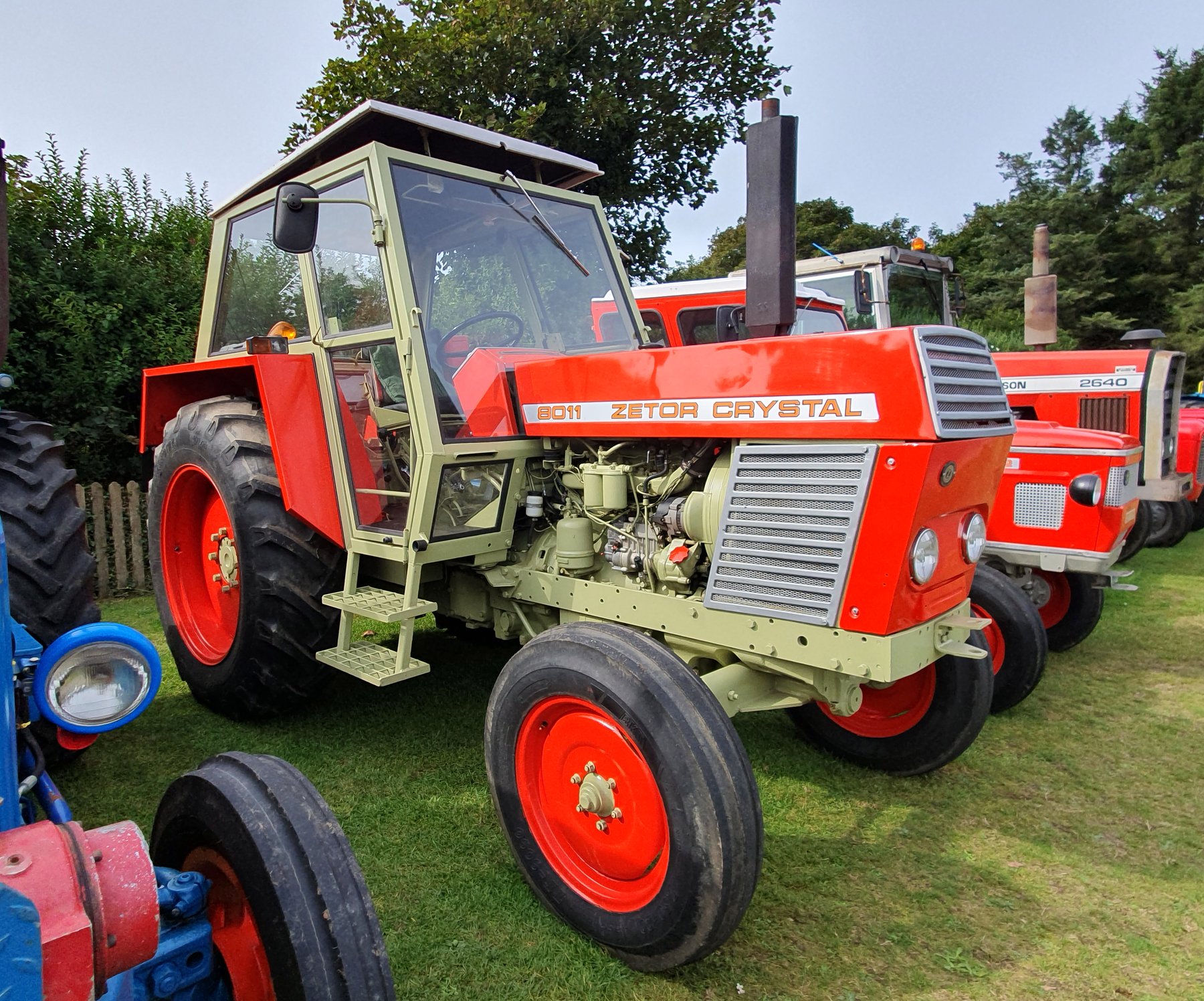

Zetor 8011 CRYSTAL

Built: 1975-1977 · Series: Other models

More machines from model year 1975

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Zetor 8011 CRYSTAL is a machine built by Zetor. Production: 1975-1977. The engine delivers 59 kW, has 4 cylinders, with a displacement of 4,560 cm³. The machine is 3,940 mm long and 2,450 mm wide. The unladen weight is 3,740 kg. The gross vehicle weight is 10,420 kg. The gearbox offers 16 gears. Rated output across the Zetor range ranges from 11 to 123 kW; the 8011 CRYSTAL sits in the middle of that range with 59 kW. Its immediate neighbours are the 8011 below it with 58.8 kW and the 7320/7340 above it with 59.6 kW. Unladen weight across the Zetor range ranges from 1,300 to 6,350 kg; here the 8011 CRYSTAL sits in the middle of that range with 3,740 kg. 371 Zetor models across 27 series are on record.

Zetor — where the name comes from and how the ranges connect, models from 11 to 120 kW, engines including Caterpillar, Perkins, Zetor and Deutz

The brand name is a compound: the "Z" of the Brno arms factory Zbrojovka and the ending "-tor". It was there, in March 1946, that the first three Z 25 tractors left the line — an eightieth anniversary in 2026.

Read on 4 more paragraphs

Order among the many Zetor types came in the 1960s with the unified UR I and UR II ranges. They brought more modern engineering and, above all, shared central components — the reason parts can be swapped across model boundaries. In the late 1960s the UR II joined the programme, designed for stronger machines and more demanding work.

Those lines still run today. The UR II range was revised and reached the market in 1998 as the Zetor Forterra. Around the turn of the millennium came the Proxima and Forterra ranges together with the modernised Major and Crystal — the generation carrying the brand through its recent history.

Anyone assessing an older model should therefore identify the base range first. A tractor from the UR II family is technically related to the Forterra, even with decades between them. That kinship decides how readily parts can be found — with a brand spanning eighty years of models, that is the most practical question of all.

Across the whole power range gathered here, 11 to 120 kW, the ISO 730 three-point linkage spans Category 0 on the smallest post-war models to Category II on the stronger series; the 540 rpm PTO speed remained, across the decades, the unchanged common denominator of every Zetor generation.

Sources: SpecCodex register, model data: Zetor (weitere Modelle), Zetor

Technical data

Engine

Power59 kWcorrect
Cylinders4correct
Displacement4,560 cm³correct

Dimensions and weights

Length3,940 mmcorrect
Width2,450 mmcorrect
Unladen weight3,740 kgcorrect
Gross vehicle weight10,420 kgcorrect

Drivetrain and chassis

Gears16correct

Where this model stands

Power-to-weight ratio: 15.8 kW/t (59 kW / 3.7 t)

Power class: Universal (40–100 hp)

Stronger than 55% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Zetor 8011 CRYSTAL have?

The Zetor 8011 CRYSTAL delivers 59 kW.

How much does the Zetor 8011 CRYSTAL weigh?

The unladen weight is 3,740 kg.

What is the gross vehicle weight of the Zetor 8011 CRYSTAL?

10,420 kg.

What engine does the Zetor 8011 CRYSTAL have?

4 cylinders, 4,560 cm³ displacement.

What are the dimensions of the Zetor 8011 CRYSTAL?

3,940 mm × 2,450 mm.

When was the Zetor 8011 CRYSTAL built?

Production years: 1975-1977.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
