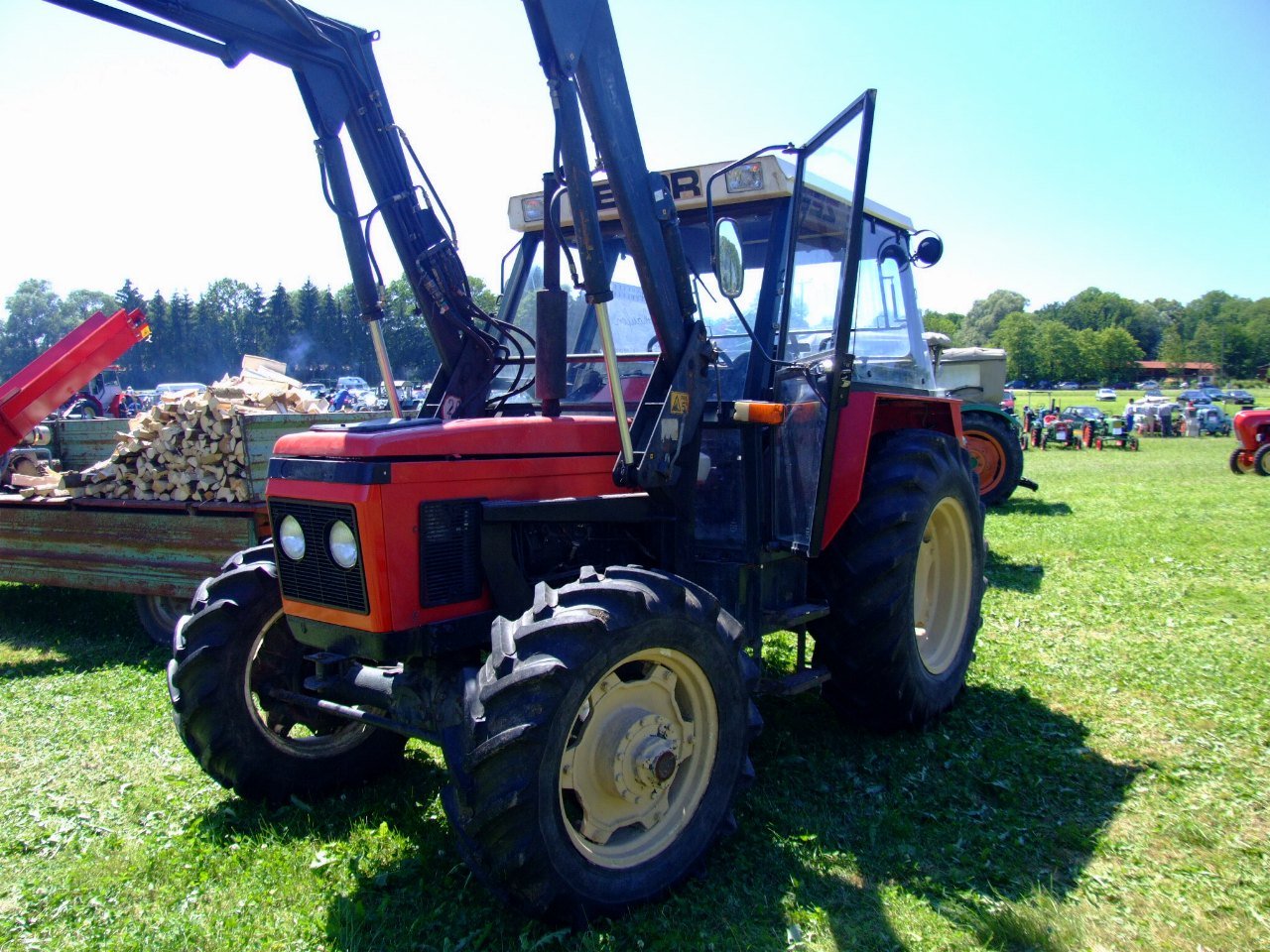

Zetor 7540
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Zetor 7540 is classified in the tractor group, with the production period not specified. It is a farm vehicle delivering 70 hp (51.5 kW) from a 4 156 cm³ engine with four cylinders. The transmission is offered either as 18 forward/6 reverse gears or 16 forward/4 reverse gears, and the nominal engine speed is 2 200 rpm. Maximum torque of 238 Nm is reached at a crankshaft speed of 540/1000 rpm. Overall length is 4 380 mm, height 2 670 mm, and the fuel tank holds 105 l. The power lift falls into category II.
With 70 hp the 7540 can provide sufficient pulling power for moderate field workloads, while the 238 Nm torque enables lifting of heavy implements. The choice between 18‑ or 16‑speed gearboxes allows flexible speed selection during field operations. A 105‑l fuel capacity supports long periods of work without frequent refuelling, advantageous on large fields. The relatively low height of 2 670 mm facilitates maneuvering under low obstacles.
The Zetor 7540 is suited for typical field tasks such as plowing, harrowing and sowing in medium‑size farms. Its size and the available gearbox options make it compatible with standard implements designed for tractors of this power class.
Zetor — where the name comes from and how the ranges connect, models from 11 to 120 kW, engines including Caterpillar, Perkins, Zetor and Deutz
The brand name is a compound: the "Z" of the Brno arms factory Zbrojovka and the ending "-tor". It was there, in March 1946, that the first three Z 25 tractors left the line — an eightieth anniversary in 2026.
Read on 4 more paragraphs
Order among the many Zetor types came in the 1960s with the unified UR I and UR II ranges. They brought more modern engineering and, above all, shared central components — the reason parts can be swapped across model boundaries. In the late 1960s the UR II joined the programme, designed for stronger machines and more demanding work.
Those lines still run today. The UR II range was revised and reached the market in 1998 as the Zetor Forterra. Around the turn of the millennium came the Proxima and Forterra ranges together with the modernised Major and Crystal — the generation carrying the brand through its recent history.
Anyone assessing an older model should therefore identify the base range first. A tractor from the UR II family is technically related to the Forterra, even with decades between them. That kinship decides how readily parts can be found — with a brand spanning eighty years of models, that is the most practical question of all.
Across the whole power range gathered here, 11 to 120 kW, the ISO 730 three-point linkage spans Category 0 on the smallest post-war models to Category II on the stronger series; the 540 rpm PTO speed remained, across the decades, the unchanged common denominator of every Zetor generation.
Sources: SpecCodex register, model data: Zetor (weitere Modelle), Zetor
Technical data
Engine
| Power | 70 hp (51.5 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 238 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
Dimensions and weights
| Length | 4,380 mmcorrect |
|---|---|
| Height | 2,670 mmcorrect |
Drivetrain and chassis
| Gearbox | 18 V/6 R or 16 V/4 Rcorrect |
|---|
Working data
| Fuel tank capacity | 105 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much power does the Zetor 7540 have?
The Zetor 7540 delivers 70 hp.
What engine does the Zetor 7540 have?
4 cylinders, 4,156 cm³ displacement.
What are the dimensions of the Zetor 7540?
4,380 mm × 2,670 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
