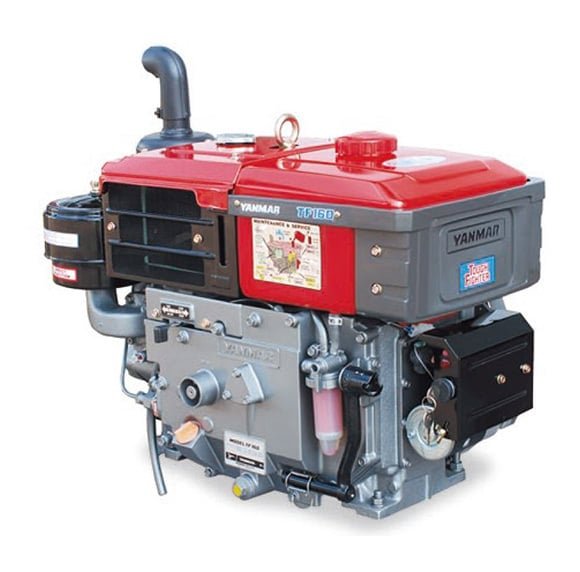

Yanmar TF120N-L
Series: TF-TS Series
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Yanmar TF/TS – industrial engine range: water-cooled single-cylinder diesel engines, TF70 to TF300 and TS190/TS230, one of the most-built small-diesel ranges worldwide
Yanmar of Osaka has built water-cooled diesel engines since the 1930s; the early TF models cooled without a pump via an open header tank on the thermosiphon principle, while later versions received a closed circuit with a radiator. The TF range is among the most-built small diesel engines in the world and was produced for decades in enormous numbers for irrigation pumps, threshers and simple farm machinery, chiefly across Asia and Africa. This page covers the TF range and the larger TS range on one joint range page; model suffixes such as N-L on TF120N-L or TF150N-L mark version variants within a given power step.
Read on 3 more paragraphs
The register lists here 9 versions: the single-cylinder TF70, TF90, TF120, TF120N-L, TF150N-L and TF160, as well as the larger TF300 and the equally single-cylinder TS190 and TS230. Output ranges from 5.1 to 22.1 kW (7 to 30 hp) at displacements of 382 to 1,472 cm³ and rated speeds between 2,200 and 2,400 rpm; all engines are water-cooled naturally aspirated single-cylinder units, with dry weight between 67.5 and 260 kg.
The TF range stands for the durable, easy-to-service small diesel that has, across generations, driven irrigation pumps, small boats and threshers in developing and emerging markets; the larger TS models extend the programme with more powerful single-cylinder units for power generation and larger pump installations.
When buying used, on the water-cooled TF engines, the tightness and corrosion condition of the water jacket matter, on older versions with an open header tank its fill level and freedom from rust, plus compression and oil consumption and a working glow-plug system; on the TS models, also crankshaft bearing play. Parts for the TF range, owing to its huge spread, are available worldwide even outside the official Yanmar network.
Sources: SpecCodex register, model data: Yanmar TF/TS-Series, Yanmar (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 15 hp (11 kW)correct |
| Cylinders | 1correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Dry weight | 108 kgcorrect |
|---|
Other data
| Aspiration | naturally aspiratedcorrect |
|---|---|
| Bore × stroke | 96x99correct |
| Dimensions | 784x377x530correct |
| Displacement | 716 lcorrect |
| Speed | 2,400 rpmcorrect |
Frequently asked questions
How much power does the Yanmar TF120N-L have?
The Yanmar TF120N-L delivers 15 hp.
What engine does the Yanmar TF120N-L have?
1 cylinders, Diesel.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
