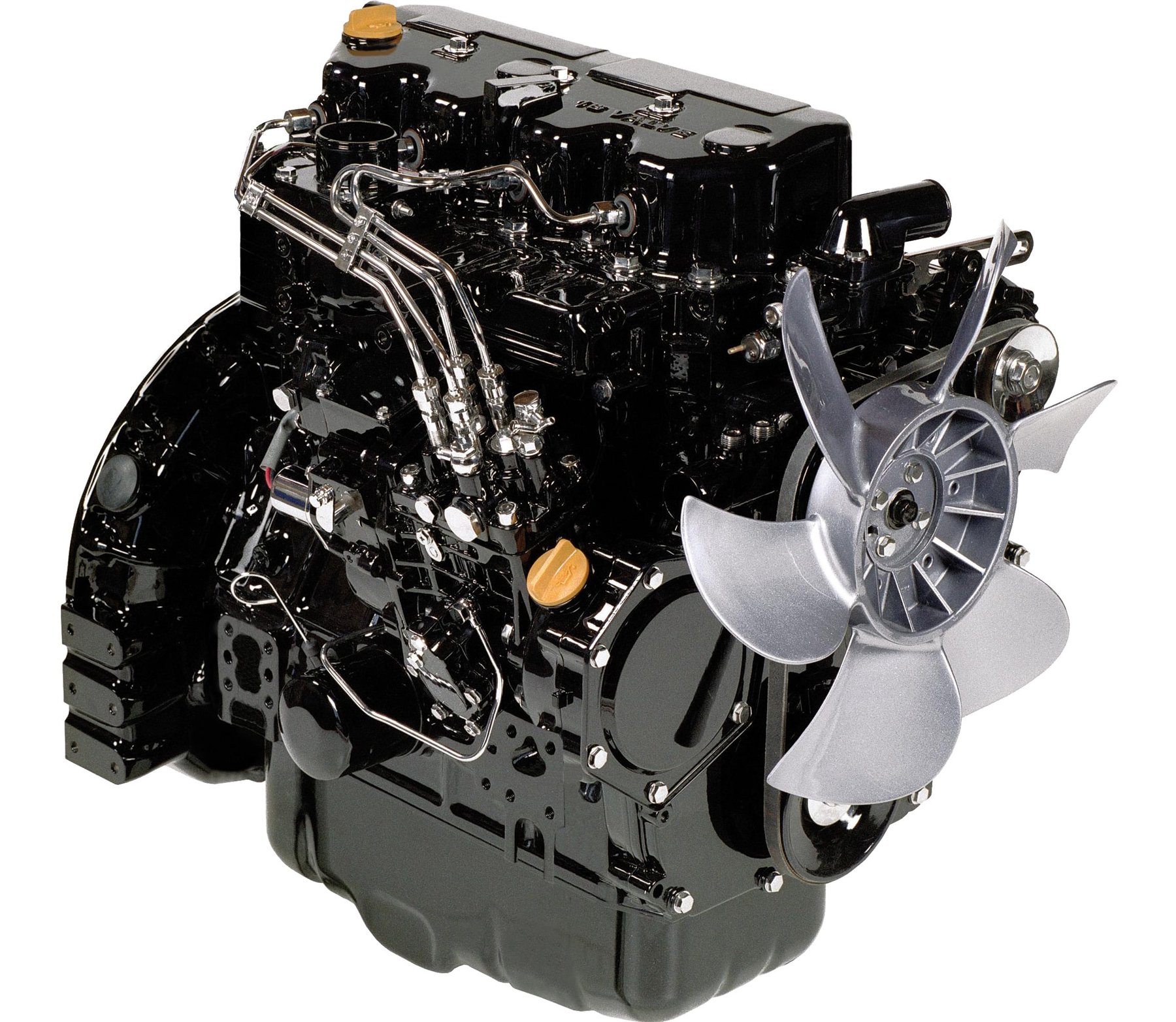

Yanmar Power Technology 4RHMQC

Built: 2022-2026 · Series: Other models

Source: https://aue-net.de/moteur-marin-diesel-yanmar-france/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Yanmar Power Technology 4RHMQC is a machine built by Yanmar Power Technology. Production: 2022-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 55 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar Power Technology range ranges from 5 to 160 kW; the 4RHMQC sits in the lower part of that range with 55 kW. Its immediate neighbours are the 3TTWP below it with 54 kW and the 4QHWAC above it with 70 kW. 631 Yanmar Power Technology models are on record. The model is listed under Non-road diesel engines. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine familyTYDXL02.1HKAcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output55 kWcorrect
Power band37<=kW<56correct
Rated speed2,600 rpmcorrect
Maximum torque268.3 N·mcorrect
Speed at max. torque1,690 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore86 mmcorrect
Stroke90 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Sales regionbothcorrect

Frequently asked questions

How much power does the Yanmar Power Technology 4RHMQC have?

The Yanmar Power Technology 4RHMQC delivers 55 kW.

When was the Yanmar Power Technology 4RHMQC built?

Production years: 2022-2026.
