Yanmar LX4900 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

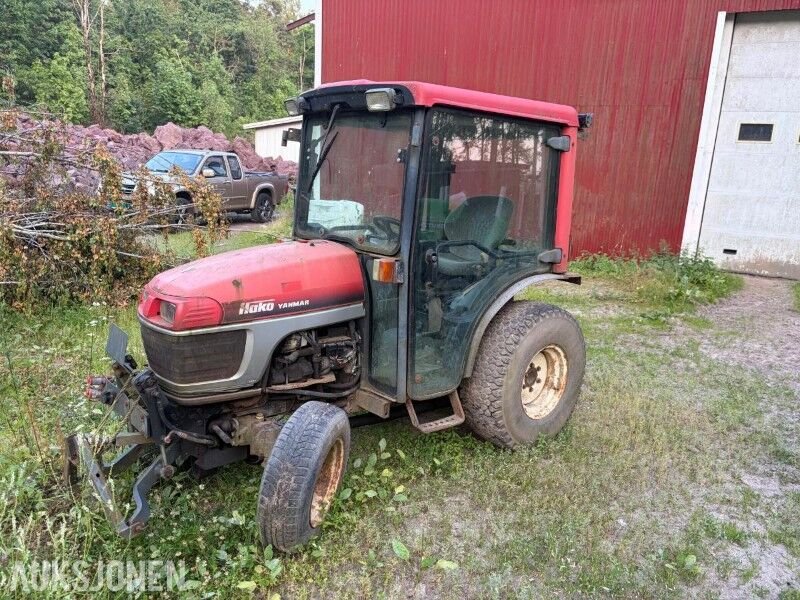

The Yanmar LX4900 is a tractor from the Yanmar Utility Tractor series. Power comes from a four-cylinder engine; from 2 litres it draws 49 hp (36.2 kW). Rated speed is 2,600 rpm.
It measures 3.15 m in length.
Within the range, rated power spans from 31.6 to 49.2 hp; with 49.2 hp, the LX4900 sits at the top. Below it ranks the LX4500 with 45.6 hp.
Technical data
Engine
| Power | 49.2 hp (36.2 kW)correct |
|---|---|
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,994.3 cm³correct |
Dimensions and weights
| Length | 3,149.6correct |
|---|---|
| Ground clearance | 421.9correct |
Working data
| Pump flow | 32.9 l/mincorrect |
|---|
Frequently asked questions
How much power does the Yanmar LX4900 have?
The Yanmar LX4900 delivers 49.2 hp.
What engine does the Yanmar LX4900 have?
4 cylinders, 1,994 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
