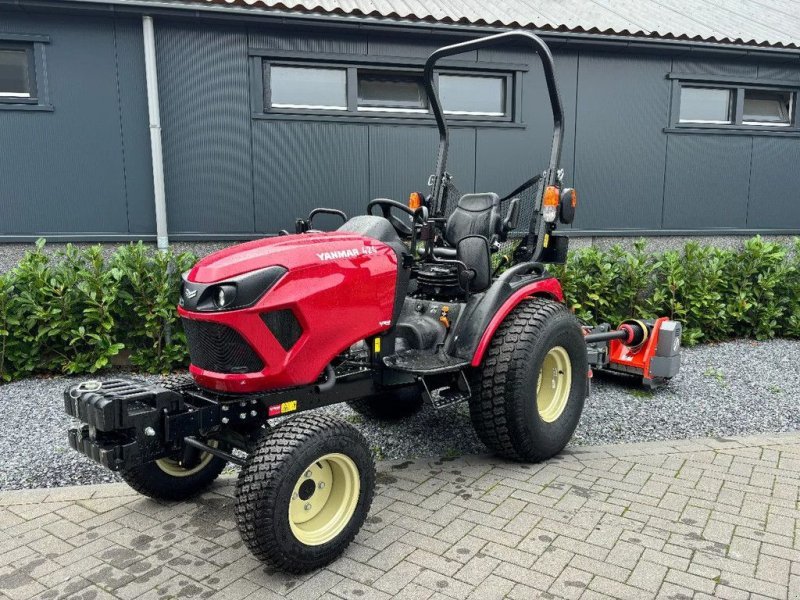

Yanmar 424 MFWD
Series: Other models
As a tractor, the Yanmar 424 belongs to the Yanmar MFWD Tractor series. It is powered by a three-cylinder engine producing 24 hp (16.2 kW). Rated power is reached at 3,200 rpm.
Dimensions are 2.69 m by 1.37 m. Wheelbase is 1.60 m.
Within the range, rated power spans from 21.8 to 24.2 hp; with 24.2 hp, the 424 sits at the top. Below it ranks the 221 with 21.8 hp.
Technical data
Engine
| Engine make | Yanmarcorrect |
|---|---|
| Engine model | 3TNV80Fcorrect |
| Fuel | dieselcorrect |
| Power | 24.2 hp (16.2 kW)correct |
| Rated speed | 3,200 rpmcorrect |
| Torque | 62.1correct |
| Cylinders | 3correct |
| Engine oil capacity | 3.4 lcorrect |
Dimensions and weights
| Length | 2,688.1correct |
|---|---|
| Width | 1,374.6correct |
| Wheelbase | 1,600.2correct |
| Ground clearance | 249.2correct |
Drivetrain and chassis
| Gearbox type | hydrostatic transmission Transmissioncorrect |
|---|
Working data
| Fuel tank capacity | 23.1 lcorrect |
|---|
Frequently asked questions
How much power does the Yanmar 424 have?
The Yanmar 424 delivers 24.2 hp.
What engine does the Yanmar 424 have?
3 cylinders, Diesel.
What are the dimensions of the Yanmar 424?
2,688 mm × 1,375 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
