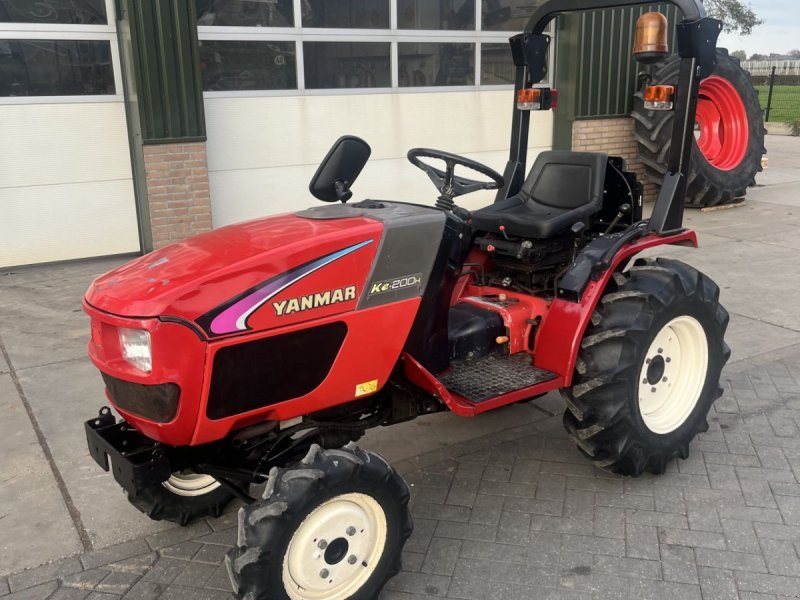

Yanmar KE-200H – specifications

Series: KE200

Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks) · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Yanmar KE-200H is a compact tractor from the KE200 series, belonging to the category of agricultural utility vehicles. This model is designed for users requiring a maneuverable machine for light to medium-duty tasks on the farm or in the garden. The design focuses on compact dimensions and low weight, enabling operation in confined spaces or on sensitive surfaces.

The tractor is powered by a three-cylinder engine with a displacement of 1,006 cm³, delivering an output of 20 hp. This engine configuration is sufficient for typical tasks such as towing trailers, mowing with attached implements, or light soil cultivation. The curb weight of 748 kg provides moderate traction without excessively compacting the soil. With a top speed of 21 km/h, the tractor is suitable for transport over short internal routes, while a ground clearance of approximately 270 mm allows it to overcome obstacles such as minor unevenness or vegetation. The dimensions of 2,715 mm in length and 1,196 mm in width underscore the machine's compactness.

Within the KE200 series, the KE-200H is positioned as the model with an output of 20 hp. It is particularly suited for tasks where agility and a small footprint are paramount. The combination of moderate weight and available power makes it a practical option for farm operations that do not require heavy tractors for their daily tasks. The fuel tank capacity of 22 l supports longer operating times without frequent refueling.

Versions of this model in the register

Each row is a separate entry with its own data. The figures on this page belong to the row marked ●.

VersionBuiltkWEU type approvalOrigin
● KE-200H ———Reference work (Wikipedia/Wikibooks)
Ke - 200H —14,9—Reference work (Wikipedia/Wikibooks)

Technical data

Engine

Power20 hpcorrect
Power20 hpcorrect
Cylinders3correct
Displacement1,006 cm³correct

Dimensions and weights

Length2,715 mmcorrect
Width1,196 mmcorrect
Height2,192 mmcorrect
Wheelbase1,743 mmcorrect
Ground clearanceca. 270 mmcorrect
Unladen weight748 kgcorrect

Drivetrain and chassis

Top speed21 km/hcorrect

Working data

Fuel tank capacity22 lcorrect

Where this model stands

Power-to-weight ratio: 19.7 kW/t (15 kW / 0.7 t)

Power class: Compact (< 40 hp)

Stronger than 7% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Yanmar KE-200H have?

The Yanmar KE-200H delivers 20 hp.

How much does the Yanmar KE-200H weigh?

The unladen weight is 748 kg.

What engine does the Yanmar KE-200H have?

3 cylinders, 1,006 cm³ displacement.

How fast does the Yanmar KE-200H go?

Top speed is 21 km/h.

What are the dimensions of the Yanmar KE-200H?

2,715 mm × 1,196 mm × 2,192 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.
