Yanmar C30R-3
Series: C30R-3
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

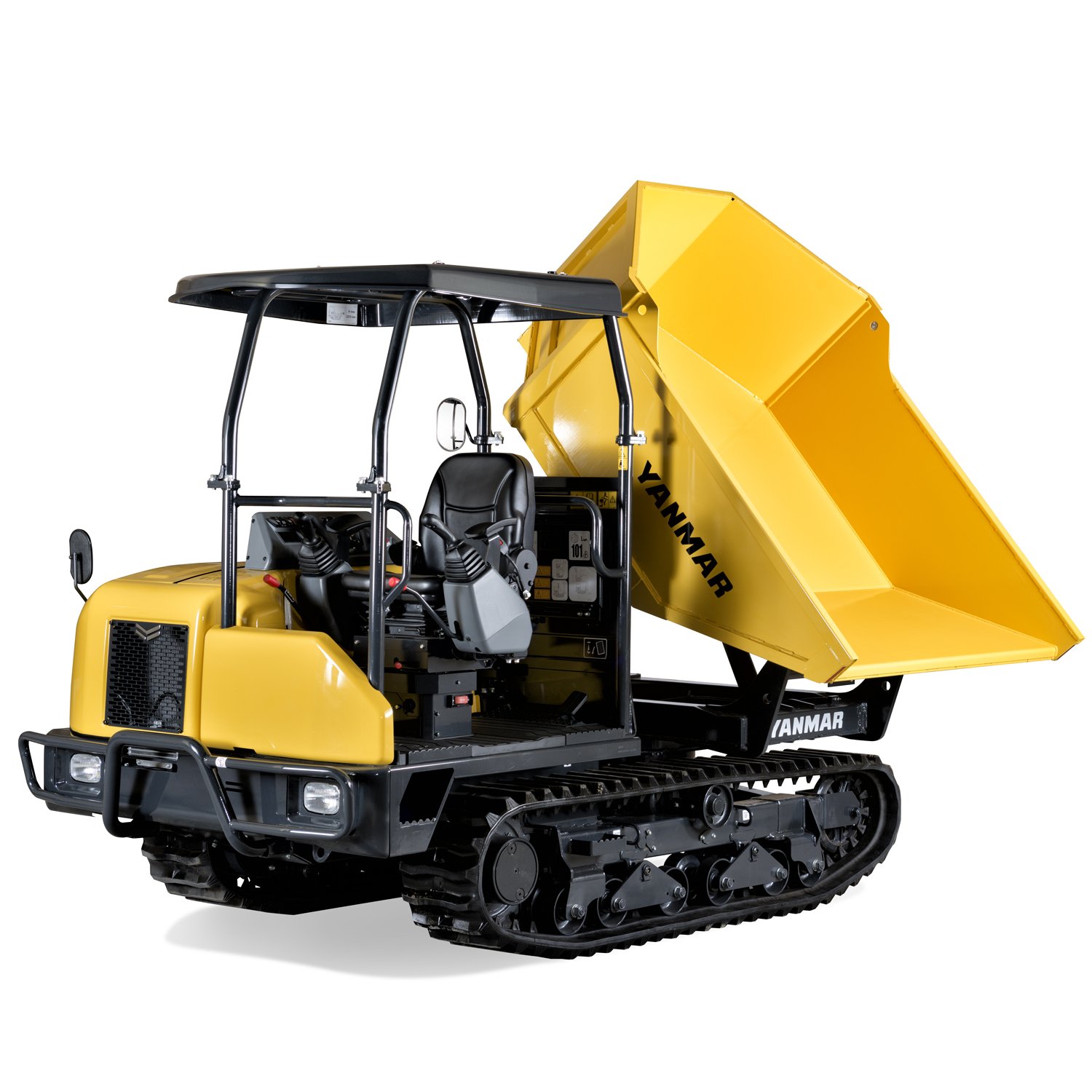

Yanmar C30R-3: crawler carrier from the Japanese manufacturer with a 2,500 kg payload, a four-cylinder diesel engine of 2.189 l displacement, 46.6 hp and two travel speed ranges
Yanmar is a Japanese manufacturer based in Osaka, known worldwide for diesel engines as well as compact construction machinery and tractors. The C30R-3 is a larger crawler carrier from that range, built for hauling heavier loads at municipal depots, in landscaping work and on ground too soft or too steep for wheeled vehicles.
Read on 3 more paragraphs
The C30R-3 is powered by a four-cylinder diesel engine, type 4TNV88C-KFW, with 2.189 l displacement, producing 46.6 hp, or 34.3 kW. Payload capacity is 2,500 kg, and operating weight, depending on the body fitted, is 2,650 kg with the standard vessel or 2,865 kg with the turning vessel. Height is 2,310 mm and width 1,550 mm. Travel speed is 11 km/h in the high range and 5.7 km/h in the low range.
Two travel ranges are common on crawler carriers of this size: the low range delivers the pulling force needed on steep ramps and soft ground, while the high range cuts travel time on hard surfaces between the loading point and the tipping point. With a 2,500 kg payload, the C30R-3 covers a noticeably larger transport need than smaller crawler carriers and suits earth spoil, paving material or green waste volumes.
When buying used, as with any crawler carrier, the condition of the rubber tracks, rollers and drive wheels matters, since wear there directly reduces pulling force. The four-cylinder engine should be checked for smooth running in both travel ranges, and the turning vessel additionally for play in its pivot bearing and for leak-free hydraulic cylinders for tipping and turning.
Sources: SpecCodex-Register: Kennwerte des Modells Yanmar C30R-3, Yanmar (manufacturer)
Technical data
Engine
| Engine model | 4TNV88C-KFWcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 46.6 hp (34.3 kW)correct |
| Cylinders | 4correct |
Dimensions and weights
| Width | 1,550 mmcorrect |
|---|---|
| Height | 2,310 mmcorrect |
Other data
| Displacement | 2,189 lcorrect |
|---|---|
| Operating weight | 2650 (Standard vessel) / 2865 (Turning vessel)correct |
| Payload | 2,500 kgcorrect |
| Travel speed | 11 (high) / 5.7 (low)correct |
Frequently asked questions
How much power does the Yanmar C30R-3 have?
The Yanmar C30R-3 delivers 46.6 hp.
What engine does the Yanmar C30R-3 have?
4 cylinders, Diesel.
What are the dimensions of the Yanmar C30R-3?
1,550 mm × 2,310 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
