Yanmar 4TN98S
Series: TN-S Series
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

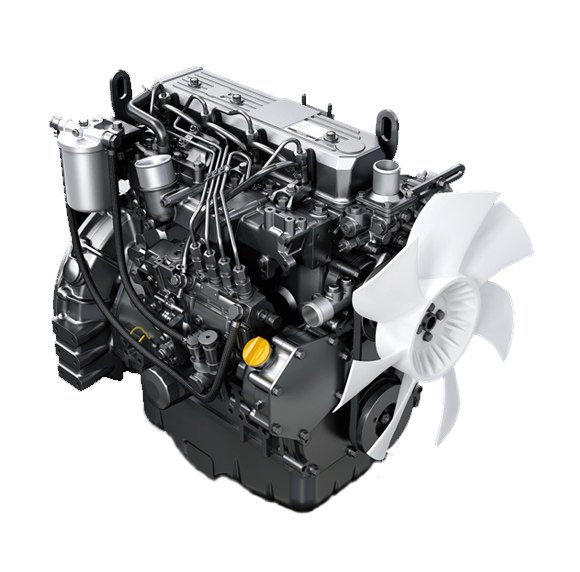

Yanmar 4TN98S – water-cooled four-cylinder diesel engine of the TN-S series with 3,319 cm³ displacement, 36.3 kW/49.4 hp at 2,100 rpm, long-stroke design, certified to Indian CEV and Bharat Stage III/IIIA norms
In the TN-S series, Yanmar supplies mid-size industrial diesel engines certified chiefly for the Indian market; the 4TN98S carries the local CEV emission approval and Bharat Stage III, or Bharat Stage IIIA for tractors.
Read on 3 more paragraphs
The engine is a naturally aspirated, water-cooled four-cylinder unit of 3,319 cm³ displacement with a bore of 98 mm and a stroke of 110 mm – the stroke clearly exceeds the bore, making it a long-stroke design, as is typical of low-speed farm-machinery engines. It delivers 36.3 kW or 49.4 hp at 2,100 rpm, weighs 235 kg dry and measures 740 x 495 x 750 mm.
Certification to CEV (Central/Construction Equipment Vehicles) and Bharat Stage III, or Stage IIIA for tractors, places the engine within India's own emission rules for nonroad and agricultural engines, which apply independently of the European Stage and American Tier norms. The low rated speed of 2,100 rpm combined with relatively large displacement is typical of engines built for pulling power and durability rather than high revs, as needed in tractors and stationary farm machinery.
When buying a naturally aspirated four-cylinder of this size used, the first checks are the condition of the injection pump, compression and oil consumption, since non-turbocharged engines tend to show wear through falling compression rather than lost boost pressure. The radiator, water pump and cylinder head gasket should be checked for leaks, and with an engine certified for the Indian market it is worth checking the availability of local spare parts outside its home region.
Sources: SpecCodex-Register: Kennwerte des Modells Yanmar 4TN98S
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 49.4 hp (36.3 kW)correct |
| Cylinders | 4correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Dry weight | 235 kgcorrect |
|---|
Other data
| Aspiration | naturally aspiratedcorrect |
|---|---|
| Bore × stroke | 98x110correct |
| Dimensions | 740x495x750correct |
| Displacement | 3,319 lcorrect |
| Emission stage | CEV Bharat Stage III / Bharat Stage IIIA (Tractor)correct |
| Speed | 2,100 rpmcorrect |
Frequently asked questions
How much power does the Yanmar 4TN98S have?
The Yanmar 4TN98S delivers 49.4 hp.
What engine does the Yanmar 4TN98S have?
4 cylinders, Diesel.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
